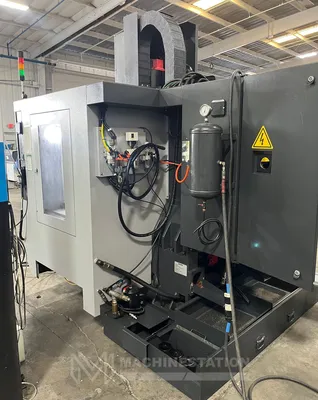

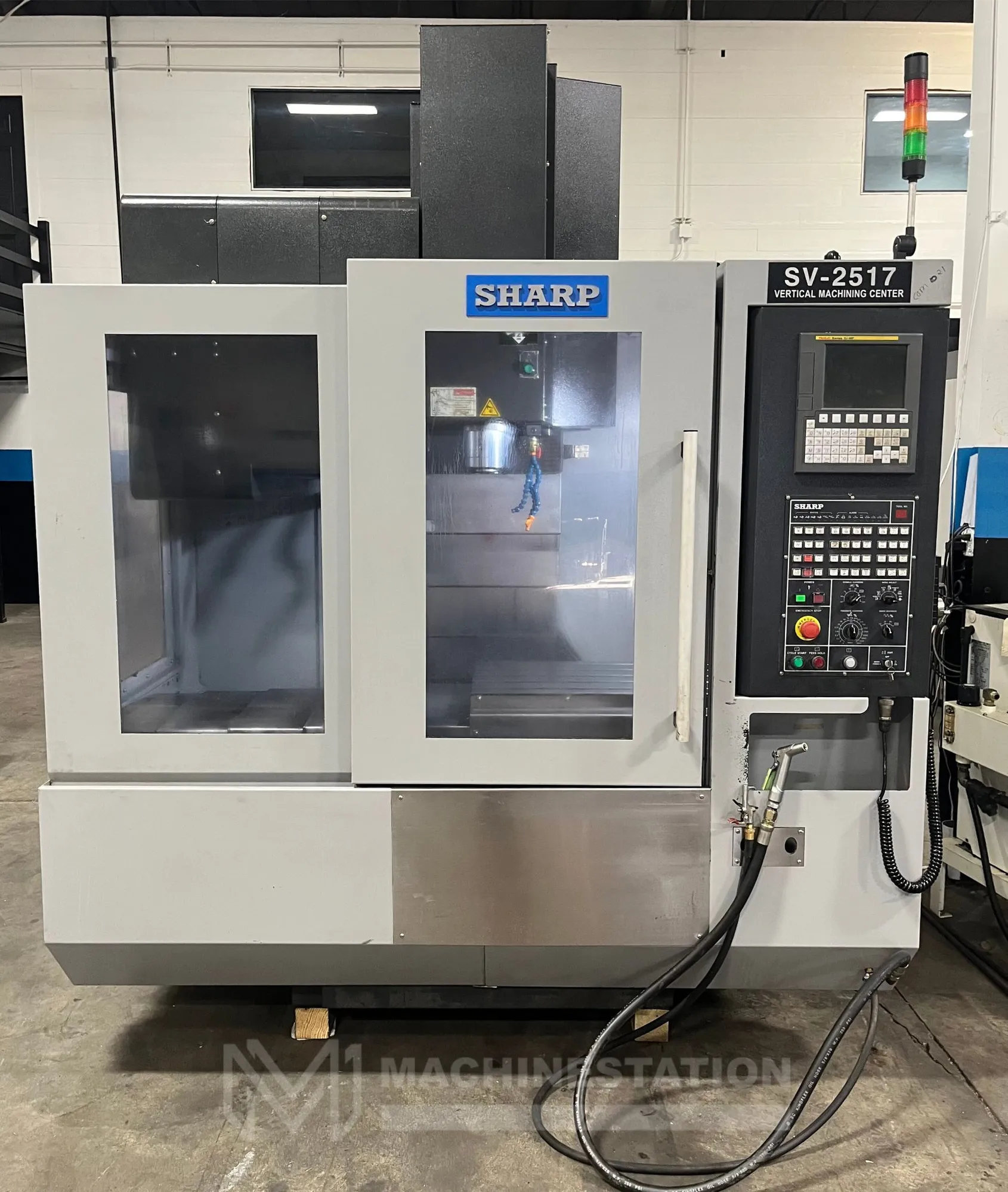

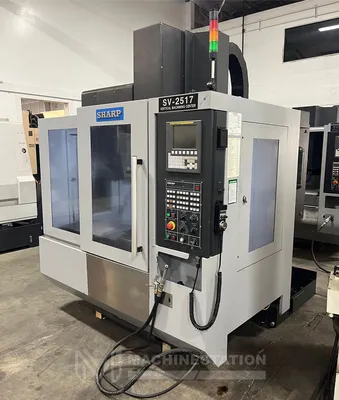

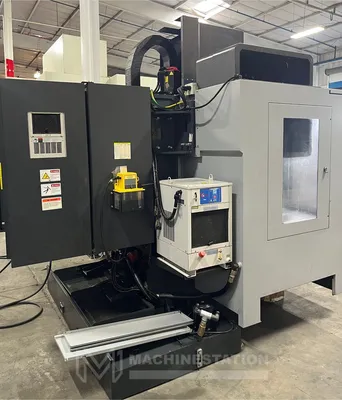

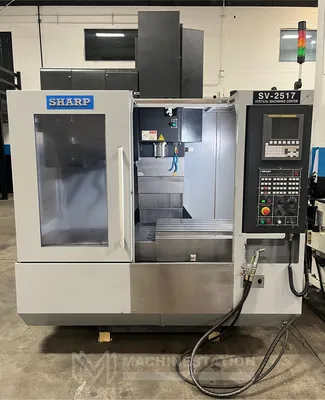

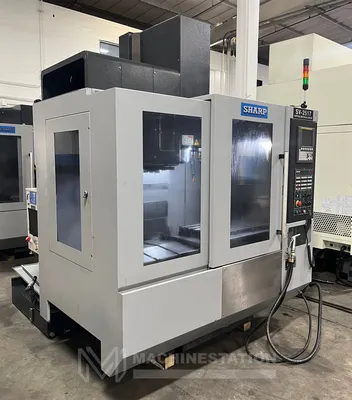

USED 2018 SHARP SV-2517 SX-F

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

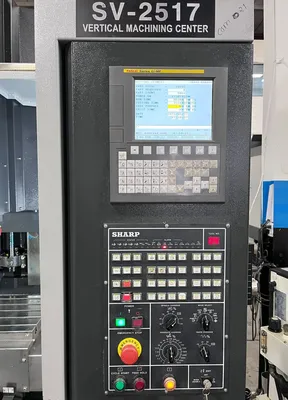

Fanuc 0i-MF CNC Control

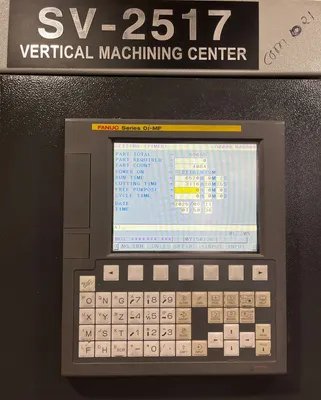

3,116 Hours Cutting Time
Box Way Construction All Axis
10 HP Spindle Motor
USB Port
PCMCIA Card Slot

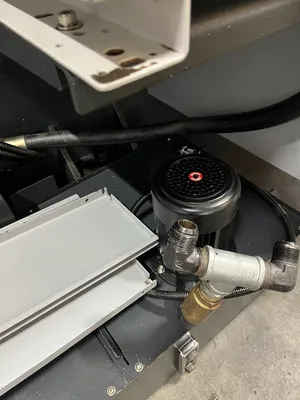

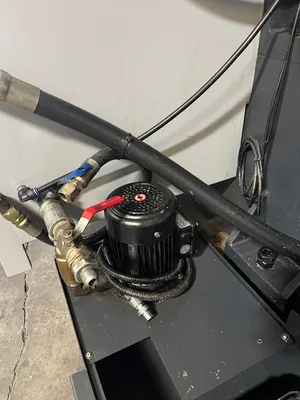

Coolant System

Travels:
X-Axis: 25.2″
Y-Axis: 16.9″
Z-Axis: 18.1″
Rapid Traverse Rates: 787 IPM
Cutting Feed Rates: 394 IPM
Spindle Nose to Table (Min.- Max.): 3.1″ – 21.2″

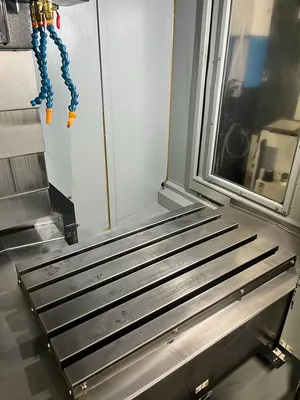

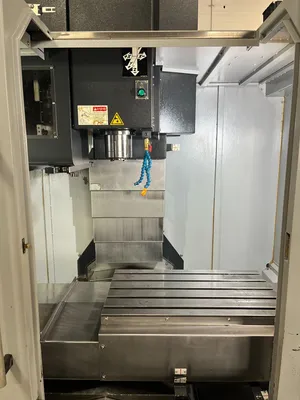

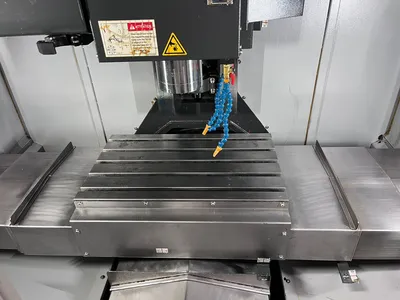

Table
Length: 27.5″
Width: 16.5″
T-slot (no. x width x pitch): 5 x 0.7″ x 3.14″
Max Weight on Table: 660 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 10 HP

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 15.4 lbs
Max Tool Dia: 2.9″ – 5.9″
Max Tool Length: 11.8″

General:
Air Required: 80 psi, 4 scfm

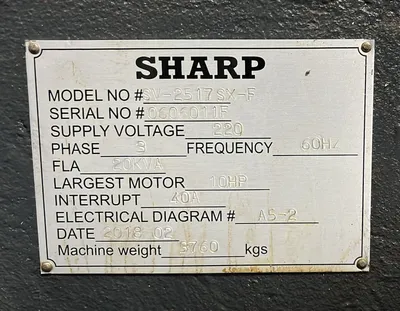

Power: 220v / 60 Hz / 3-Phase
Overall Dimensions: 79″ x 101″ x 100″ High Approx.
Weight: 8,272 lbs Approx.

12,000 RPM High Speed Spindle
24 Station Side Mounted Automatic tool changer
CAT-40 Taper Spindle
Rigid Tapping
MPG Handwheel Control
Chip Tray
Levelling Pads
