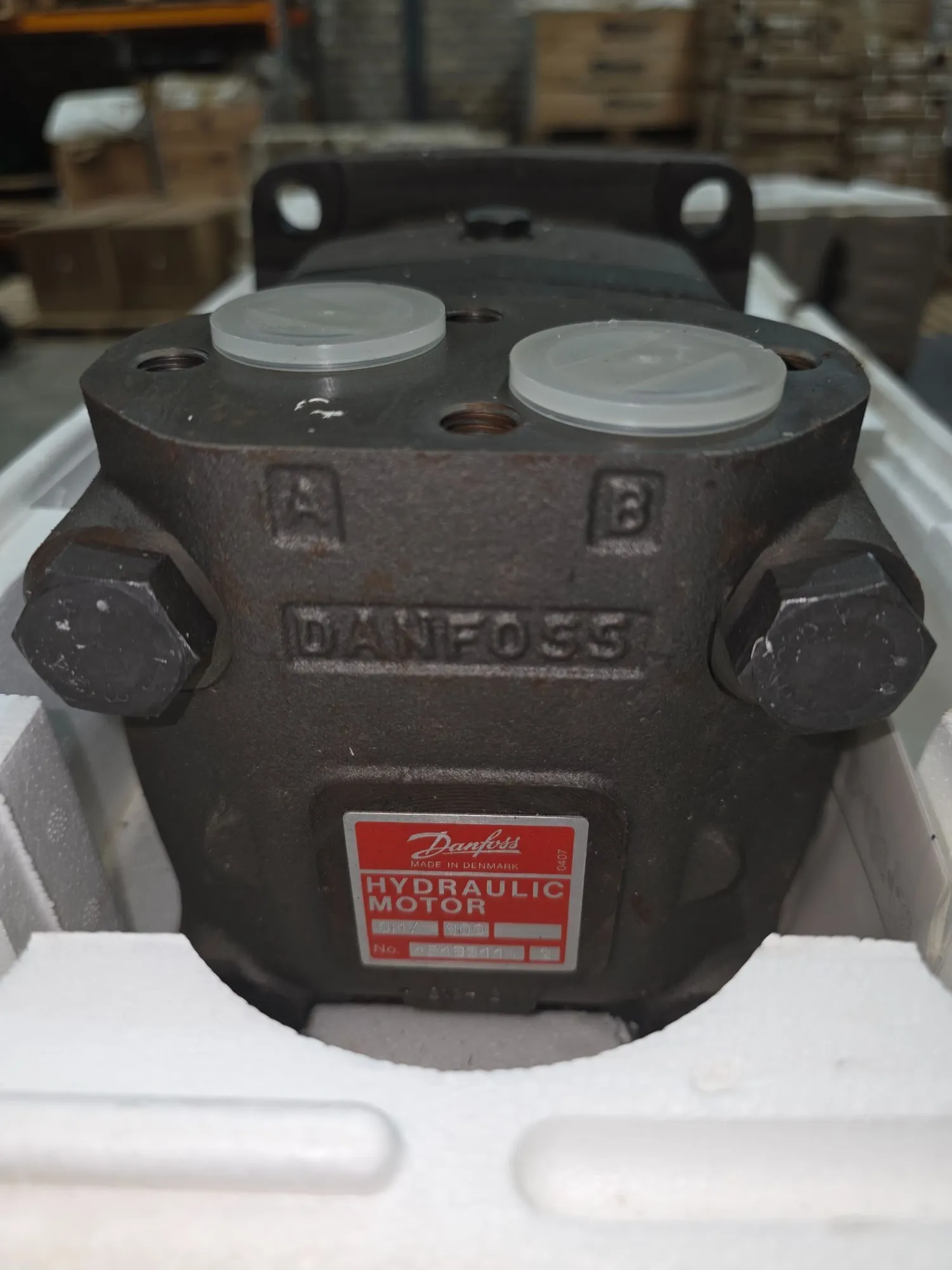

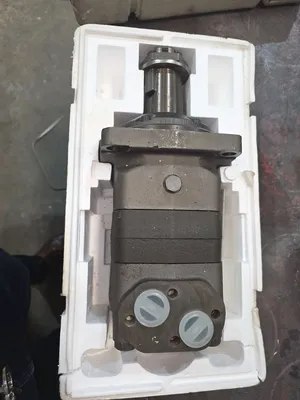

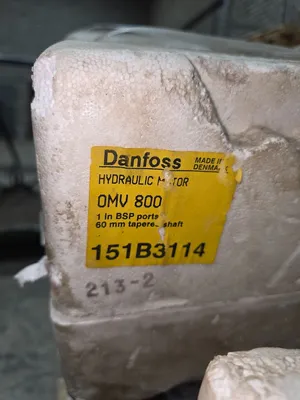

USED 2025 DANFOSS 151B3114

Danfoss
151B3114
Model code: OMV-0800-A-NN-G34-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Product details

Model Code
OMV-0800-A-NN-G34-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series
OMV Series
Valve system
Disc valve with valve drive
Orbital gearwheel set type
Geroler
Motor Size
800
Geometric displacement [cm3/r [in3/r]]
801.8 [48.93]
Motor type
Standard
Motor function
Standard
Mounting flange type
4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]
160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71]
Shaft type
TAPERED
Shaft dimension
Dia. 60 mm, 1:10, 3 x M42 thread in shaft end
Shaft Key
Rectangular key, B16 x 10 x 32 mm, DIN 6885
Main port thread type
BSP
Main port style
Sideport - staggered
Main port dimension
G 1, 4 x M12 block mounting threads
Drain Port Dimension
G 1/4
Brake Release Port Dimension
n/a
Painted
No
Paint information
n/a
Special features hardware
Standard
Special Features Assembly
Standard
Dust seal
Standard
Shaft Seal
NBR - Standard
Seal Kit
151B0129
Front bearing type
Tapered roller bearing
Rear bearing type
Tapered roller bearing
Orbital gearwheel set
Standard
Check valve function
Yes
Hydraulic valve function
None
Sensor
None
Packaging
Single pack
Name Tag
Danfoss name tag
Design code
2
