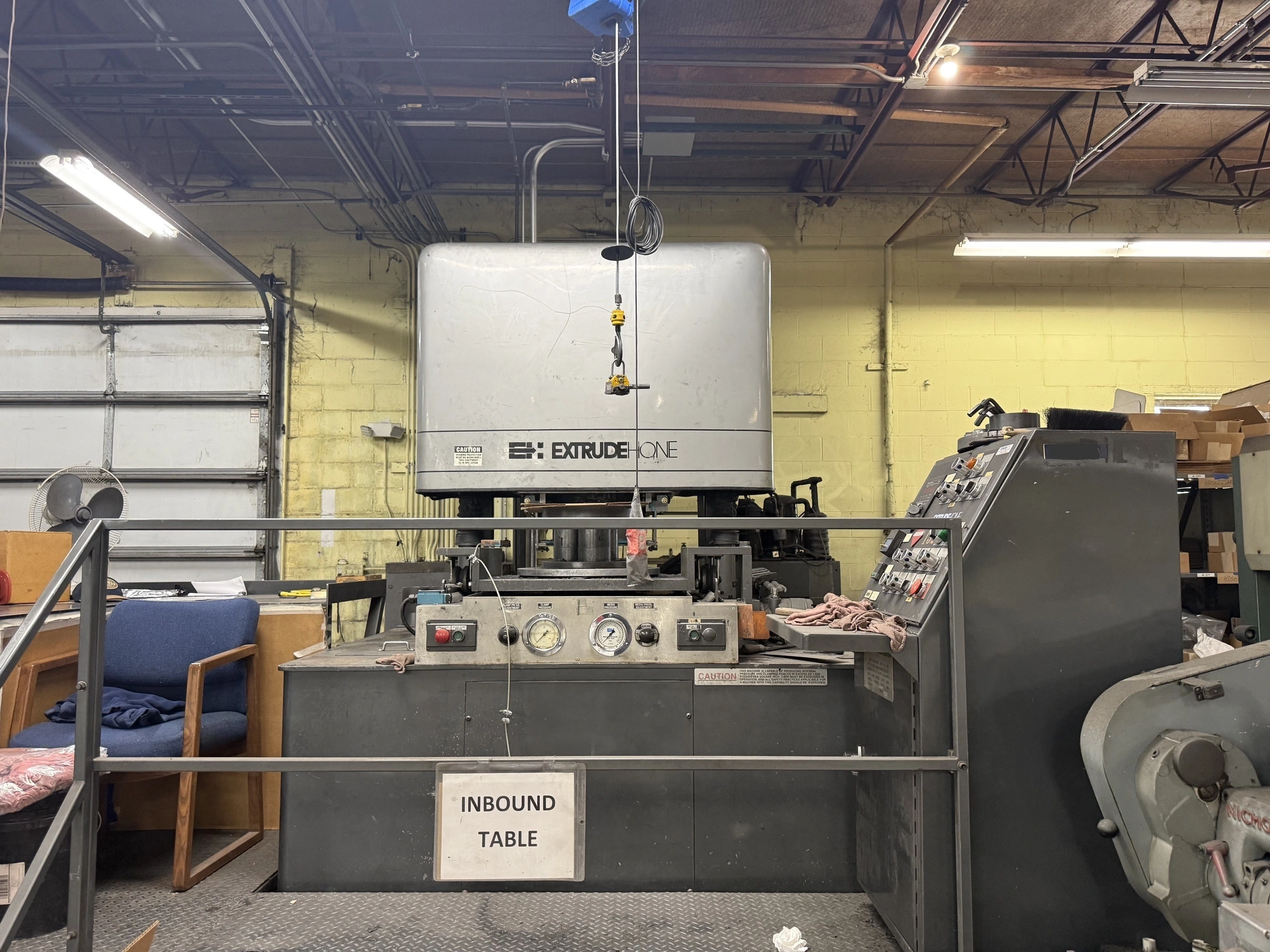

USED EXTRUDE HONE SPECTRUM 10/8

DESCRIPTION:
The Extrude Hone machine cycles an abrasive media through the workpiece
for deburring and/ or polishing the desired edges and/ or surfaces.
The workpiece or fixture load of workpieces is placed between the lower and upper media cylinders.
When the "clamp close" buttons are depressed simultaneously, the head of the
machine closes and securely clamps the fixture in position.
The media is hydraulically forced from the lower media cylinder up through
the fixture into the upper media cylinder. The media is then forced hydraulically
from the upper media cylinder down through the fixture and back into the lower
media cylinder, comprising one cycle. The number of cycles required per application
depends on media selection, operating pressure, and the workpiece and tooling configuration

MACHINE
Maximum Opening...................28.75"
Distance Between Clamp rods.......30.75"
Work Table........................63.5" x 69" x 47.5"
Machine Height Open...............125.75"
Machine Height Closed.............97.75"
Machine Weight....................8,300 LBS

HYDRAULIC SYSTEM
Hydraulic Cylinder Diameter.......8"
Pressure..........................350 - 1600 PSI
Pump Capacity.....................15 GPM
Max. Clamp Force at 1800 PSI......146,242 LBS
Hydraulic Power Unit Dimensions...48" x 51" x 36"
Hydraulic Power Unit Weight.......1,200 LBS

ELECTRICAL SYSTEM
Connection Voltage................220V
Motor.............................20 HP
Peak Amperage.....................14.6 Amps

MEDIA SYSTEM
Media Cylinder Diameter...........10"
Media Cylinder Capacity...........982 Inches3
Pressure Range....................250 - 1150 PSI
Delivery Capacity.................23.5 GPM

SP 10/8 ls the code reference placed on the media and hydraulic cylinder sizes.
"10" represents a 10" media cylinder; "8" represents an 8" hydraulic cylinder.

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
