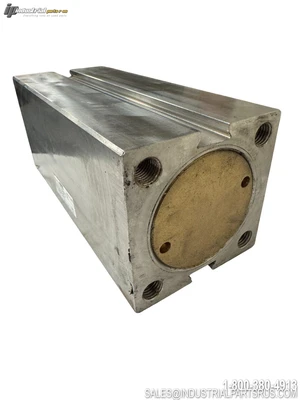

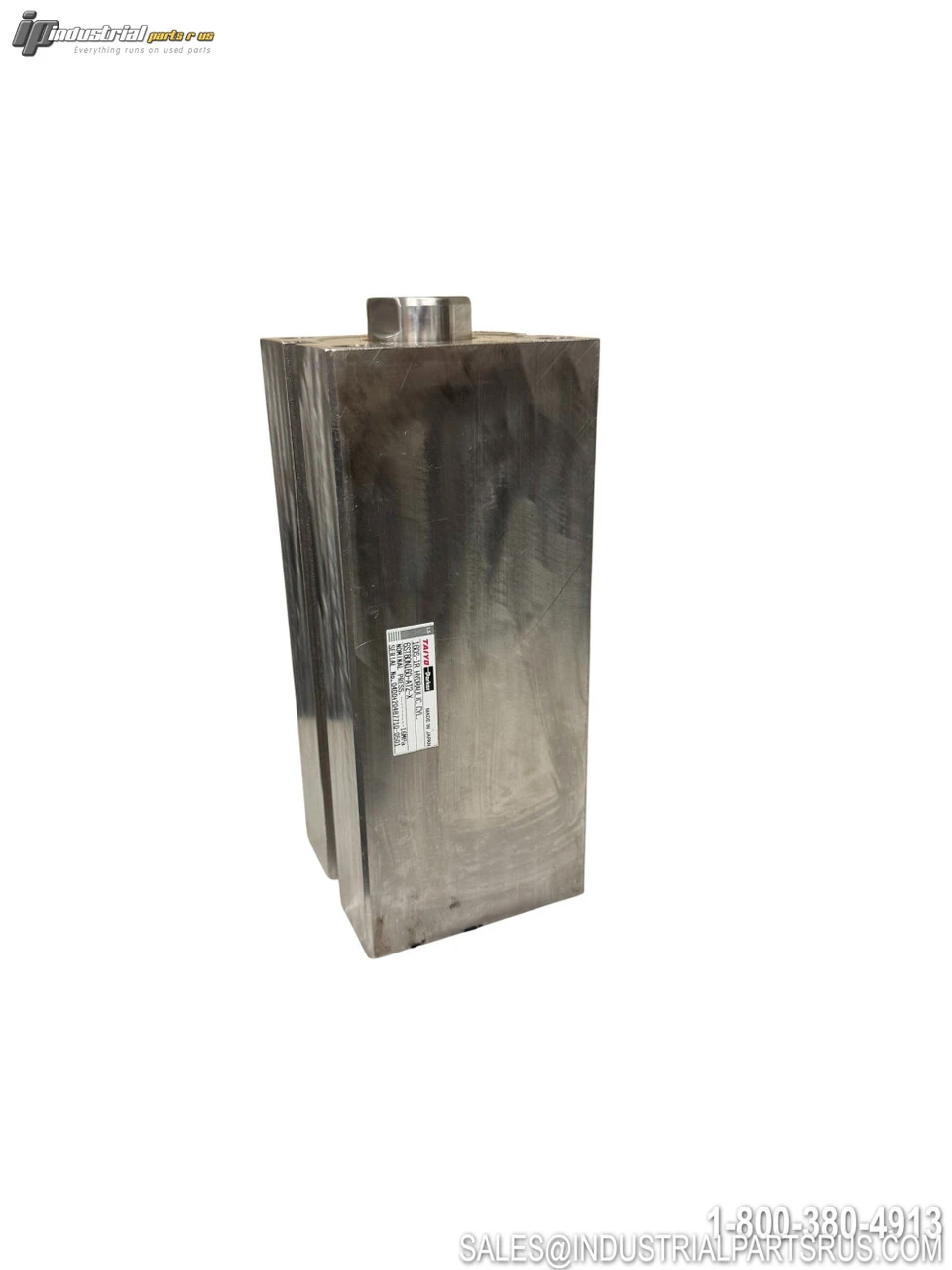

USED TAIYO 160S-1R

The Taiyo 160S-1R is a space-saving, compact design double-acting single-rod hydraulic cylinder from Taiyo's 160S-1 Series, engineered for high-force applications where mounting space is limited. It operates at a nominal pressure of 16 MPa and is rated for up to 10 million cycles. The cylinder features an abrasion-resistant hydrogenated nitrile rubber (HNBR) packing as standard, a special copper alloy rod gland, and a carbon steel body, making it suitable for demanding industrial machine tool environments. Bore sizes range from 20 mm to 125 mm with configurable stroke lengths to suit a wide range of applications.
Specification
Value
Brand
Taiyo
Model / Series
160S-1R
Cylinder Type
Double Acting, Single Rod
Nominal Pressure (Max Operating)
16 MPa (160 bar / ~2,320 PSI)
Proof / Test Pressure
24 MPa
Minimum Operating Pressure
0.3 MPa
Piston Speed (Operating)
8 – 100 mm/s
Temperature Range (Standard Type)
-10°C to +120°C
Temperature Range (AX/AZ Switch Set)
-10°C to +70°C
Temperature Range (WR/WS Switch Set)
-10°C to +60°C
Seal / Packing Material
Hydrogenated Nitrile Rubber (HNBR) — Standard
Cylinder Body Material
Carbon Steel for Machine Structure
Rod Gland Material
Special Copper Alloy
Suitable Working Fluid
Petroleum-Based Hydraulic Oil
Available Bore Sizes
20, 25, 32, 40, 50, 63, 80, 100, 125 mm (configurable)
Mounting Style (Standard)
SD (Foot / Side Mount); LD, FA, ST available
Port Thread Options
Rc (Tapered) or G (Straight) thread
Rod End Thread Options
Female thread or Male thread
Switch Compatibility
AX, AZ (standard); WR, WS (cutting fluid proof type)
Rated Cycle Life
Up to 10,000,000 cycles at 16 MPa
Design Standard
JIS B8367 / Space-Saving Compact Design
Variant Note
"R" = Standard single-rod type (160SW-1R = Cutting Fluid Proof type)
We warranty all items for 30 days from date of purchase.
