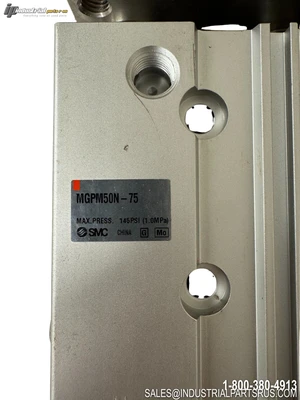

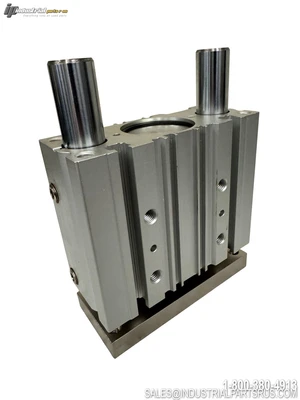

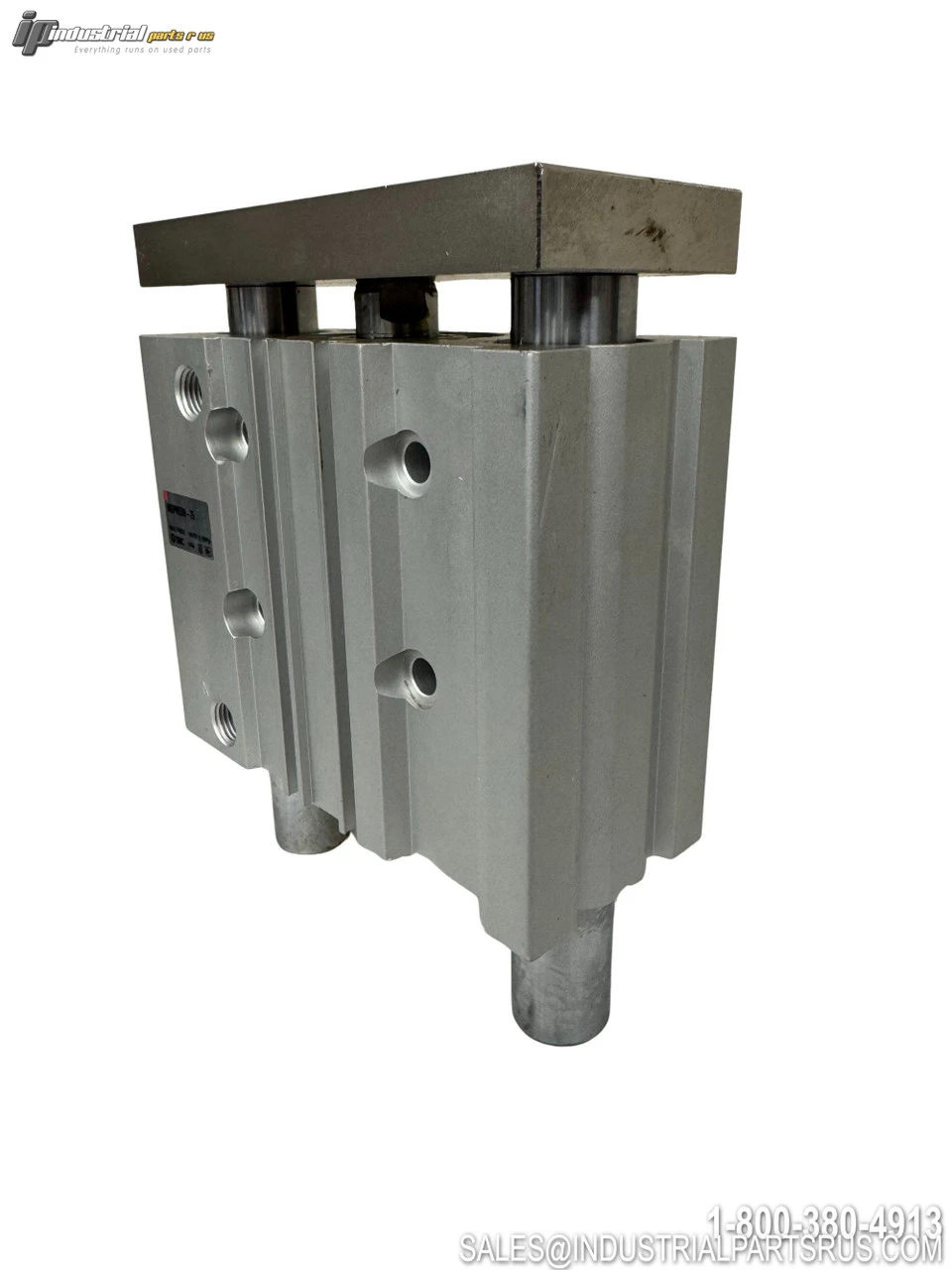

USED SMC MGPM50N-75

The SMC MGPM50N-75 is a compact guide cylinder from SMC's MGP Series, featuring a 50mm bore and 75mm stroke with a carbon steel alloy slide bearing. It integrates internal guide shafts to isolate load bearing from the movement of the actuator's rod and seals, providing excellent lateral stability and resistance to side load impacts. This double-acting cylinder is designed for high side load applications in material handling, lifting, stopping, and automation environments.
Specification
Value
Brand
SMC
Model / Part Number
MGPM50N-75
Series
MGP
Cylinder Type
Compact Guide Cylinder – Slide Bearing (MGPM)
Bore Diameter
50 mm
Stroke Length
75 mm
Action
Double Acting
Fluid
Air
Maximum Operating Pressure
1.0 MPa (145 psi)
Minimum Operating Pressure
0.1 MPa (14.5 psi)
Proof Pressure
1.5 MPa (218 psi)
Piston Speed
50 – 500 mm/s
Port Size
Rc 1/4"
Number of Ports
2
Bearing Type
Carbon Steel Alloy Slide Bearing
Guide Rod Diameter
25 mm / 30 mm (dual guide rods)
Piston Rod Size
18 mm / 25 mm
Seal Material
NBR (Nitrile Rubber)
Cushion
Rubber Bumper (both ends)
Lubrication
Not Required (non-lube)
Non-Rotating Accuracy
±0.05° (50mm bore)
Ambient / Fluid Temperature
-10°C to +60°C
Mounting Style
Basic (top / T-slot side mounting)
Auto Switch
None (N suffix – no switch)
Built-in Magnet
Yes (auto switch mountable)
Plate Material
Carbon Steel
Application
Material handling, lifting, stopping, automation
We warranty all items for 30 days from date of purchase.
