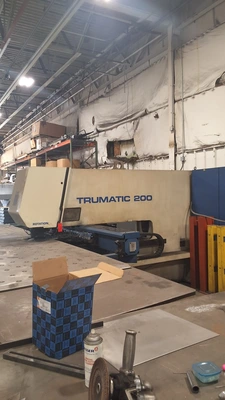

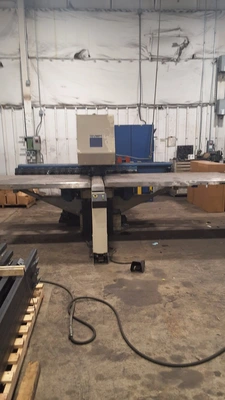

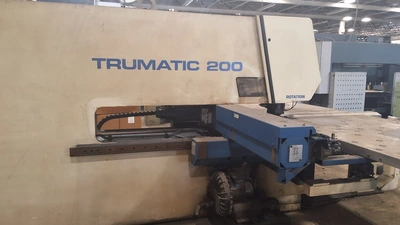

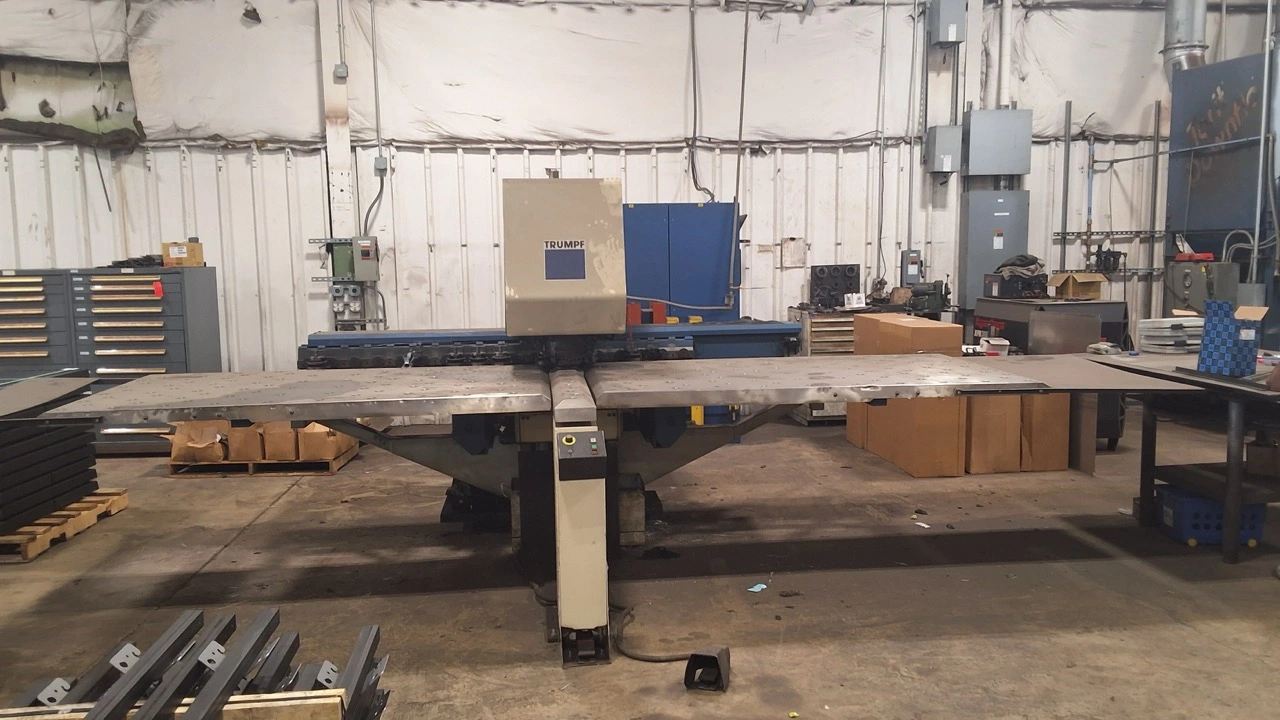

USED 1996 TRUMPF TRUMATIC 200
Overview
Specs
Capacity: 20 Ton
Punching Force: 20 Tons
Maximum Sheet Size: 49.2″ × 98.4″
Maximum Sheet Thickness: 0.252″ (6.4 mm)
Maximum Punch Diameter: 3″ (76.2 mm)
X-Axis Travel: 81.5″ (2,070 mm)
Y-Axis Travel: 50.4″ (1,280 mm)
Maximum Workpiece Weight: 330 Lbs. (150 kg)
Positioning Speed X-Axis: 262 IPM (80 m/min)
Positioning Speed Y-Axis: 180 IPM (55 m/min)
Simultaneous Positioning Speed: 318 IPM (97 m/min)
Stroke Rate: 500 Hits Per Minute
Tool Capacity: 15 Automatic Stations
Control: Bosch Trumagraph CC220S
Electrical: 460V, 3 Phase, 14 kVA
Machine Dimensions: 19.7′ X 18.4′ X 6.8′
Approximate Weight: 18,000 Lbs.
Equipped With:

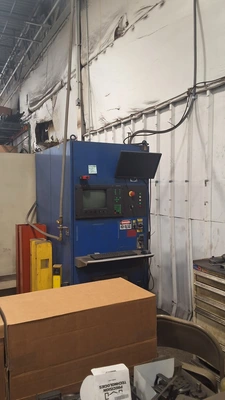

Bosch Trumagraph CC220S CNC Control
15-Station Automatic Tool Changer
Automatic Clamp Repositioning
Programmable C-Axis Tool Rotation
Hydraulic Punching System
Safety Light Curtains
