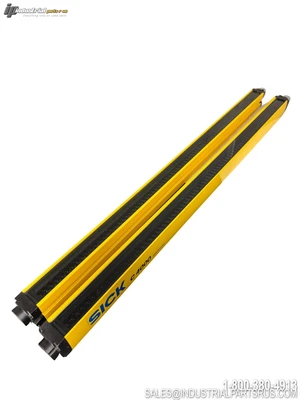

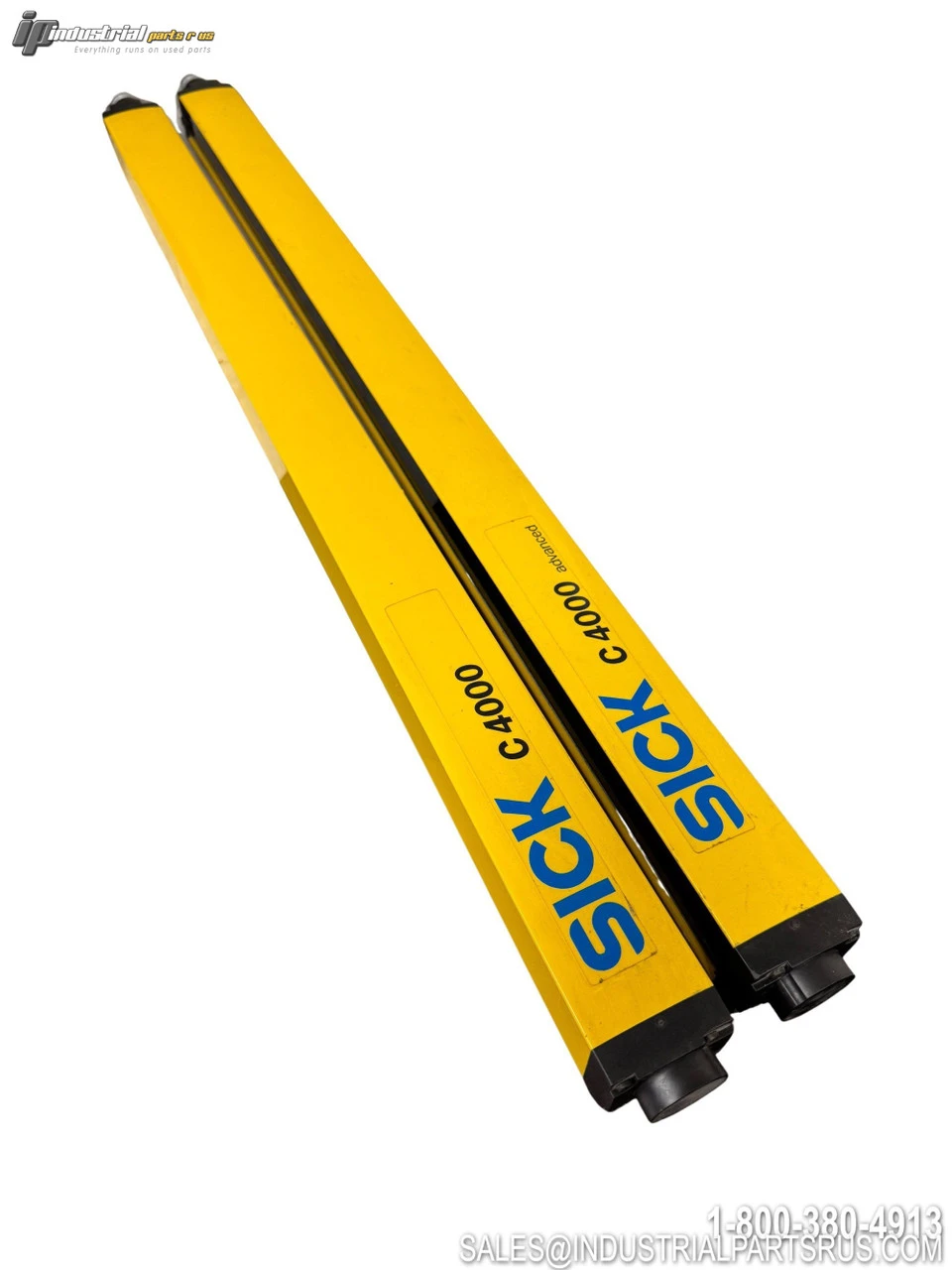

USED SICK C40S-0702CA010

This listing includes the COMPLETE SET with both emitter and receiver units.
The Sick C40S-0702CA010 is the
sender unit
of the C4000 Advanced safety light curtain system, providing reliable electro-sensitive protective equipment (ESPE) for hazardous point and area guarding. It features a 750 mm protective field height, 20 mm resolution, and a maximum scanning range of 21 m, operating at 24 V DC. This unit pairs with a compatible C4000 Advanced receiver (e.g., C40E-0702CB010) and supports advanced functions including restart interlock (RES), external device monitoring (EDM), dynamic blanking, beam coding, cascading of up to three systems, and PC-based configuration via CDS software with a 7-segment display for alignment and diagnostics.
Specification
Value
Brand
Sick
Model / Part Number
C40S-0702CA010
SICK Part No. (Internal)
1018619
Product Series
C4000 Advanced
Product Type
Safety Light Curtain – Sender
System Part
Sender (C40S)
Resolution
20 mm
Protective Field Height
750 mm
Scanning Range (Typical)
0 m to 21 m
Supply Voltage
24 V DC (19.2 V – 28.8 V)
Protection Class
III (IEC 61140)
Output Type (OSSD)
2 × PNP Semiconductor (OSSD1 + OSSD2)
Output Current
500 mA (per OSSD)
Light Source
LED (Infrared)
System Connection
Hirschmann Male Connector M26, 12-pin
Configuration Connection
M8 Socket, 4-pin
Max. Cable Length
50 m
Enclosure Rating
IP65
Housing Material
Aluminum Alloy (AlMgSi 0.5)
Operating Temperature
0 °C to +55 °C
Storage Temperature
-25 °C to +70 °C
Safety Type
Type 4 (IEC 61496-1 / IEC 61496-2)
Safety Integrity Level
SIL 3 (IEC 61508)
Performance Level
PL e (EN ISO 13849)
Safety Category
Category 4 (EN ISO 13849)
Display
7-Segment Display
Functions
Restart Interlock (RES), External Device Monitoring (EDM), Dynamic Blanking, Beam Coding, Cascade (up to 3 systems), EFI, Bypass
Configuration
PC with CDS (Configuration and Diagnostic Software)
Mounting Style
Side Mounting (various adapters available)
Compatible Receiver
C40E-0702CB010
We warranty all items for 30 days from date of purchase.
