USED SICK XC40E-0303A0A0CBC0

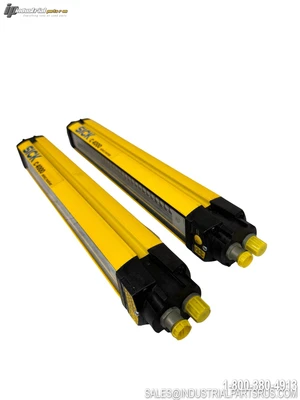

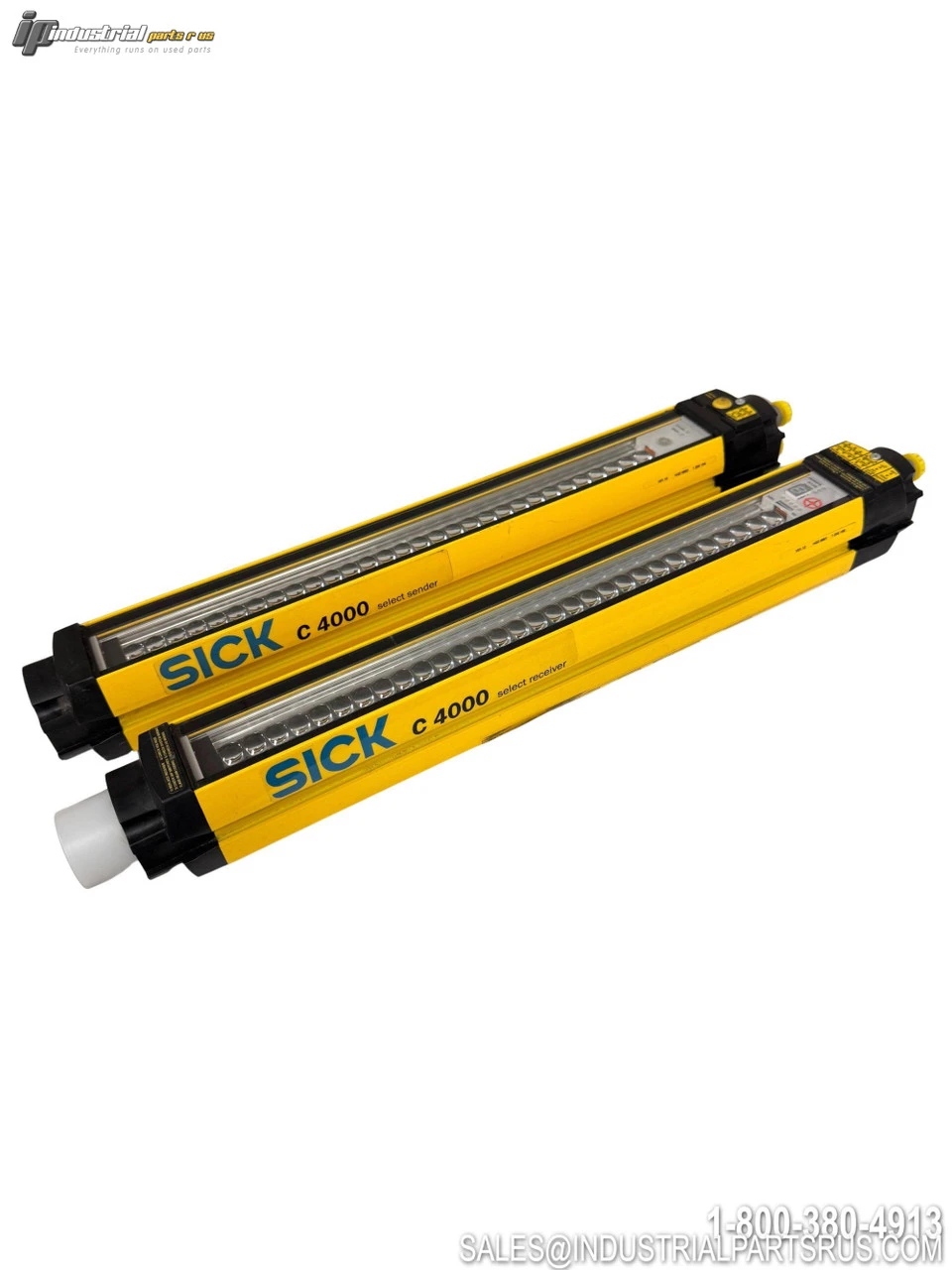

This listing includes the COMPLETE SET with both emitter and receiver units.

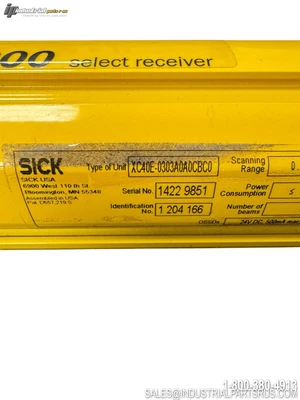

The Sick XC40E-0303A0A0CBC0 is a C4000 Select series safety light curtain receiver unit featuring a 300 mm protective field height and 30 mm resolution (hand/arm detection), designed for machine safeguarding in normal industrial environments. It provides two PNP semiconductor safety outputs (OSSDs) that are short-circuit and cross-circuit monitored, and includes an integrated LED status indicator and extended I/O connection in the bottom end cap for cascading additional protective devices. The C4000 Select achieves the highest safety ratings of PL e (EN ISO 13849), SIL 3 (IEC 61508), and Type 4 (IEC 61496), making it suitable for demanding hazardous point and area protection applications.
Specification
Value
Brand
Sick
Model / Part Number
XC40E-0303A0A0CBC0
Product Family / Series
C4000 Select
Product Type
Safety Light Curtain – Receiver
System Part
Receiver (XC40E)
Protection Type
Hand / Arm
Resolution (Detection Capability)
30 mm
Protective Field Height
300 mm
Number of Beams
15
Scanning Range (Operating Range)
0 – 21 m
Supply Voltage
24 VDC
Output Type
2 × PNP Semiconductor (OSSD1 & OSSD2), Short-Circuit & Cross-Circuit Monitored
Connection Type (System)
Male Connector M12, 5-pin
Extension / Cascade Connection
Female Connector M12, 5-pin (bottom end cap)
Integrated LED Indicator
Yes – 360° view, integrated in top end cap
Safety Level
PL e (EN ISO 13849), SIL 3 (IEC 61508), Type 4 (IEC 61496)
Application Environment
Normal Industrial Environment
Enclosure / Ingress Protection
IP65 (Dust Tight, Water Resistant)
Operating Temperature
0 °C to +55 °C
RoHS Compliance
Lead-Free / RoHS Compliant
Housing Construction
Slim, Torsionally Rigid (Optical & Electronic Components Integrated)
Cascading Capability
Yes – Up to 3 C4000 Select systems or 1 system + SICK S300/S3000 laser scanner
Diagnostics Display
7-Segment Display
Mating Sender Part Number

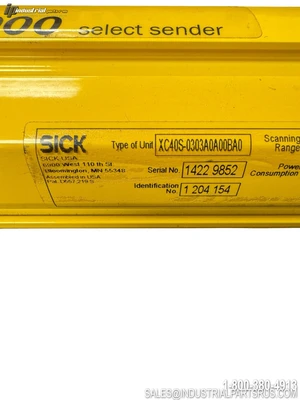

XC40S-0303A0A00BA0 (300mm / 30mm Sender)
Manufacturer
Sick AG
We warranty all items for 30 days from date of purchase.
