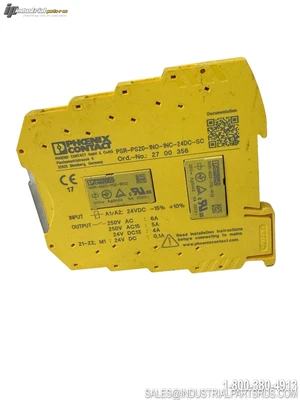

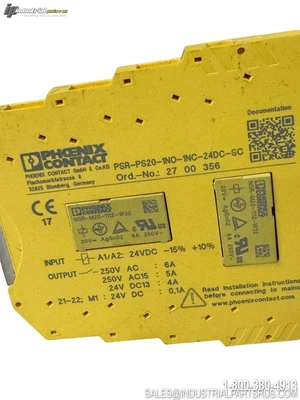

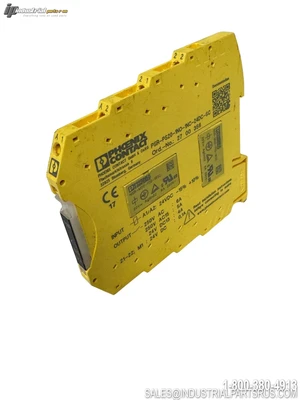

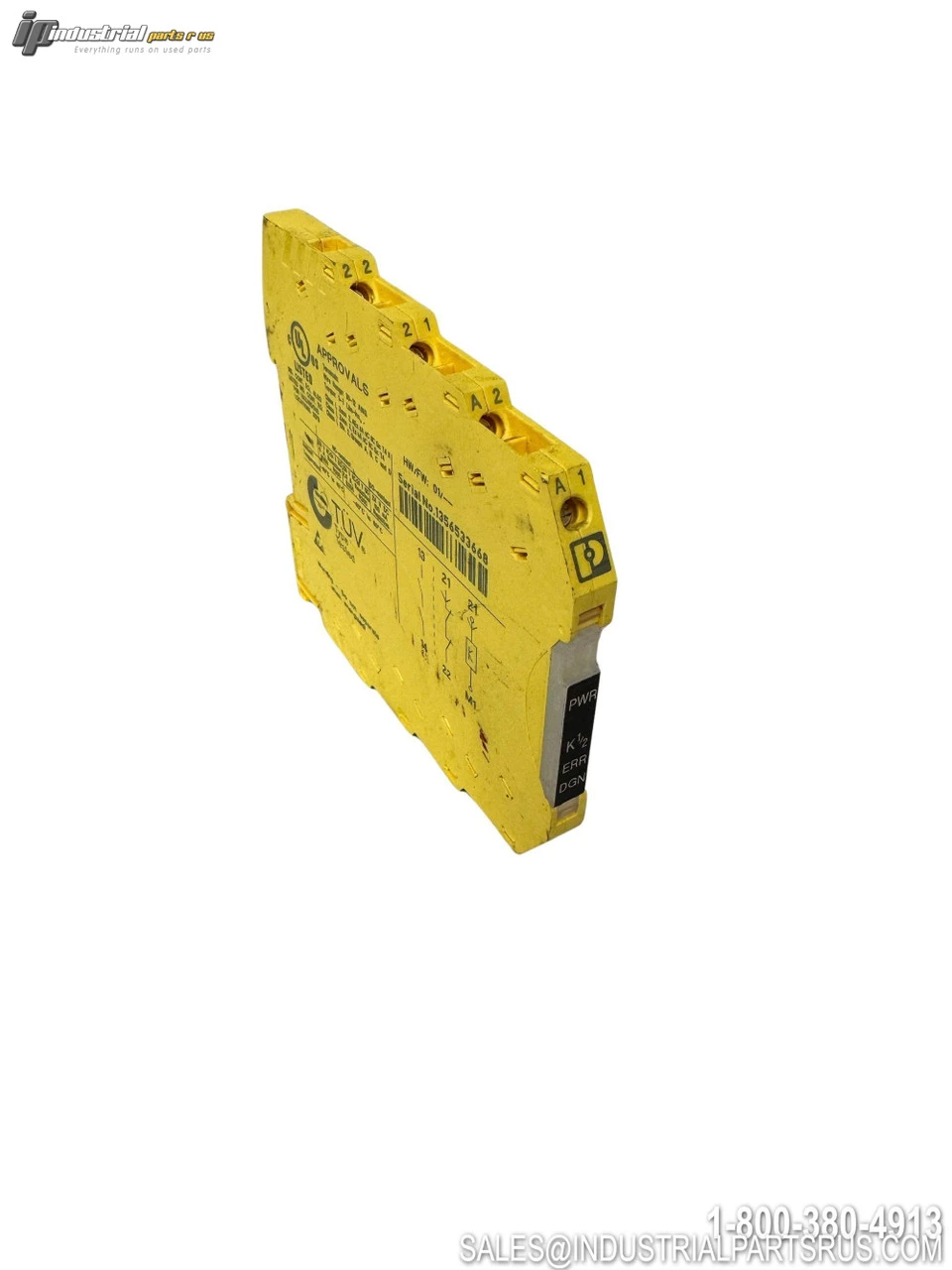

USED PHOENIX CONTACT PSR-PS2

The Phoenix Contact PSR-PS20-1N0-1NC-24DC-SC is a designation associated with the PSR family of safe coupling relays, designed to couple digital output signals from failsafe controllers to I/O devices such as valves and actuators. These devices provide electrical isolation and power adaptation for functional safety applications and are rated for use in SIL (Safety Integrity Level) certified systems in accordance with IEC 61508. The PSR-PS2x series mounts on standard DIN rail and features force-guided contacts per IEC/EN 61810-3, an integrated test pulse filter, and a fixed screw terminal block connection. Suitable for emergency stop circuits, safety door monitoring, light grids, and Ex Zone 2 / Class I Div 2 hazardous area applications.
⚠ IMPORTANT: "PSR-PS2" is an abbreviated/partial model number. Phoenix Contact PSRmini coupling relays in this family include full catalog numbers such as PSR-PS20-1NO-1NC-24DC-SC, PSR-PS21-1NO-1NC-24DC-SC, PSR-PS22-1NO-1NC-24VDC-SC, and PSR-PS23-1NO-1NC-24VDC-SC. Please verify the complete catalog number from the product label before ordering or listing.
Specification
Value
Brand
Phoenix Contact
Model / Part Number
PSR-PS2 (abbreviated — verify full catalog number on label)
Product Family
PSRmini
Product Type
Safe Coupling Relay
Relay Type
Electromechanical relay with force-guided contacts (IEC/EN 61810-3)
Nominal Supply Voltage (Us)
24V DC (PSR-PS20/21 variants); 24V DC/AC (PSR-PS22/23 variants)
SIL Rating
Up to SIL 2 or SIL 3 (varies by sub-model) per IEC 61508
Insulation / Overvoltage Category
Category III, Pollution Degree 2
Enabling Current Paths
1 (safety-related)
Contact Configuration
1 NO + 1 NC (1NO/1NC)
Contact Material
AgSnO2
Max Switching Voltage
250V AC/DC
Min Switching Voltage
12V AC/DC
Inrush Current (max)
6A
Rated Supply Current (Is)
Typ. 45 mA
Power Consumption
Typ. 1.08 W
Protective Circuit
Serial polarity reversal protection; suppressor diode
Mounting Type
DIN Rail
Connection Technology
Fixed screw terminal block
Application
Safe state off; test pulse filter; Ex-rated (zone applications)
Standards / Approvals
IEC 61508, IEC 61511, EN 50156, TÜV certified
Known Sub-Models
PSR-PS20 (SIL3), PSR-PS21 (SIL2), PSR-PS22 (SIL3), PSR-PS23 (SIL3)
We warranty all items for 30 days from date of purchase.
