USED 2008 JORNS MAXI LINE 150SW-RM-OV-SF-CNC500-HS
Overview

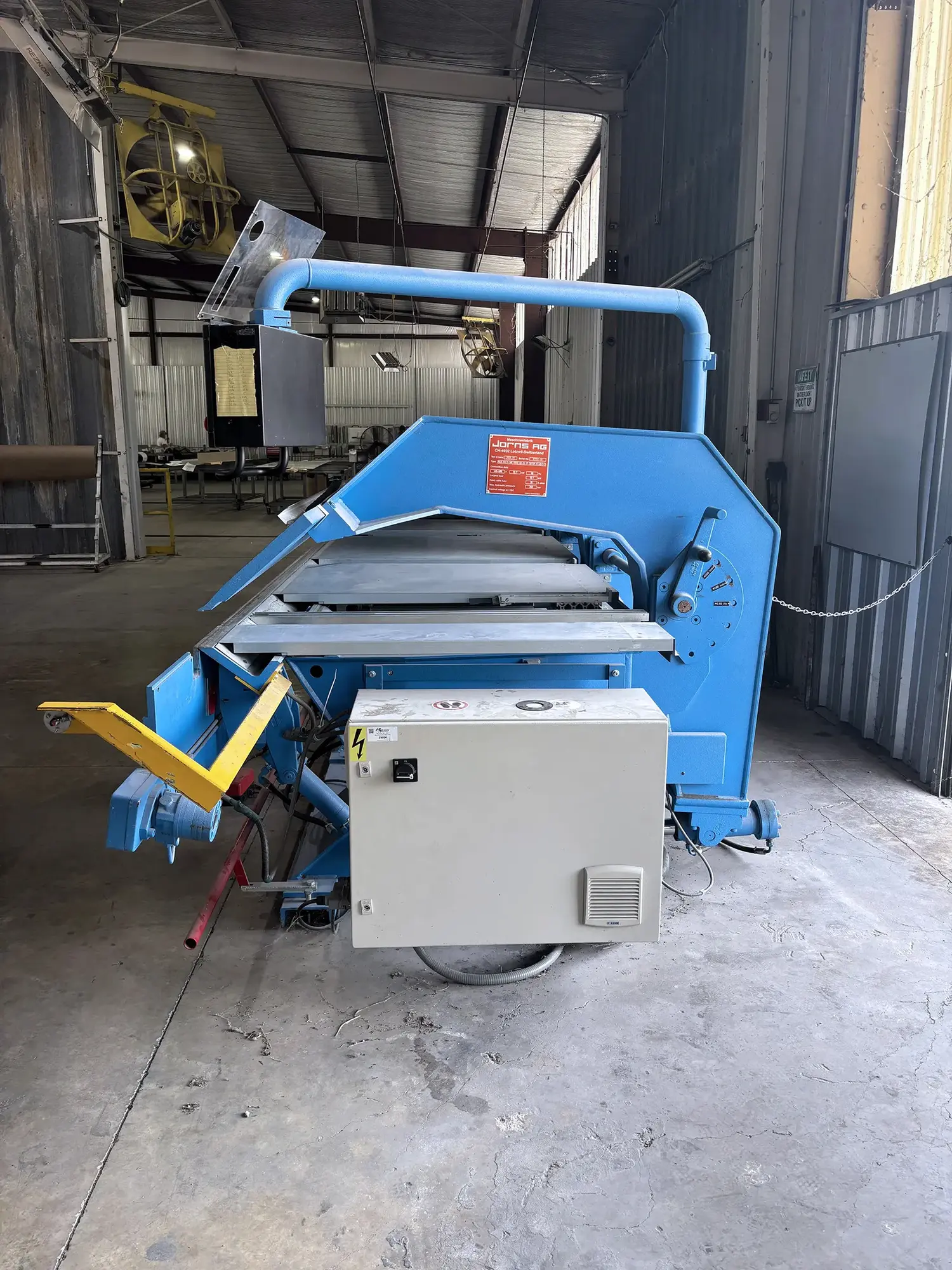

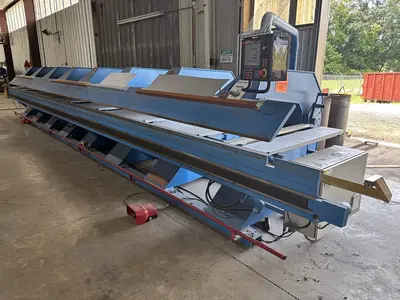

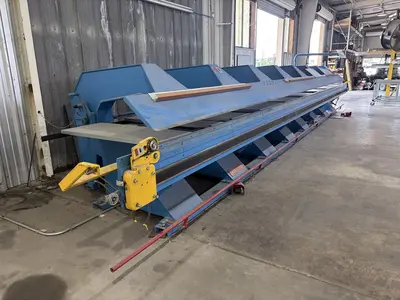

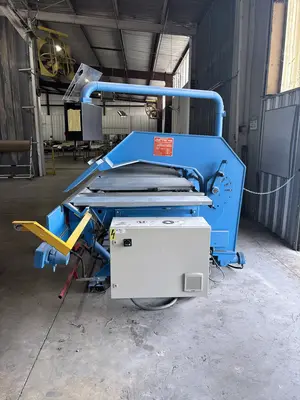

The Jorns 32' Maxi-Multi-Line-150SW (2008) with Beck Automation Control is a heavy-duty CNC sheet metal folding machine designed for precision, high-volume fabrication of oversized panels. Ideal for roofing, architectural flashings, standing seam roofs, wall panels, and façade systems, it accurately forms mild steel, galvanized steel, stainless steel, aluminum, copper, zinc, and pre-painted materials with efficient single-operator productivity.
Specs
Beck Automation Control - Installed in 2025
Replacement machine new $750000+
Only 32' 14 gauge machine in the US
Beck Automation CNC control
Automatic positioning
Full-length support fingers
Color touchscreen interface
Recipe/program storage
Manual mode
Automatic mode
Material thickness compensation
Bend angle programming
Backgauge positioning
Diagnostic screens
Emergency stop
Working Length: 32' (10 meters / 394")
Maximum Bending Thickness (Mild Steel): 14 ga (1.5 mm / .060")
Stainless Capacity: approximately 20 ga (1.0 mm)
Aluminum Capacity: 12 ga depending on alloy
Backgauge
CNC programmable backgauge: Approximately 48" positioning
Bending Performances
CNC controlled folding beam
Positive and negative bending
Automatic bend sequencing
Programmable folding angles
Radius bending capability
Box forming capability
Multi-step hemming
Open hem capability
Closed hem capability
Electrical Requirements
Voltage: 440–480V
Phase: 3 Phase
Frequency: 60 Hz
Connected Load: 12.7 kW
Largest Load: 12.7 kW
Fuse: 35 Amp Slow Blow
Control Voltage: 24 VDC
Equipped With
Beck Automation Control - Installed in 2025
Replacement machine new $750000+
Only 32' 14 gauge machine in the US
Beck Automation CNC control
Automatic positioning
Full-length support fingers
Color touchscreen interface
Recipe/program storage
Manual mode
Automatic mode
Material thickness compensation
Bend angle programming
Backgauge positioning
Diagnostic screens
Emergency stop
