Heat Exchanger, Plate, 600 SF, Alfa Laval, 18" x 60" Plates, Stainless Steel, #5991877

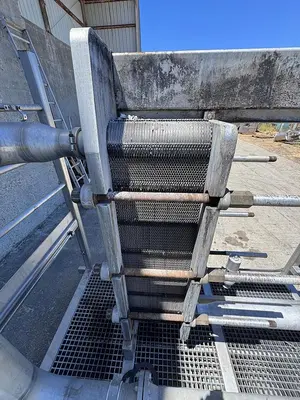

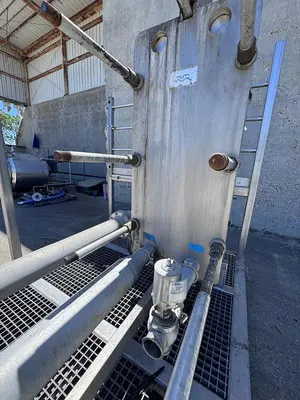

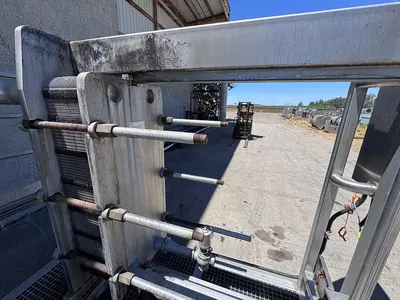

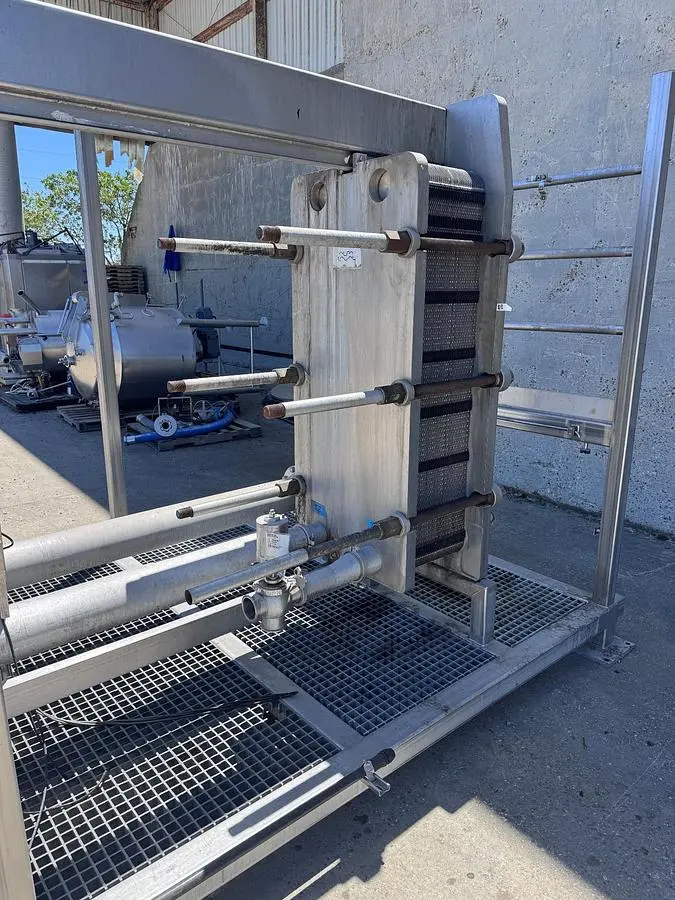

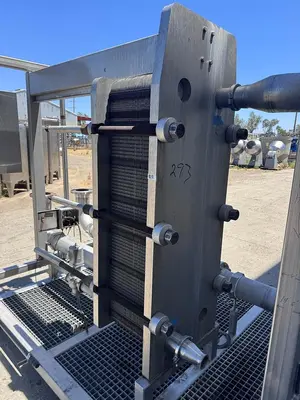

Alfa Laval stainless steel plate heat exchanger mounted in a heavy-duty stainless steel support frame. The unit contains approximately (80) heat transfer plates measuring approximately 18" wide x 60" high, providing an estimated 600 square feet of heat transfer surface area. Equipped with (2) lower process connections consisting of 4" ports reduced to approximately 2-1/2", and an upper 4" elbow connection transitioning to a 6" diameter flanged pipe. Includes stainless steel piping, pneumatic valve assembly, and open-frame support. Suitable for sanitary heating, cooling, pasteurization, heat recovery, and product-to-product heat transfer applications in food, beverage, dairy, brewing, winery, pharmaceutical, and general process industries.

Stock Number: 5991877
Manufacturer: Alfa Laval
Includes: Pneumatic Valve Assembly

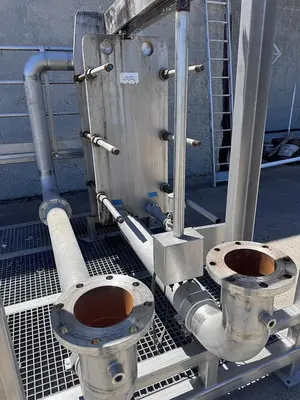

Upper Connections: 4" Elbow to 6" Flanged Pipe
Bottom Connections: (2) 4" Reduced to 2-1/2"
Frame: Stainless Steel
Construction: Stainless steel

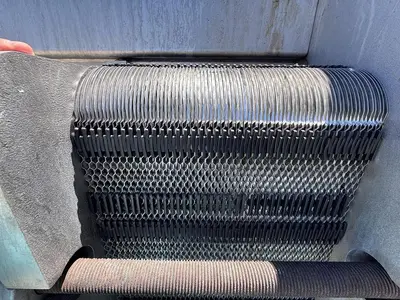

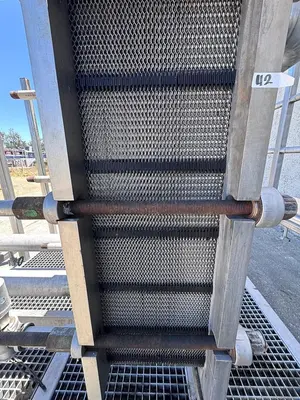

Number of Plates: Approx. 80
Plate Size: Approx. 18" wide x 60" high
Square Feet: 600 SF (Estimate)
Basis: FOB
