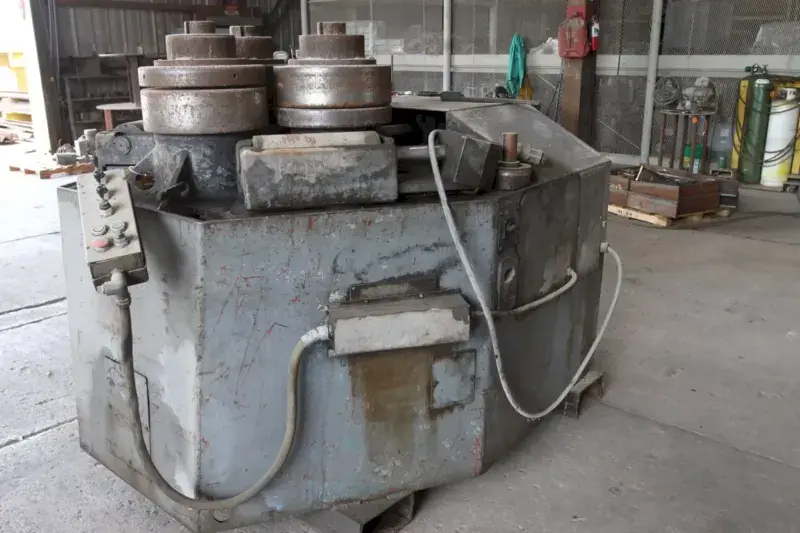

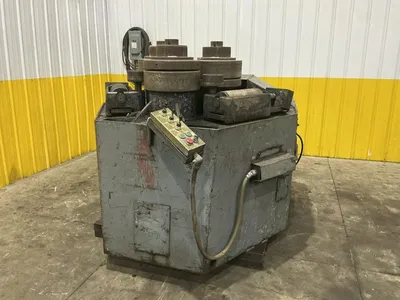

5" X 5" X 1/2" PULLMAX MODEL #Z41 VERTICAL/HORIZONTAL HYDRAULIC ANGLE ROLL: YOBRO #25804

MAX ANGLE LEG OUT DIAMETER ......... 5” X 5” X ½” to 63”
MIN ANGLE LEG OUT DIAMETER ......... 1-¾” X 1-¾” X ¼” to 32”
MAX ANGLE LEG IN DIAMETER .......... 4” X 4” X ⅝” to 60”
MIN ANGLE LEG IN DIAMETER .......... 1-¾” X 1-¾” X ¼” 36”
MAX TEE LEG OUT DIAMETER ........... 1-¼” X 1-¼” X ¼” to 18”
MIN TEE LEG OUT DIAMETER ........... ST 5WF 30 LBS to 60”
FLAT BAR ON EDGE DIAMETER .......... 5” X ¾” to 50”
FLAT BAR ON FLAT DIAMETER .......... 8” X 1-½” to 32”
SQUARE BAR ......................... 2-¾” X 2-¾” to 40”
ROUND BAR DIAMETER ................. 3” to 30”
ROUND PIPE DIAMETER ................ 4” SCH 40 to 50”
I-BEAM ON WEB DIAMETER ............. 10” X 4” to 70”
I-BEAM ON FLANGE DIAMETER .......... 4” X 2-⅝” to 140”
CHANNEL FLANGE OUT DIAMETER ............. 10” X 2-⅝” to 70”
CHANNEL FLANGE IN DIAMETER .............. 10” X 2-⅝” to 70”
CHANNEL FLANGE UP DIAMETER .............. 5” X 1-¾” to 140”
MOTOR ................................... 22 HP

Brand
PULLMAX
Type
Rolls, Angle Bending
Stock No.
25804
