Used DCI 15,000 Gallon 316L Stainless Steel Jacketed Sanitary Mix Tank / Fermenter / Reactor with 100 HP Agitator

Used Equipment Facts About This Machine
Manufacturer
DCI, Inc. is a leading manufacturer of ASME pressure vessels and sanitary stainless steel processing equipment for the food, beverage, dairy, pharmaceutical, biotechnology, and specialty chemical industries. DCI tanks are recognized for their high-quality 316L stainless steel construction, sanitary finishes, and dependable performance in demanding process applications.

Description

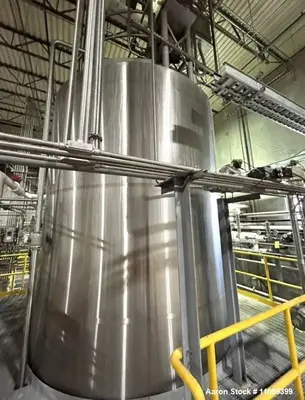

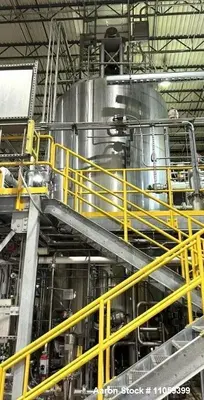

The Used DCI Jacketed 316L Stainless Steel Sanitary Mix Tank / Fermenter / Reactor offers 15,000 gallons of working capacity and is designed for demanding sanitary mixing, fermentation, reaction, blending, and processing applications. Previously operated in a sanitary food and nutritional ingredients processing plant, this vessel is well suited for food-grade, pharmaceutical, biotech, and specialty chemical production.
Constructed from 316L stainless steel, the tank features an ASME-rated pressure vessel designed for 35 PSI internal pressure and full vacuum at 358°F, while the external jacket is rated for 135 PSI/full vacuum at 358°F, allowing for efficient heating and cooling with steam, hot water, or glycol systems.

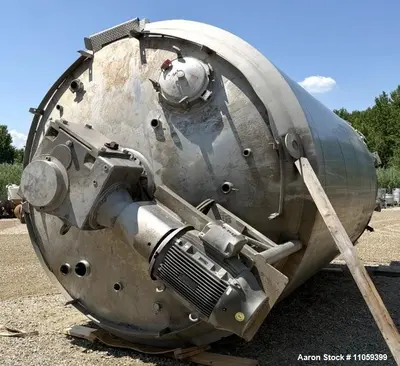

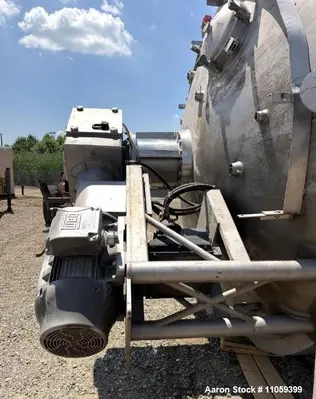

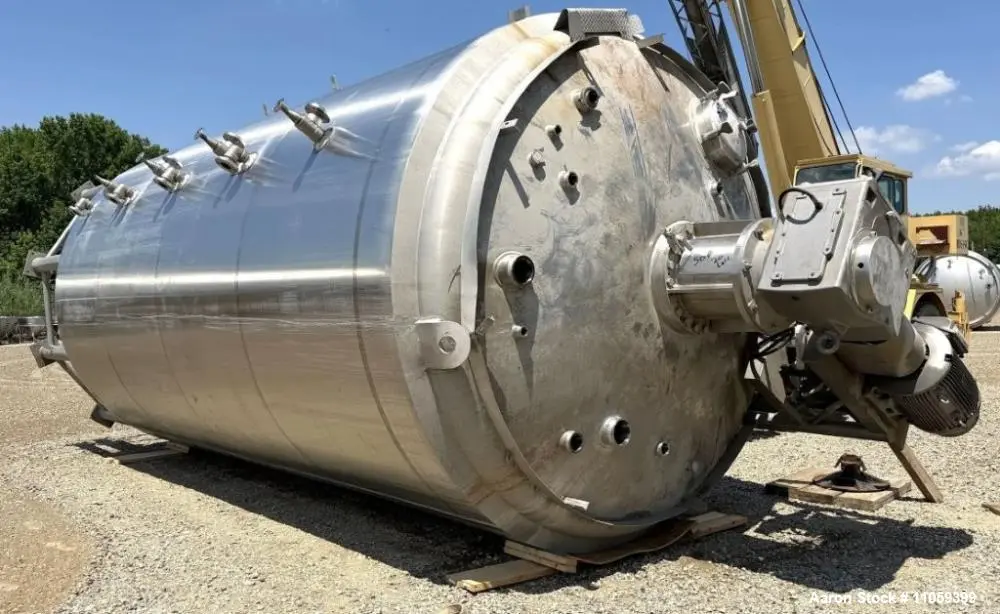

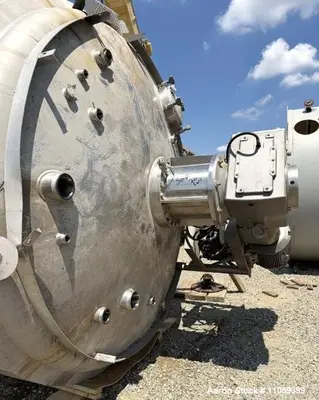

The vessel measures approximately 11 feet in internal diameter by 20 feet 9 inches tangent-to-tangent, with an overall height of approximately 31 feet 3 inches. Mixing is provided by a top-mounted 100 HP agitator operating from approximately 15 to 142 RPM when paired with a variable frequency drive (VFD), providing excellent flexibility for low- and high-shear mixing applications.
This heavy-duty sanitary processing vessel is ideal for manufacturers requiring large-capacity mixing, fermentation, reaction, or ingredient preparation under pressure or vacuum conditions.

Specifications

Specification
Details

Manufacturer
DCI, Inc.

Equipment Type
Jacketed Sanitary Mix Tank / Fermenter / Reactor

Capacity
15,000 Gallons

Material of Construction
316L Stainless Steel

Internal Pressure Rating
35 PSI

Internal Vacuum Rating
Full Vacuum

Internal Temperature Rating
358°F

Jacket Pressure Rating
135 PSI

Jacket Vacuum Rating
Full Vacuum

Jacket Temperature Rating
358°F

Internal Diameter
Approximately 11 ft.

Tangent-to-Tangent Length
Approximately 20 ft. 9 in.

Overall Height
Approximately 31 ft. 3 in.

Agitator
Top-Mounted Mixer

Mixer Motor
100 HP

Mixer Voltage
460 Volt

Output Speed
Approximately 15–142 RPM (VFD Required)

National Board Number
11705

Previous Service
Sanitary Food & Nutritional Ingredients Processing

Condition
Used

Applications
This sanitary processing vessel is ideal for:

Food ingredient mixing
Nutritional supplement manufacturing
Fermentation processes
Biotech processing
Pharmaceutical production
Dairy processing
Beverage manufacturing
Liquid blending
Batch reaction processing
Specialty chemical production
Protein ingredient processing
Sanitary batch manufacturing

Common Products Processed

Food ingredients
Nutritional supplements
Protein concentrates
Beverage bases
Dairy products
Liquid sweeteners
Enzyme solutions
Fermentation media
Vitamins
Botanical extracts
Pharmaceutical intermediates
Specialty chemicals

Features & Benefits

Large 15,000-gallon processing capacity
316L stainless steel sanitary construction
ASME pressure vessel design
Internal rating of 35 PSI and full vacuum
Jacket rated for 135 PSI and full vacuum
Suitable for heating and cooling applications
Top-mounted 100 HP agitator
Variable mixing speeds from approximately 15–142 RPM with VFD
Designed for sanitary food and ingredient processing
Heavy-duty industrial construction
Previously operated in a sanitary production facility
Ideal for fermentation, mixing, reaction, and blending applications

Frequently Asked Questions
What industries is this tank suitable for?
This vessel is ideal for the food, beverage, nutraceutical, dairy, pharmaceutical, biotechnology, and specialty chemical industries requiring sanitary batch processing.
What are the pressure ratings?
The vessel is rated for 35 PSI internal pressure and full vacuum at 358°F, while the jacket is rated for 135 PSI and full vacuum at 358°F.
What type of mixer is installed?
The tank is equipped with a top-mounted 100 HP agitator capable of operating between approximately 15 and 142 RPM when used with a compatible variable frequency drive (VFD).
Is the vessel jacketed?
Yes. The tank features a full process jacket for efficient heating or cooling using steam, hot water, glycol, or other thermal media.
What was the previous application?
This vessel was previously used in a sanitary food and nutritional ingredients processing plant, making it well suited for sanitary processing applications.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international logistics services, including heavy-haul transportation, export documentation, rigging coordination, and oversized equipment shipping for large process vessels.
