Unused Crown Iron Works 12,700 Gallon 316L Stainless Steel Vertical Process Vessel – ASME 15 PSI/Full Vacuum

Used Equipment Facts About This Machine
Manufacturer
Crown Iron Works is a globally recognized manufacturer of high-quality process equipment and ASME pressure vessels for the food, edible oil, chemical, biofuel, agricultural, and industrial processing industries. Crown Iron Works vessels are engineered for durability, corrosion resistance, and dependable performance in demanding production environments.

Description

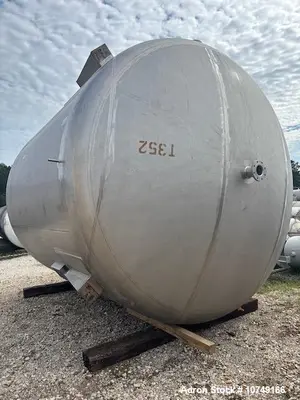

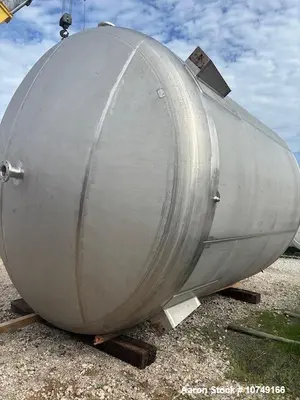

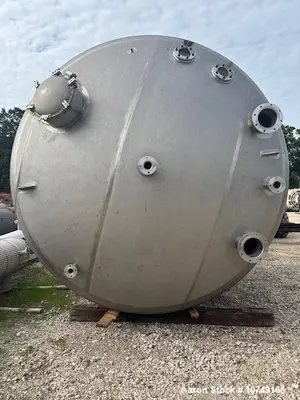

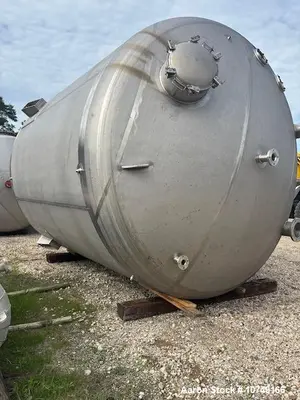

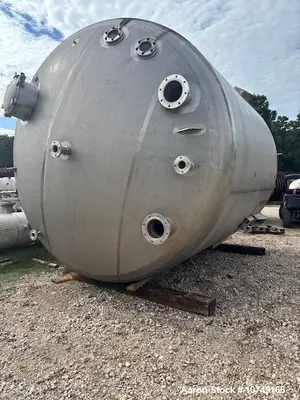

The Unused Crown Iron Works Vertical 316L Stainless Steel Process Vessel offers approximately 12,700 gallons of capacity and is constructed from 316L stainless steel for superior corrosion resistance and sanitary processing applications. This single-wall vertical vessel is suitable for storage, blending, batching, and general process applications across a variety of industries.
The vessel measures approximately 12 feet in diameter with an 11-foot, 8-inch straight side and an overall height of approximately 19 feet, 2 inches. Designed with dished top and bottom heads, a 1/4-inch thick shell, and lug/leg supports, the tank provides structural integrity while allowing for efficient product discharge and installation.
The vessel is rated for 15 PSI internal pressure and full vacuum at 250°F, making it suitable for pressure and vacuum processing applications. Access is provided through a 20-inch top manway, while product discharge is accomplished through a 4-inch center bottom outlet.
Being unused, this vessel offers the advantages of like-new condition without the lead time associated with new fabrication.

Specifications

Specification
Details

Manufacturer
Crown Iron Works

Equipment Type
Vertical Process Vessel

Capacity
Approximately 12,700 Gallons

Material of Construction
316L Stainless Steel

Construction
Single Wall

Orientation
Vertical

Diameter
Approximately 12 ft.

Straight Side
Approximately 11 ft. 8 in.

Overall Height
Approximately 19 ft. 2 in.

Pressure Rating
15 PSI

Vacuum Rating
Full Vacuum

Temperature Rating
250°F

Head Style
Dished Top & Bottom Heads

Shell Thickness
1/4 in.

Top Manway
20 in.

Bottom Outlet
4 in. Center Bottom Outlet

Supports
Lug/Leg Supports

Condition
Unused

Applications
This process vessel is well suited for:

Food ingredient storage
Liquid process storage
Chemical storage
Batch blending
Mixing operations
Pharmaceutical processing
Nutraceutical production
Beverage processing
Water treatment systems
Biofuel production
Agricultural processing
General industrial process storage

Common Products Stored or Processed

Food ingredients
Edible oils
Syrups
Liquid sweeteners
Water
Beverage concentrates
Chemical solutions
Pharmaceutical ingredients
Nutraceutical products
Process liquids
Cleaning solutions
Specialty chemicals

Features & Benefits

Unused condition
Approximately 12,700-gallon capacity
Corrosion-resistant 316L stainless steel construction
Single-wall vertical vessel design
Rated for 15 PSI and full vacuum
Temperature rating up to 250°F
Dished top and bottom heads
Heavy-duty 1/4-inch shell construction
20-inch top manway for inspection and maintenance
4-inch center bottom outlet for efficient drainage
Lug/leg support design for stable installation
Suitable for a wide range of sanitary and industrial applications

Frequently Asked Questions
What is the vessel capacity?
The vessel has an approximate capacity of 12,700 gallons.
What material is the tank constructed from?
It is fabricated from 316L stainless steel, offering excellent corrosion resistance and suitability for sanitary and industrial processing applications.
Is the vessel jacketed?
No. This is a single-wall process vessel.
What are the pressure and vacuum ratings?
The vessel is rated for 15 PSI internal pressure and full vacuum at a maximum operating temperature of 250°F.
What access and discharge connections are included?
The vessel features a 20-inch top manway for inspection and maintenance, along with a 4-inch center bottom outlet for efficient product discharge.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international shipping services, including heavy-haul transportation, export documentation, rigging coordination, and logistics support for large tanks, vessels, and processing equipment.
