USED LANTECH Q300

Manufacturer Information
Manufacturer: Lantech
Model: Q300
Main Product Description

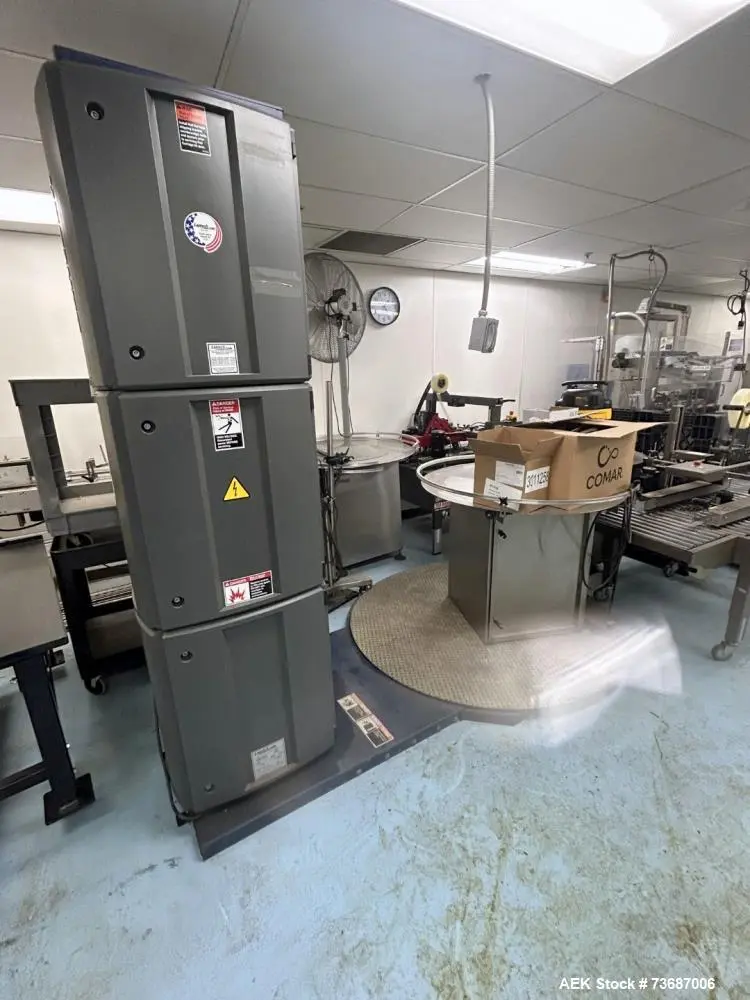

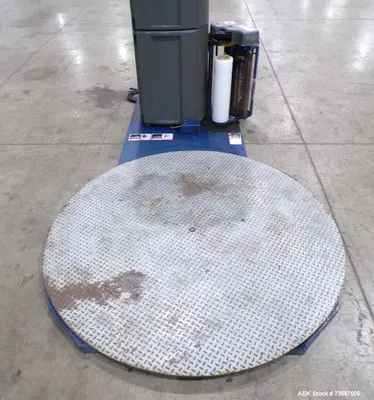

Used Lantech Model Q300 semi-automatic pallet stretch wrap machine capable of handling up to 35 loads per hour. The machine accommodates loads up to 72 inches diagonal, 80 inches high, and 4,000 pounds, and is equipped with a 65-inch diameter rotary turntable with adjustable speed up to 12 RPM. It accepts stretch film rolls up to 10 inches in diameter with a 20-inch film web width. The unit also includes a bolt-on Commercial Scale Co. 67-inch x 67-inch electronic platform scale rated for 5,000 pounds and a Toledo Scale Model 8140 digital readout with 10,000-pound capacity. Additional features include Q-Series programmable controls, 115-volt single-phase 60 Hz electrical service, and an overall machine footprint of approximately 124 inches long x 68 inches wide x 93 inches high.
Specifications

Manufacturer: Lantech
Model: Q300
Equipment type: Semi-automatic pallet stretch wrap machine
Throughput: Up to 35 loads per hour
Maximum load diagonal: 72 inches
Maximum load height: 80 inches
Maximum load weight: 4,000 pounds
Turntable diameter: 65 inches
Turntable type: Rotary
Maximum turntable speed: Up to 12 RPM
Turntable speed: Adjustable
Maximum film roll diameter: 10 inches
Film web width: 20 inches
Controls: Q-Series programmable controls
Platform scale manufacturer: Commercial Scale Co.
Platform scale size: 67 inches x 67 inches
Platform scale capacity: 5,000 pounds
Digital scale readout: Toledo Scale Model 8140
Digital readout capacity: 10,000 pounds
Electrical: 115V, 1-phase, 60 Hz
Machine footprint length: 124 inches
Machine footprint width: 68 inches
Machine footprint height: 93 inches

Applications

Pallet stretch wrapping
Unit load stabilization
Warehouse packaging
Shipping preparation
Distribution center pallet wrapping
Finished goods packaging
Load containment
Pallet weighing and wrapping
Semi-automatic end-of-line packaging

Suitable Products / Materials
This Lantech Q300 may be suitable for palletized loads and products including:

Cartoned products
Case-packed goods
Bagged products
Pails and containers
Consumer goods
Food and beverage cases
Industrial products
Warehouse shipments
Distribution loads
General palletized products

FAQs

What is the throughput of the Lantech Q300?
The machine is capable of wrapping up to 35 loads per hour.
What is the maximum load capacity?
The maximum specified load weight is 4,000 pounds.
What size loads can the machine handle?
It is rated for loads up to 72 inches diagonal and 80 inches high.
What size is the turntable?
The machine has a 65-inch diameter rotary turntable.
How fast does the turntable rotate?
The turntable speed is adjustable up to 12 RPM.
What size stretch film does the machine use?
It accepts film rolls up to 10 inches in diameter with a 20-inch web width.
Does this stretch wrapper include a scale?
Yes. It includes a bolt-on Commercial Scale Co. 67-inch x 67-inch electronic platform scale rated for 5,000 pounds.
What scale readout is included?
The system includes a Toledo Scale Model 8140 digital readout with a 10,000-pound capacity.
What controls are installed?
The machine is equipped with Lantech Q-Series programmable controls.
What electrical service is required?
The machine requires 115-volt, single-phase, 60 Hz electrical service.
What are the machine footprint dimensions?
The footprint is approximately 124 inches long x 68 inches wide x 93 inches high.
Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can assist with coordinating shipping and logistics for this used Lantech pallet stretch wrapper based on the destination and shipment requirements.
How can Aaron Equipment help with this Lantech Q300?
Aaron Equipment can provide available equipment details, answer questions about the machine, and assist with purchasing and shipping coordination.
