USED ALAR ENGINEERING 360

MANUFACTURER INFORMATION
ALAR Engineering develops industrial wastewater treatment and sludge-dewatering systems. Its Auto-Vac line uses rotary vacuum drum precoat filtration to draw liquid through filter-aid media while retaining and dewatering suspended solids. ALAR describes the Auto-Vac as using a non-segmented drum, precoat microfiltration, and incremental removal of spent media and collected solids to maintain filtration performance.
MAIN PRODUCT DESCRIPTION

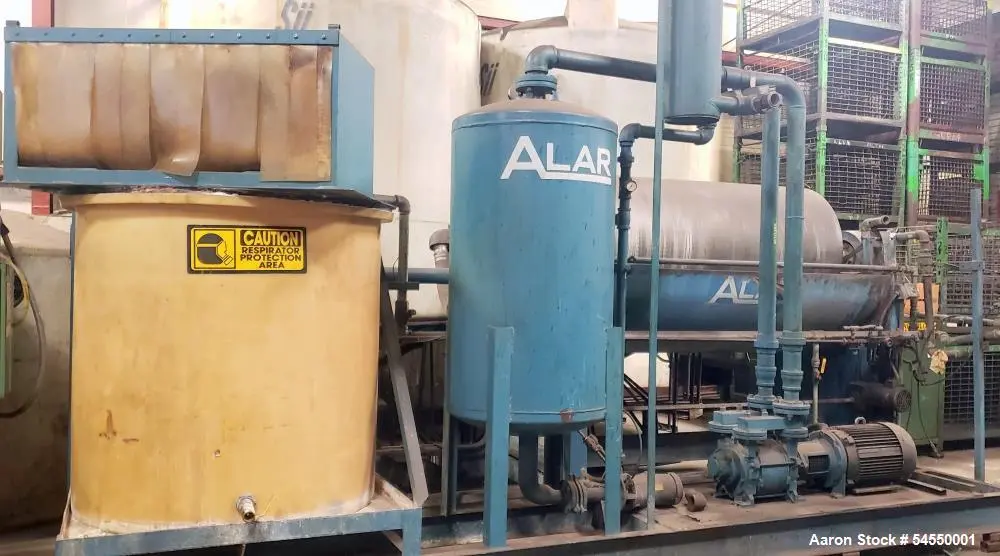

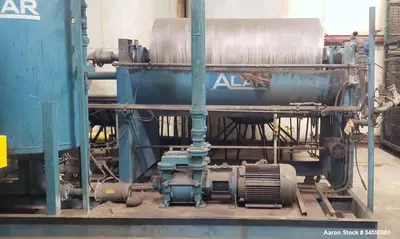

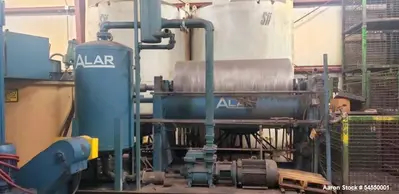

Used ALAR Engineering Auto-Vac Model 360 skid-mounted rotary vacuum drum precoat filter designed for industrial wastewater treatment, effluent clarification, and sludge dewatering. The system features a stainless steel drum measuring approximately 3 feet in diameter by 6 feet long, with a nominal filtration area of approximately 56.5 sq. ft. The listing states a total connected load of approximately 20 HP and includes two 3,000-gallon holding tanks, a two-stage pump, and a spare pump. The main system has an approximate footprint of 9 feet wide by 16 feet 8 inches long, a maximum height of approximately 8 feet 6 inches, and an approximate shipping weight of 6,200 pounds. The unit was last used to treat wastewater from an automobile remanufacturing facility. Serial number requires confirmation because the description and specification table show different numbers. Aaron Equipment stock number 54550001.
SPECIFICATIONS

Equipment type: Rotary vacuum drum precoat filter
Manufacturer: ALAR Engineering Corporation
Product line: Auto-Vac
Model: 360
Possible alternate model designation: AV360
Configuration: Skid mounted
Drum construction: Stainless steel
Drum diameter: Approximately 3 feet
Drum length: Approximately 6 feet
Nominal filtration area: Approximately 56.5 sq. ft.
Drum design: Non-segmented
Listed particle capture range: Approximately 0.5 to 1 micron
Total connected power: Approximately 20 HP
Included holding tanks: Two
Holding tank capacity: Approximately 3,000 gallons each
Included pump: Two-stage pump
Additional included pump: Spare pump
Approximate main system footprint: 9 feet wide x 16 feet 8 inches long
Maximum system height: Approximately 8 feet 6 inches
Approximate shipping weight: 6,200 pounds
Previous application: Wastewater treatment at an automobile remanufacturing facility
Serial number: 12895
Stock number: 54550001

APPLICATIONS

Industrial wastewater treatment
Sludge dewatering
Suspended-solids removal
Fine-particle filtration
Effluent clarification
Process-water recovery
Automotive remanufacturing wastewater
Metal-finishing wastewater treatment
Paint and coating wastewater
Pigment removal
Chemical process wastewater
Concrete and mineral fines removal
Food-processing wastewater
Oil, grease, and emulsified-solids treatment after proper pretreatment
Reduction of liquid waste volume before disposal

ALAR identifies the Auto-Vac product line for industrial wastewater containing fine suspended solids, precipitated metals, pigments, oils, grease, and other difficult-to-settle contaminants. Actual suitability depends on pretreatment chemistry and the characteristics of the individual waste stream.
SUITABLE PRODUCTS AND MATERIALS

Chemically treated industrial wastewater
Automotive process wastewater
Metal-finishing rinse water
Precipitated metal solids
Paint and coating wastewater
Pigment-bearing wastewater
Concrete wash water
Mineral fines
Suspended inorganic solids
Industrial wash water
De-emulsified fats, oils, and grease
Chemical sludge
Filterable process solids
High-solids wastewater
Other pretreated industrial liquid waste streams

Actual process suitability should be determined using wastewater flow rate, solids concentration, particle size, pH, temperature, oil content, chemical composition, filter-aid selection, desired filtrate quality, and disposal requirements.
PRODUCT DETAILS

Mid-sized ALAR Auto-Vac rotary vacuum drum filter
Designed for precoat microfiltration
Skid-mounted industrial system
Stainless steel filter drum
Approximately 3-foot-diameter drum
Approximately 6-foot-long drum
Approximately 56.5 sq. ft. nominal filtration area
Non-segmented drum design
Approximately 20 HP total connected power
Includes two approximately 3,000-gallon holding tanks
Includes a two-stage pump
Includes a spare pump
Approximate maximum height of 8 feet 6 inches
Approximate skid footprint of 9 feet x 16 feet 8 inches
Approximate shipping weight of 6,200 pounds
Previously used for automotive remanufacturing wastewater
Available as Aaron Equipment stock number 54550001

FAQS

WHAT TYPE OF FILTER IS THIS?
This is an ALAR Auto-Vac rotary vacuum drum precoat filter designed for industrial wastewater filtration, solids separation, and sludge dewatering.
WHAT IS THE MODEL NUMBER?
The Aaron Equipment listing identifies the unit as Model 360. ALAR has also used the AV360 designation for equipment of this size, so the nameplate should be checked to confirm the full model.
WHAT SIZE IS THE FILTER DRUM?
The listed stainless steel drum is approximately 3 feet in diameter by 6 feet long.
WHAT IS THE FILTRATION AREA?
The listing states a nominal filtration area of approximately 56.5 sq. ft.
WHAT PARTICLE SIZE CAN THE FILTER CAPTURE?
The listing states approximately 0.5 to 1 micron. Actual capture performance depends on the filter-aid grade, precoat depth, wastewater chemistry, particle characteristics, vacuum level, and operating conditions.
HOW DOES AN AUTO-VAC FILTER WORK?
Vacuum draws liquid through a precoat filtration layer on the rotating drum while solids remain on the filter surface. ALAR describes the system as incrementally removing the collected solids and a thin layer of spent media to expose fresh filtration media.
WHAT ARE THE SYSTEM DIMENSIONS?
The listed maximum height is approximately 8 feet 6 inches, and the stated skid footprint is approximately 9 feet wide by 16 feet 8 inches long. Buyers should confirm whether these measurements include the tanks and pumps.
HOW MUCH DOES THE EQUIPMENT WEIGH?
The listing states an approximate shipping weight of 6,200 pounds. Separate tank and accessory weights are not provided.
WHAT WAS THE SYSTEM PREVIOUSLY USED FOR?
It was last used to treat wastewater from an automobile remanufacturing facility.

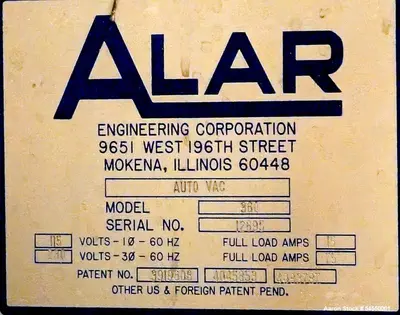

WHAT IS THE CORRECT SERIAL NUMBER?
Serial No. 12895.
CAN AARON EQUIPMENT HELP DETERMINE WHETHER THIS FILTER FITS MY WASTEWATER APPLICATION?
Yes. Provide the wastewater source, daily volume, flow rate, solids percentage, particle size, pH, temperature, oil content, chemical analysis, pretreatment process, discharge requirements, and desired hours of operation so the Aaron Equipment team can help assess the application.
CAN THE FILTER SYSTEM BE INSPECTED BEFORE PURCHASE?
Contact Aaron Equipment to discuss an inspection, additional photographs, nameplate verification, equipment documentation, included components, and testing availability.
DOES AARON EQUIPMENT HELP WITH SHIPPING?
Yes. Aaron Equipment can assist with loading and freight coordination. Buyers should confirm whether the main skid, two holding tanks, two-stage pump, and spare pump require separate loads and obtain exact shipping dimensions and weights for each component.
