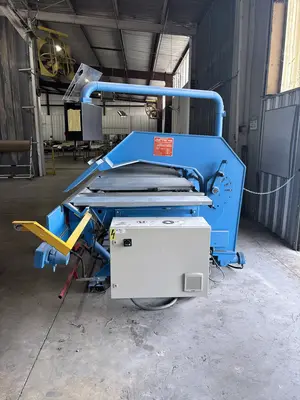

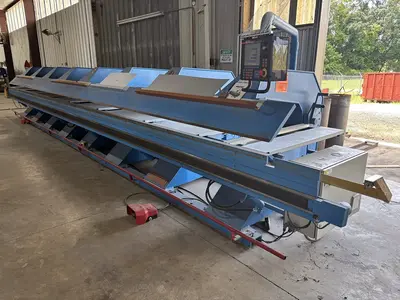

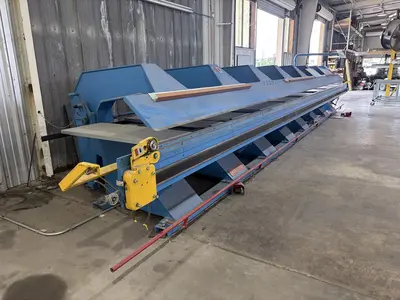

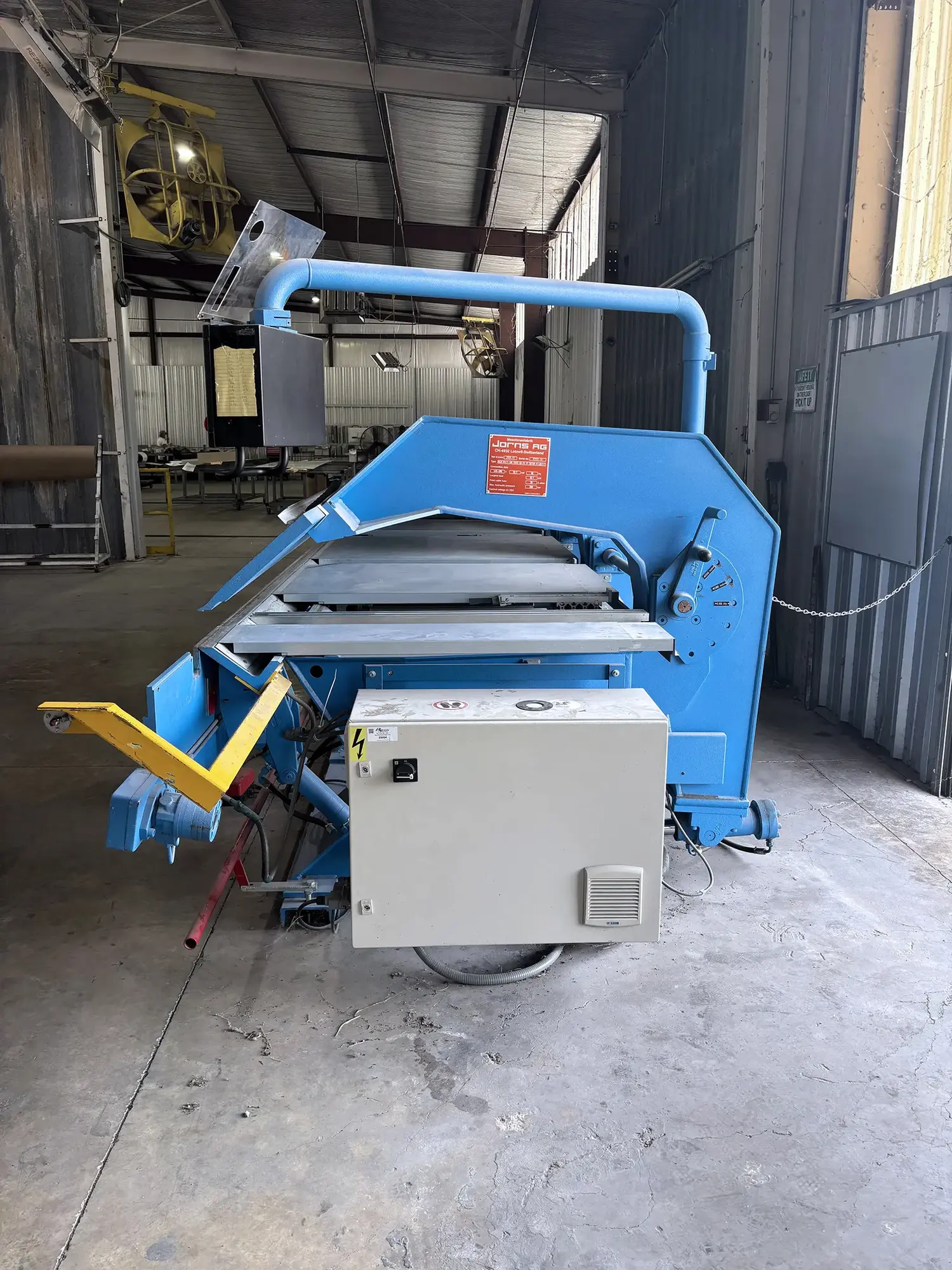

USED 2008 Jorns Maxi Line 150SW-RM-OV-SF-CNC500-hs
Overview
The Jorns 32' Maxi-Multi-Line-150SW (2008) with Beck Automation Control is a heavy-duty CNC sheet metal folding machine designed for precision, high-volume fabrication of oversized panels. Ideal for roofing, architectural flashings, standing seam roofs, wall panels, and façade systems, it accurately forms mild steel, galvanized steel, stainless steel, aluminum, copper, zinc, and pre-painted materials with efficient single-operator productivity.
Specs
Working Length: 32' (10 meters / 394")
Maximum Bending Thickness (Mild Steel): 14 ga (1.5 mm / .060")
Heavier gauges over shorter lengths:
Stainless Capacity: approximately 20 ga (1.0 mm)
Aluminum Capacity: 12 ga depending on alloy
Backgauge:
CNC programmable backgauge: Approximately 48" positioning
Bending Performances:
CNC controlled folding beam:
Positive and negative bending:
Automatic bend sequencing:
Programmable folding angles:
Radius bending capability:
Box forming capability:
Multi-step hemming:
Open hem capability:
Closed hem capability:
Electrical Requirements:
Voltage: 440–480V
Frequency: 60 Hz
Connected Load: 12.7 kW
Largest Load: 12.7 kW
Fuse: 35 Amp Slow Blow
Control Voltage: 24 VDC
Phase: 3 Phase
Equipped With
Beck Automation Control - Installed in 2025
Replacement machine new $750000+
Only 32' 14 gauge machine in the US
Beck Automation CNC control
Automatic positioning
Full-length support fingers
Color touchscreen interface
Recipe/program storage
Manual mode
Automatic mode
Material thickness compensation
Bend angle programming
Backgauge positioning
Diagnostic screens
Emergency stop
