NEW 2026 Lanhao LHA06- 2500A

Illinois, United States
603Listings|54Followers
Overview
Panel Benders

2026 LANHAO Model LHA06- 2500A Panel Bender, Bend W 98.43", Bend H 6.69", Bend L 49.21"

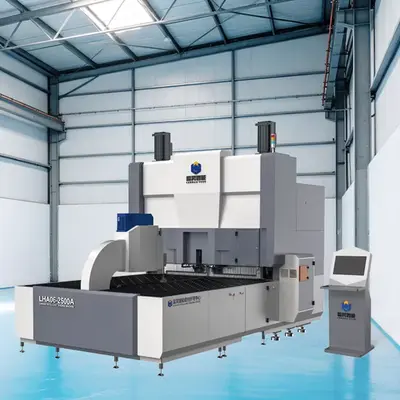

The Lanhao LHA06-2500A (produced by Nanjing Lanhao Intelligent Technology Co.) is a specialized CNC Automatic Tooling Change (ATC) Panel Bender. It is designed for high-precision, four-side forming of sheet metal enclosures (such as electrical cabinets and ventilation parts).

Nanjing Lanhao Intelligent Technology Co., Ltd. is located in the Jiangning Silicon Valley of Nanjing, a beautiful ancient capital with a history of ten dynasties, just 5 kilometers away from Nanjing South Station. The company was established on January 9, 2018, and boasts a top-tier domestic R&D team. Its core members have over a decade of experience in renowned domestic communication enterprises (such as ZTE and Huawei) and manufacturing companies, bringing extensive expertise in research, development, and production. The company specializes in manufacturing intelligent bending centers (supporting custom non-standard designs). Through unwavering dedication to craftsmanship, the company has accumulated robust technical capabilities and a comprehensive range of processing equipment, forming a well-established R&D system and continuously evolving innovation capacity. With a rich foundation in industrial manufacturing and mature production techniques, the company adheres to strict management systems and a cooperative philosophy of shared benefits. In recent years, it has maintained a strong momentum of vigorous development. The products developed by the company possess fully independent intellectual property rights, focusing on high-end intelligent equipment for Industry 4.0, and have achieved multiple core patented technologies.

Specs
Control
CNC (Lanhao proprietary)
Weight
19 Tons

Items LHA06-2500A
Max. bending speed 0.2 second/time
Max. bending width 2500mm (98.43")
Max. bending height 170mm (6.69")
Rated voltage 380v (or as required)
Total motor power 78Kw (104.6HP)
Average power about 3.0Kw (4 HP)
Noise about 50dB machine size 565*320*340cm
Total machine weight about 19Tons
Max. bending thickness
UST 515N/mm2 304 stainless steel 1.5mm (0.059")
UST 410N/mm2 cold panel 2.0mm (0.079")
UST 265N/mm2 aluminum panel 3.0mm (0.12")
Min. panel thickness 0.35mm (0.014")
Max. bending size 2500*1250mm (98.43" x 49.21")
Axis quantity standard synchronized 21 axis
