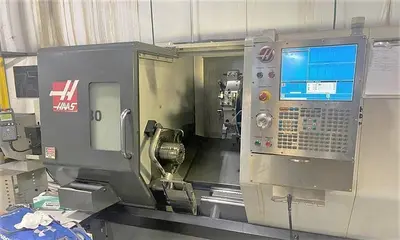

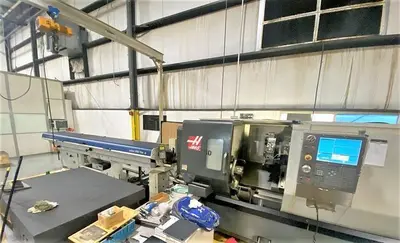

USED 2013 HAAS DS-30
Overview
Used CNC Lathe, equipped with subspindle, C-axis rotation, live milling, 31.75" max swing, 16" cutting dia, and 4,000 RPM spindle speeds. Features chip conveyor, parts catcher, and Iemca barfeed. Includes high torque live tooling.
Specs
Chuck Sizes Main / Subspindle Collet Chucks on both spindles
Maximum Swing 31.75"
Maximum Swing Over Cross Slide 20.75"
Maximum Cutting Diameter 16"
Maximum Distance Between Spindles 23"
Maximum Bar Capacity 3.03"
X-axis travel 12.5"
Z-Axis Travel 23"
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 4,000 RPM
Spindle Motor 30 HP
Subspindle Nose / Subspindle Bore A2-5" / 2.44"
Subspindle Speed 4,000 RPM
Subspindle Motor 20 HP
Rotary Tool Speed / Rotary Motor 4,800 RPM / 5 HP
Number of Turret Positions 12 Station Turret - VDI/BOT
Rapid Traverse Rates X, Y / Z 472 IPM / 1200 IPM
Machine Weight 14,600 lbs.
Equipped With
Subspindle
Full C Axis Spindle Rotation
Live Milling / Drilling Capable
Big Bore Spindle Option with 3" Bar Capacity

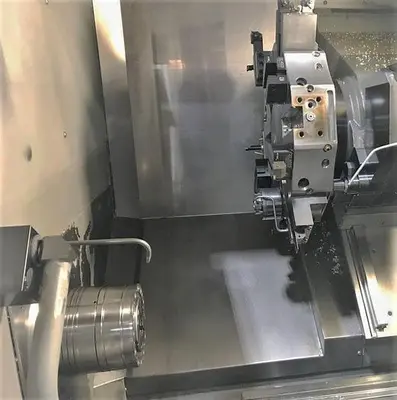

Collet Chucks on both Main and Subspindle

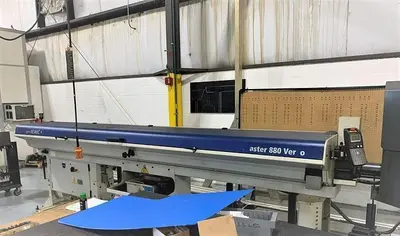

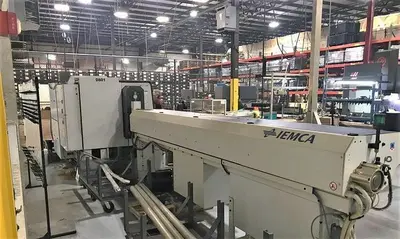

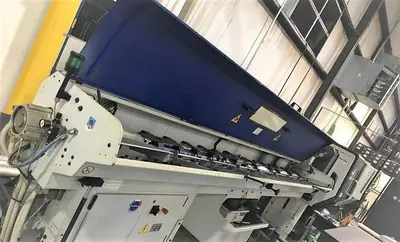

Iemca Master 880MP Barfeed System

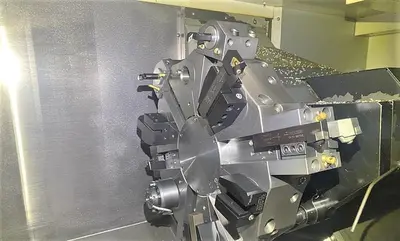

12 Station Hybrid Turret (6 Bolt On/6 VDI)
Chip Conveyor
Automatic Parts Catcher
High Torque Live Tooling
Automatic Tool Presetter
USB Port Interface
RS 232 Port Interface
Rigid Tapping
