USED 2015 PRINZING FME 4-600
Overview
Like New| Low Hours

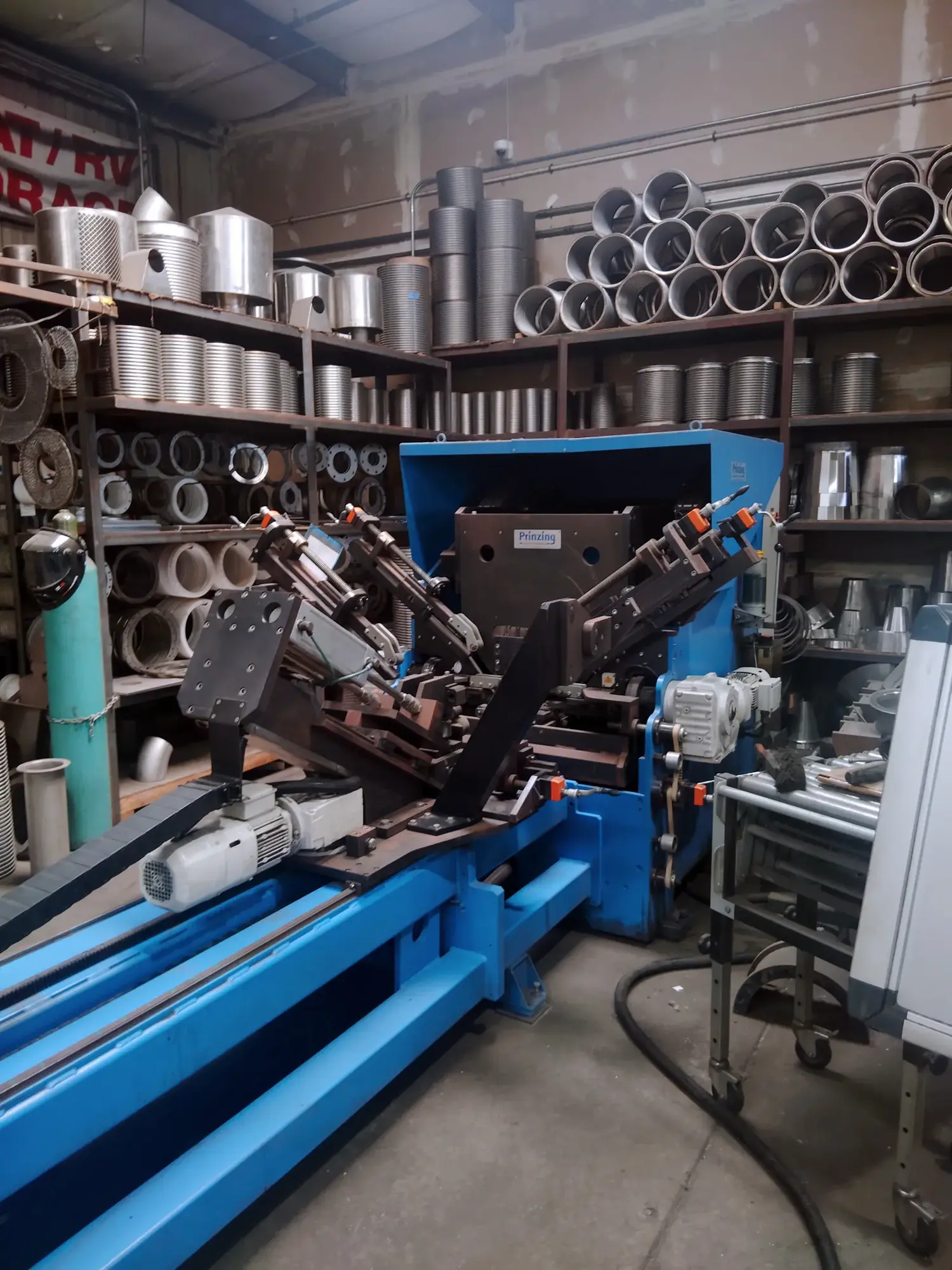

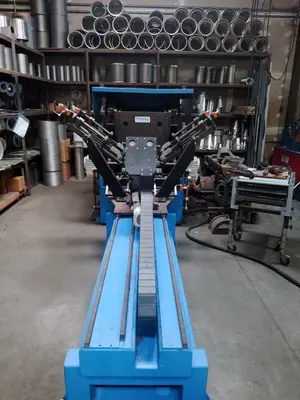

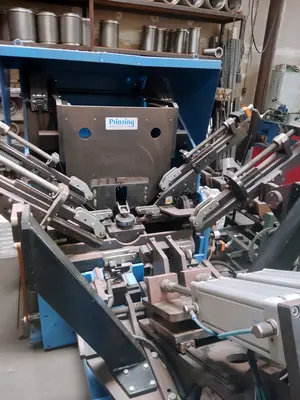

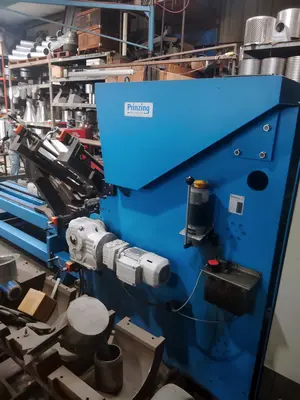

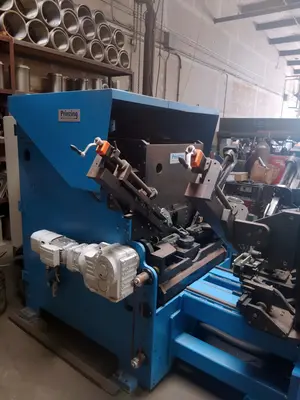

The Prinzing FME 4-600 Tube Flanging Machine (2015) is a heavy-duty automated sheet metal forming solution designed for precise, weld-free flange production. Ideal for HVAC ducting, pipe fabrication, ventilation systems, chemical piping, and custom metalworking, it cold-forms accurate flanged ends to improve efficiency, consistency, and production quality.
Specs
Maximum Mild Steel Thickness: 4.0 mm (0.157")
Maximum Stainless Steel Thickness: 2.5 mm (0.098")
Minimum Workpiece Diameter: 80 mm (3.15")
Maximum Workpiece Diameter: 600 mm (23.62")
Maximum Workpiece Length: 2,100 mm (82.67")
Working Depth: 80 mm (3.15")
Distance Between Roll Centerlines: 80 mm (3.15")
Variable Operating Speed: 0-30 meters/minute - (0-98.4 ft/min)
Equipped With
Touchscreen Operator Panel
200 Program Storage PLC
Variable-speed drive
Adjustable Pipe Guide
Pneumatic Counter-Holder
Rotating Tube Arrester
Lubrication System
Multi-Position Adjustable Parts Holder
Adjustable tooling setup
