NEW BIMBA 021-D

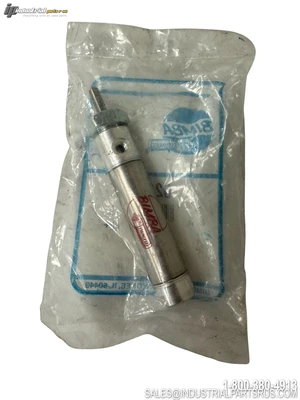

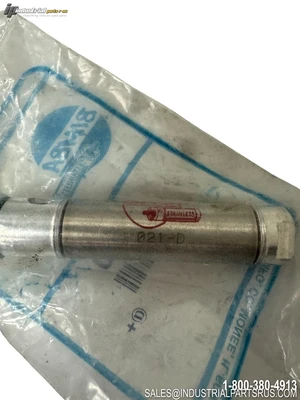

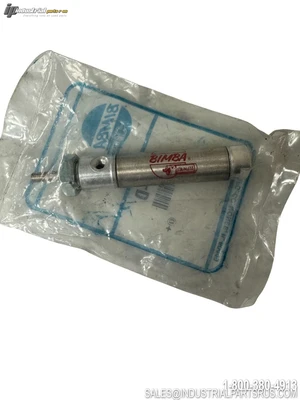

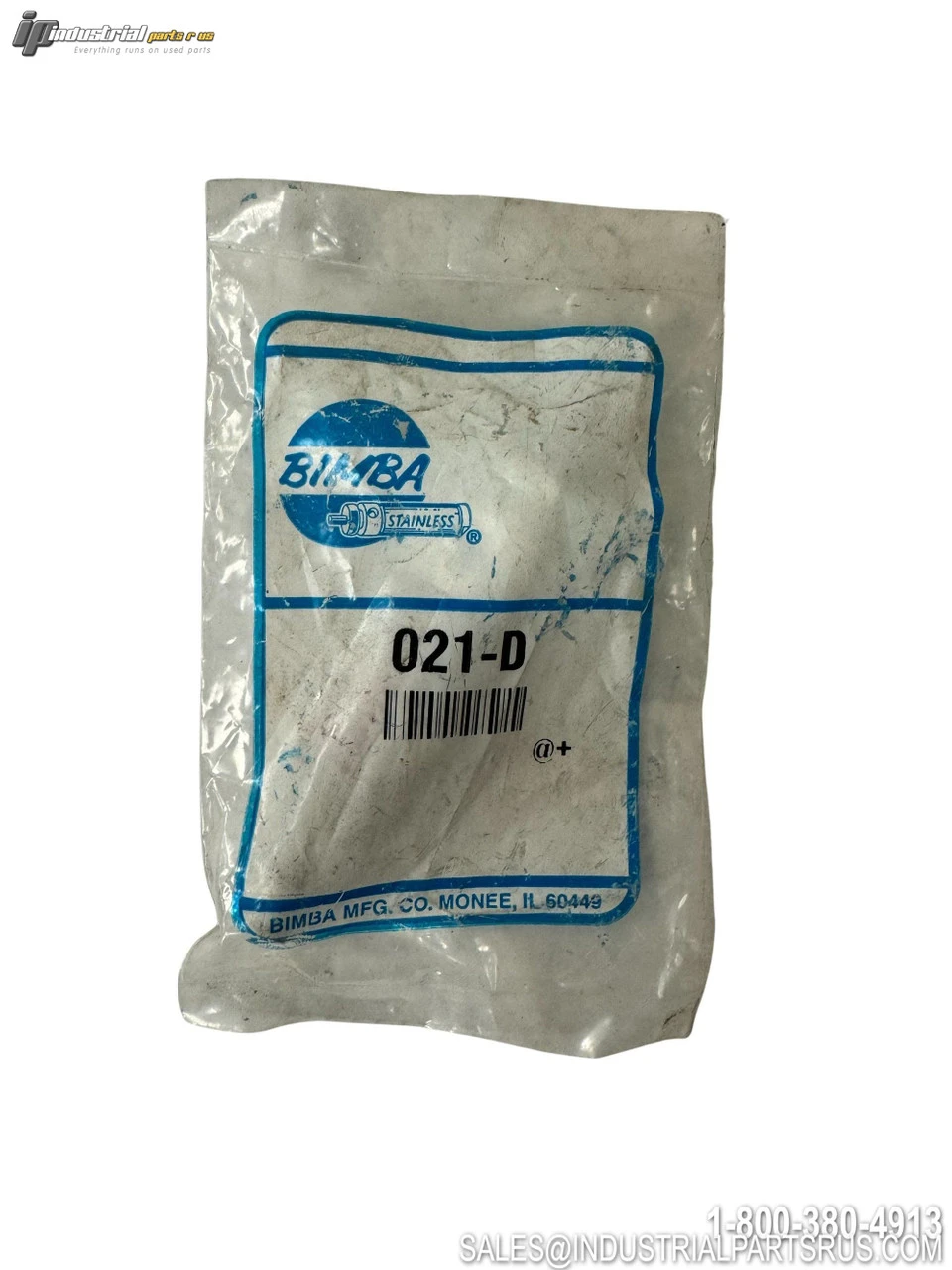

The Bimba 021-D is a double-acting Original Line pneumatic air cylinder from IMI Bimba's 02 series, featuring a 9/16" bore diameter and 1" stroke length. It is designed for front nose mounting and utilizes a stainless steel piston rod with standard #10-32 UNF-2A male threaded rod end and 7/16-20 threaded mounting nut. The cylinder is factory pre-lubricated with a permanent semi-synthetic grease, requires no additional lubrication during its service life, and is rated for up to 250 PSI maximum operating pressure. Suitable media is compressed air.
Specification
Value
Brand
Bimba (IMI Bimba)
Model / Part Number
021-D
Product Series
Original Line Air Cylinder Series – 02 Series
Cylinder Type
Double-Acting, Air Return
Bore Diameter
9/16" (0.5625 in)
Stroke Length
1" (1.000 in)
Mounting Style
Front Nose Mount
Port Size / Thread
#10-32 (2 ports)
Rod Thread
#10-32 UNF-2A (male)
Mounting Nut Thread
7/16-20
Rod Material
Stainless Steel (Carbon steel standard; SS standard on this bore/nose mount)
Max Operating Pressure
250 PSI
Operating Temperature Range
-20°F to +200°F (-28°C to +93°C)
Cushioning
None
Bumper
No
Magnetic Piston
No (Standard 021-D; see M-021-D for magnetic version)
Rod Wiper
No
Rod Style
Round
Repairable
Non-Repairable
Lubrication
Permanent factory pre-lubricated (semi-synthetic grease); no additional lubrication required
Weight
0.10 lbs (approx.)
We warranty all items for 30 days from date of purchase.
