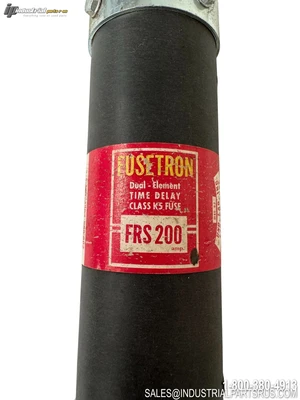

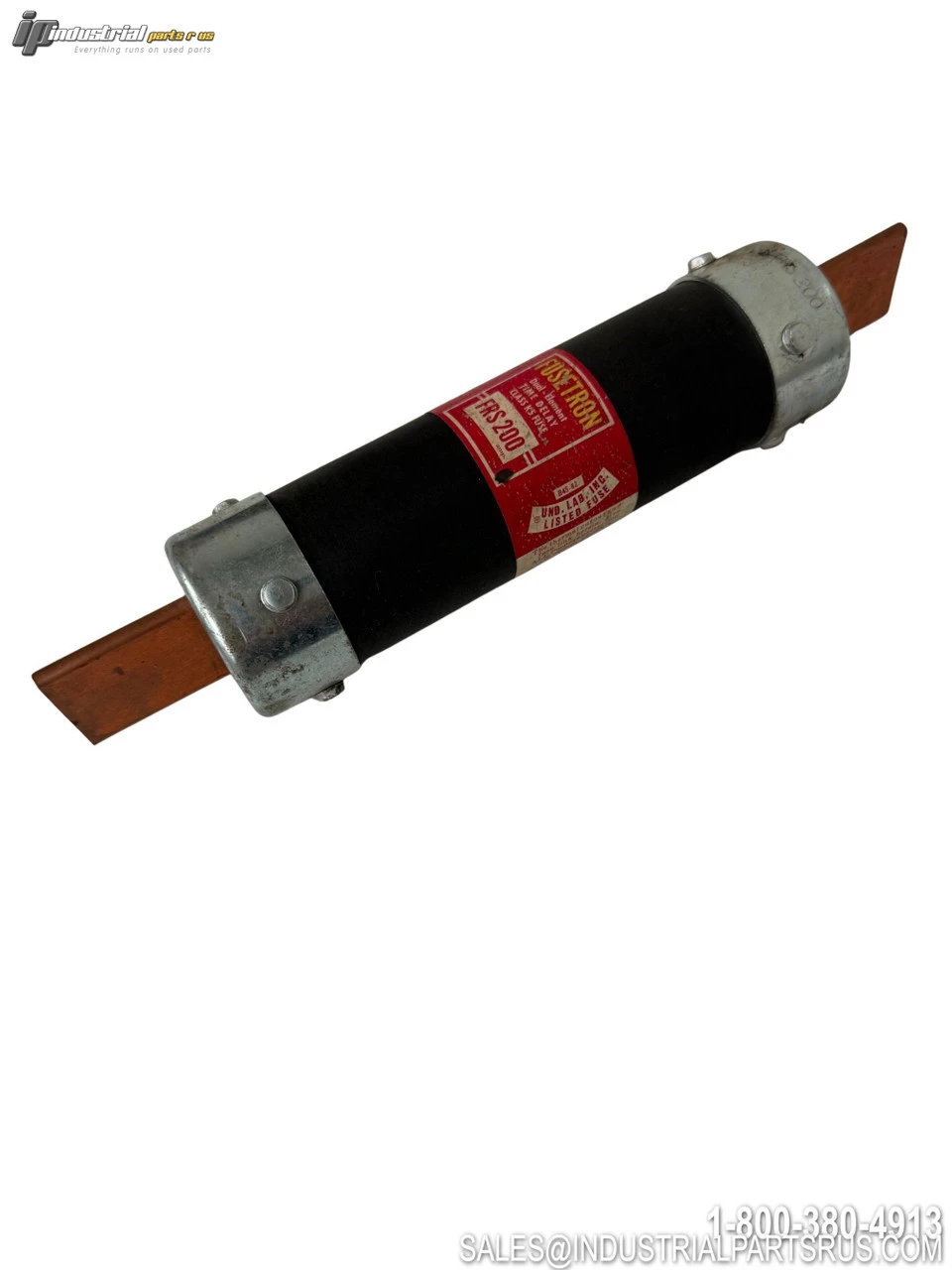

USED FUSETRON FRS200

The Fusetron FRS200 is a 200 Amp, 600 Volt, Class K5 dual-element time-delay current-limiting fuse manufactured by Bussmann (Eaton). As a non-rejection type predecessor to the FRS-R series, it fits standard (non-rejection) fuse holders and provides reliable motor overload, ground fault, and short-circuit protection. Its dual-element construction allows temporary inrush currents — such as those from motor or transformer start-up — to pass without nuisance opening, while still delivering fast response to sustained overloads and short circuits.
Specification
Value
Brand
Fusetron (Bussmann / Eaton)
Model / Part Number
FRS200
Amperage Rating
200 A
Voltage Rating (AC)
600 VAC
Fuse Class
Class K5
Element Type
Dual Element
Fuse Type
Time-Delay, Current-Limiting
Rejection Type
Non-Rejection (standard holder)
Interrupting Rating (AC)
200,000 AIC RMS Symmetrical
Response Time
10 seconds minimum at 500% rated current
Terminal / Connection Type
Blade (Knife Blade)
Indicating
Non-Indicating
Body Material
Fiberglass
Diameter
1.61 in
Overall Length
9.63 in
Approvals / Standards
UL Listed (Class K5, Guide JDDZ, File E4273), CSA Certified (Class 1422-01, File 53787)
Applications
Motor Control Centers, Combination Starters, Machinery Disconnects, Power Panelboards
Series / Sub-Brand
Fusetron FRS
We warranty all items for 30 days from date of purchase.
