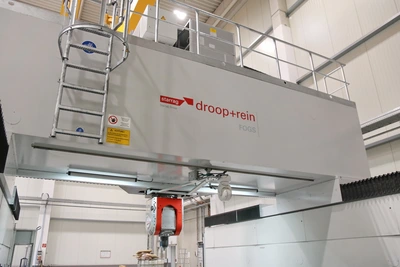

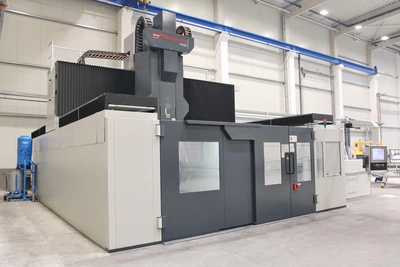

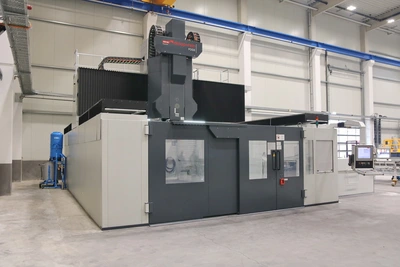

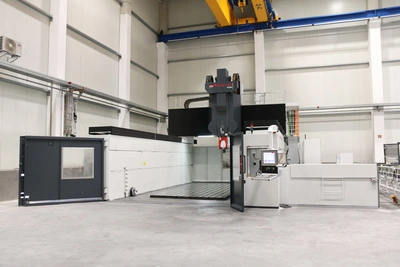

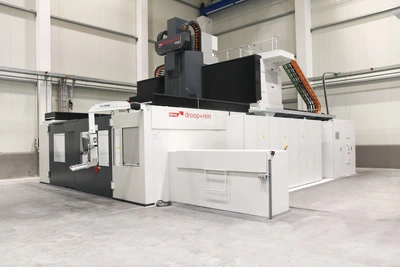

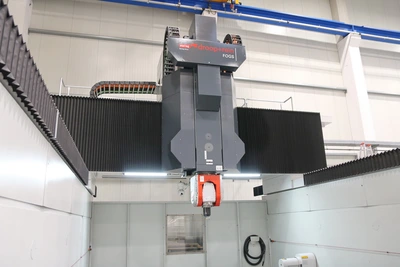

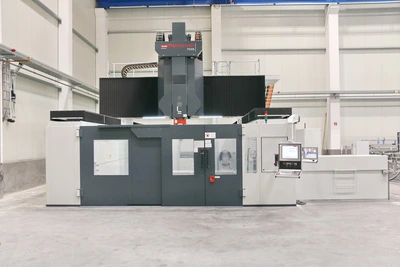

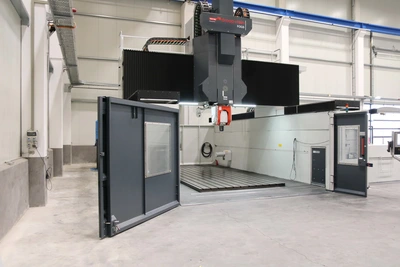

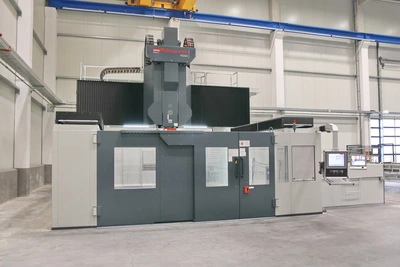

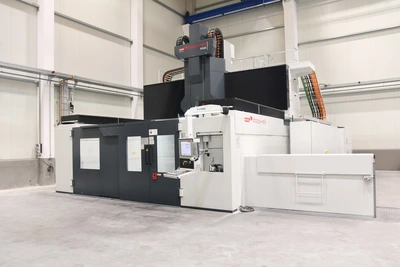

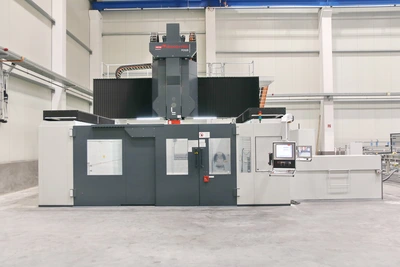

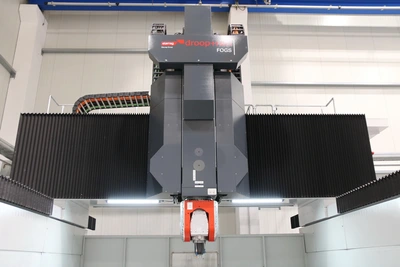

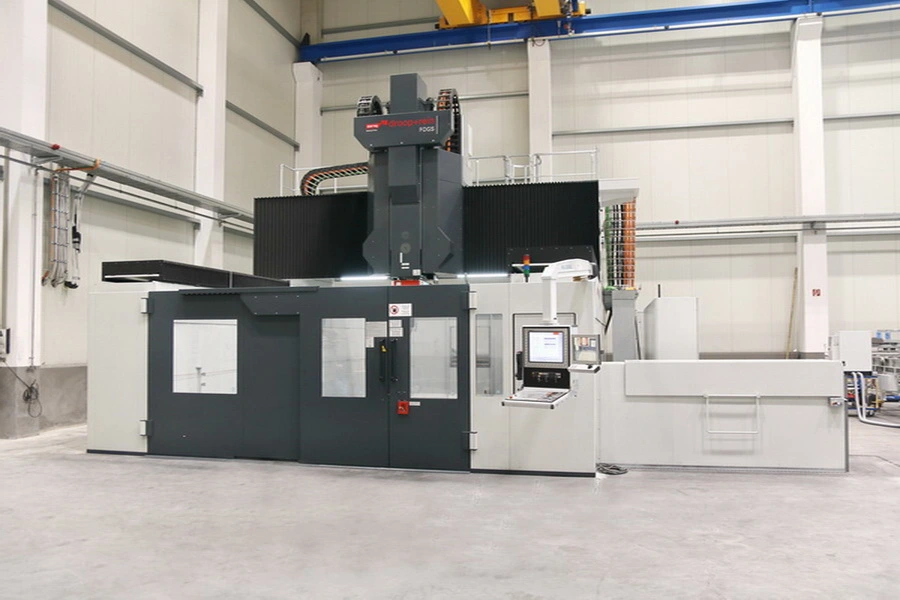

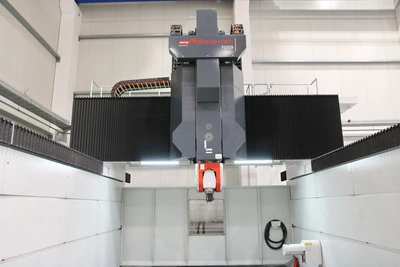

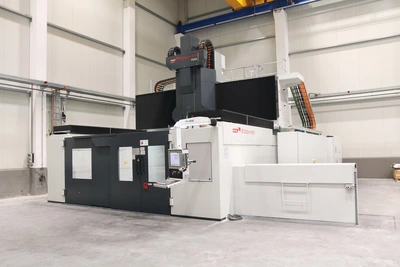

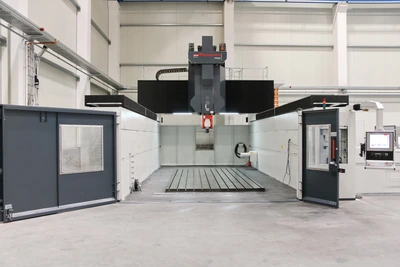

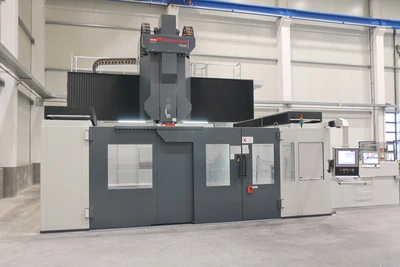

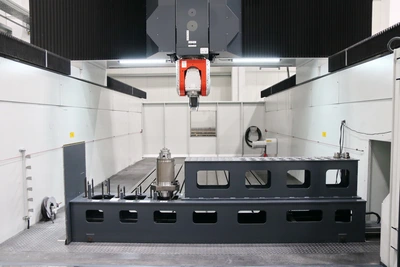

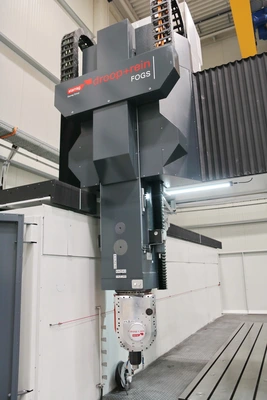

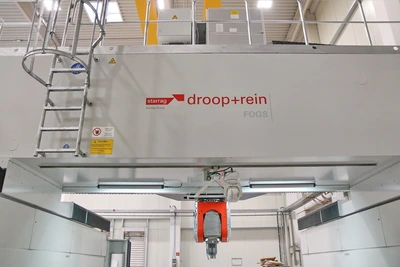

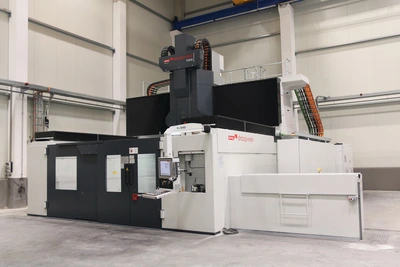

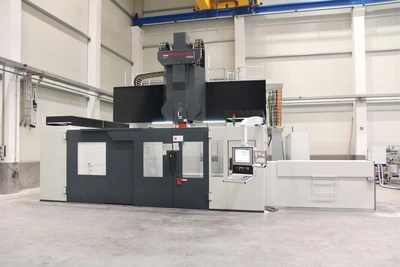

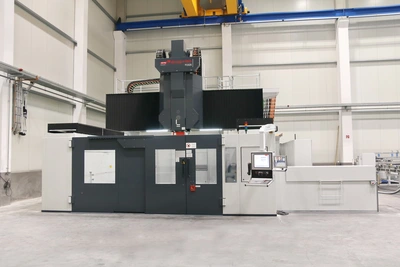

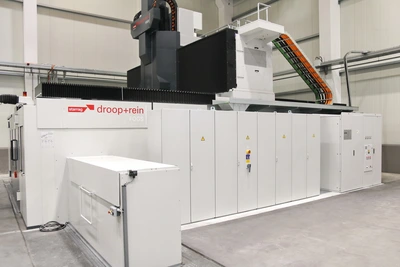

USED 2016 DROOP + REIN FOGS 40 60 C

Travels
X-Axis: 267.7″
Y-Axis: 157.5″
Z-Axis: 59.1″
B-Axis: +115º/-115º
C-Axis: ±200º
Distance Between Columns: 200.4″
Spindle Center to Table: 71.9″
High-Speed Spindle
Max Speed: 19,800 RPM
Power: 26.8 HP
Taper: HSK-A63
Heavy-Duty Spindle
Max Speed: 10,020 RPM
Power: 26.8 HP
Taper: HSK-A100

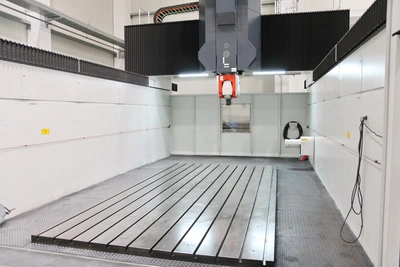

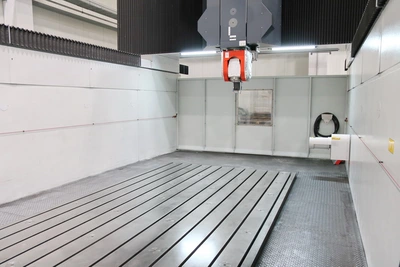

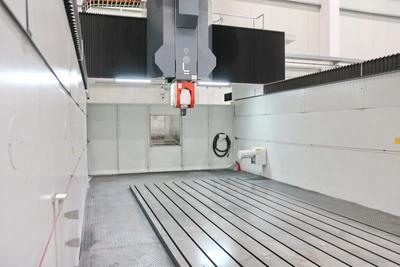

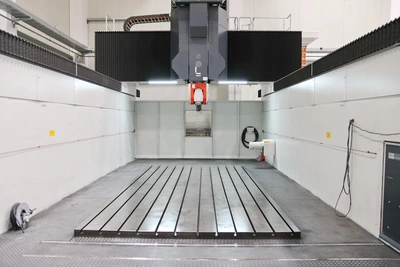

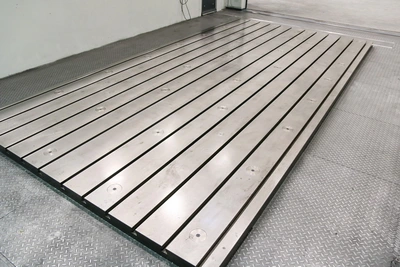

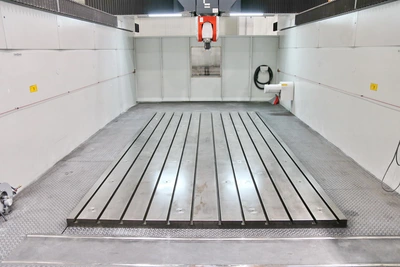

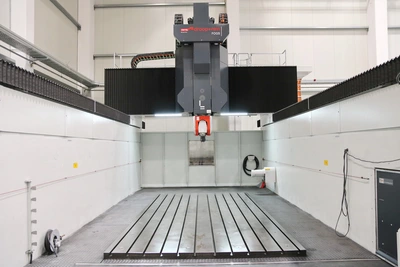

Work Table
Table Size: 236.2″ x 118.1″
Max Load: 110,231 lbs
Table Height Above Floor: 3.94″
T-Slots: 12
T-Slot Width: 1.10″
T-Slot Spacing: 9.84″
Feed Rates
Rapid Traverse (X/Y/Z): 1,575 IPM
Cutting Feed (X/Y/Z): 1,181 IPM
Rapid B/C Rotation: 4,320º/min
Feed B/C Rotation: 2,160º/min
Acceleration: 10.5 ft/sec sq
Machine Footprint: 492.1″ x 590.6″ x 275.6″
Equipped With

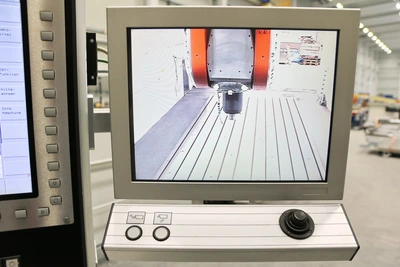

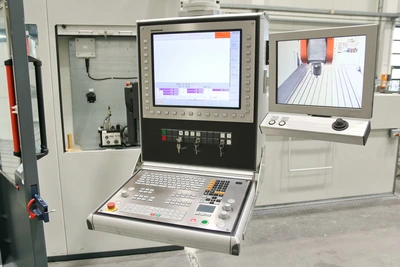

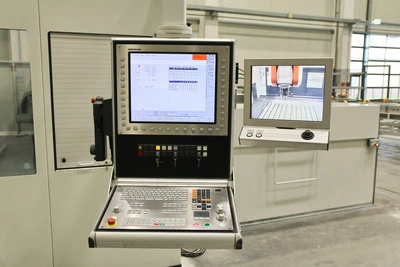

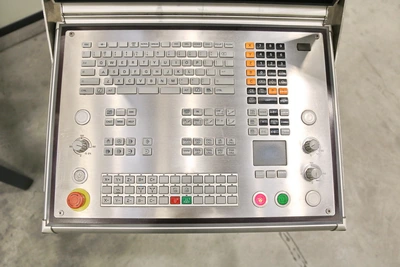

Heidenhain iTNC 530 HSCI CNC Control

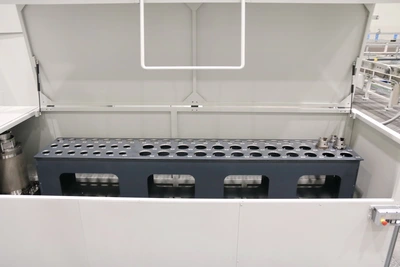

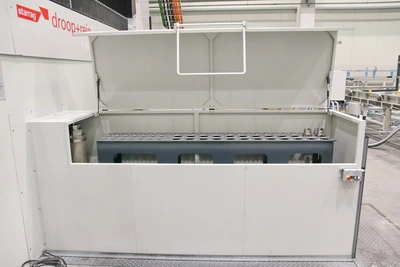

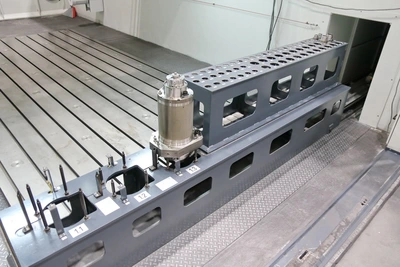

62 Position ATC

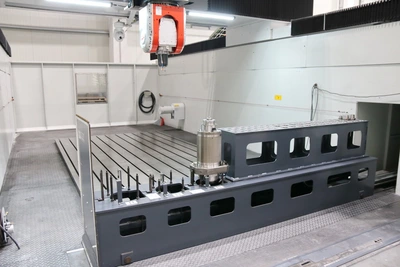

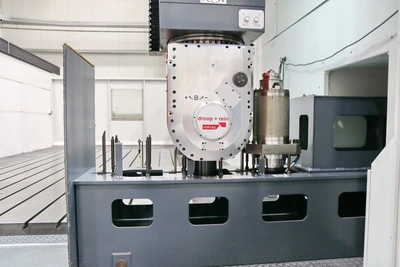

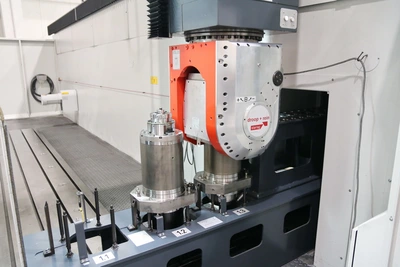

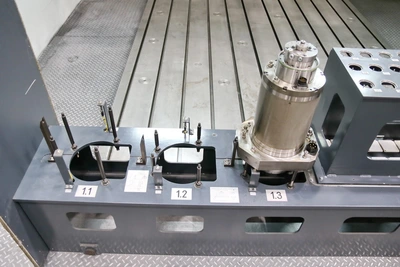

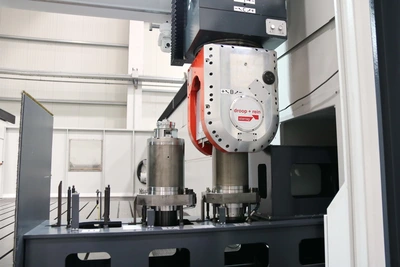

Interchangeable Spindle Head System

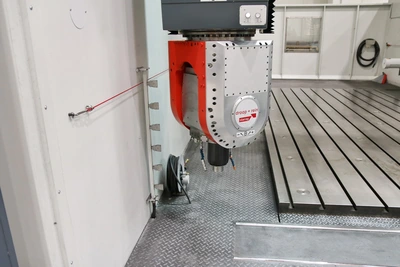

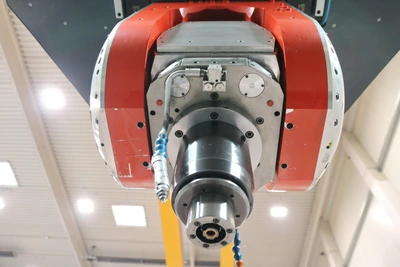

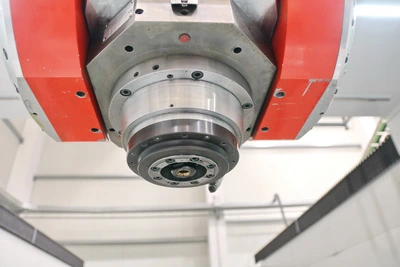

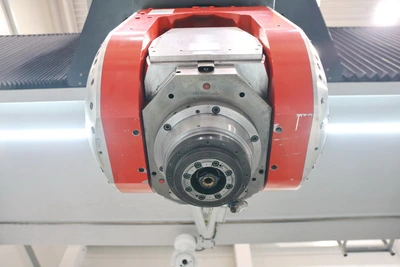

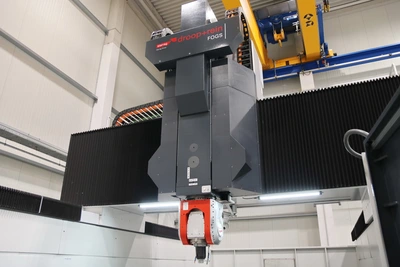

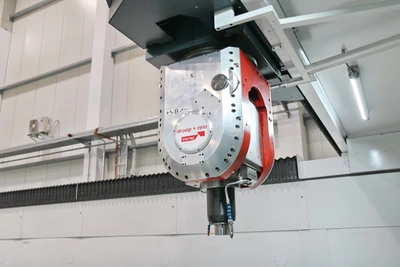

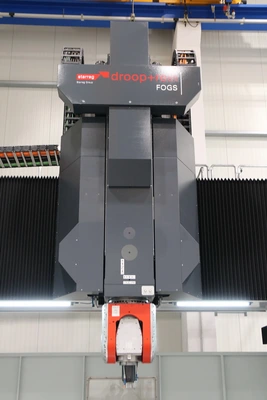

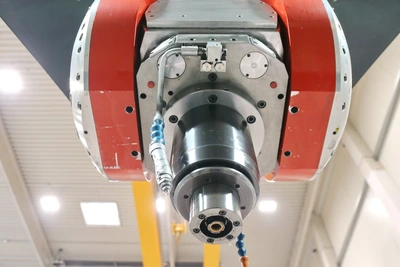

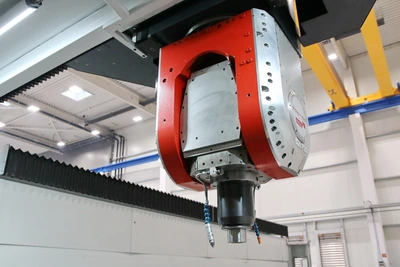

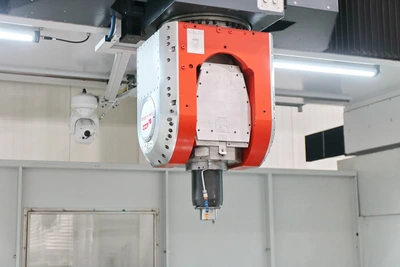

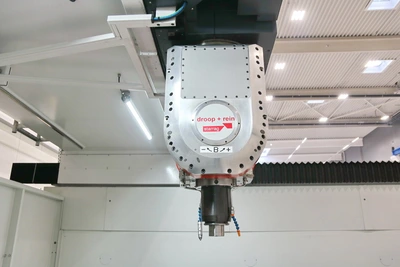

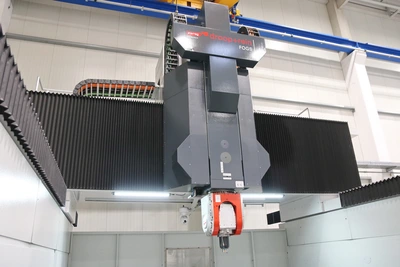

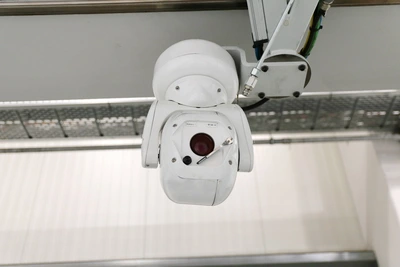

B-Axis Swivel Milling Head
C-Axis Rotary Table

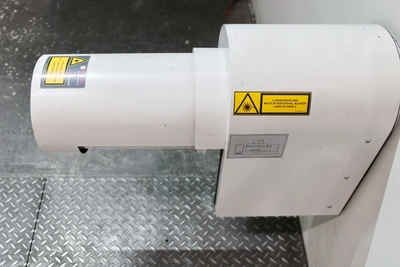

Blum Tool Measurement System
m&h RWP 20.41 Workpiece Probe

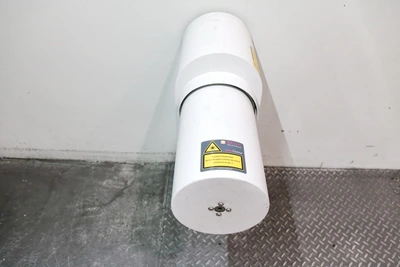

Extraction System (Ringler RI 333 D4 IE2)
