NEW POTTER & BRUMFIELD KUP-14D15-24

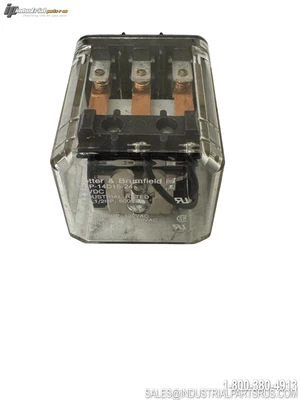

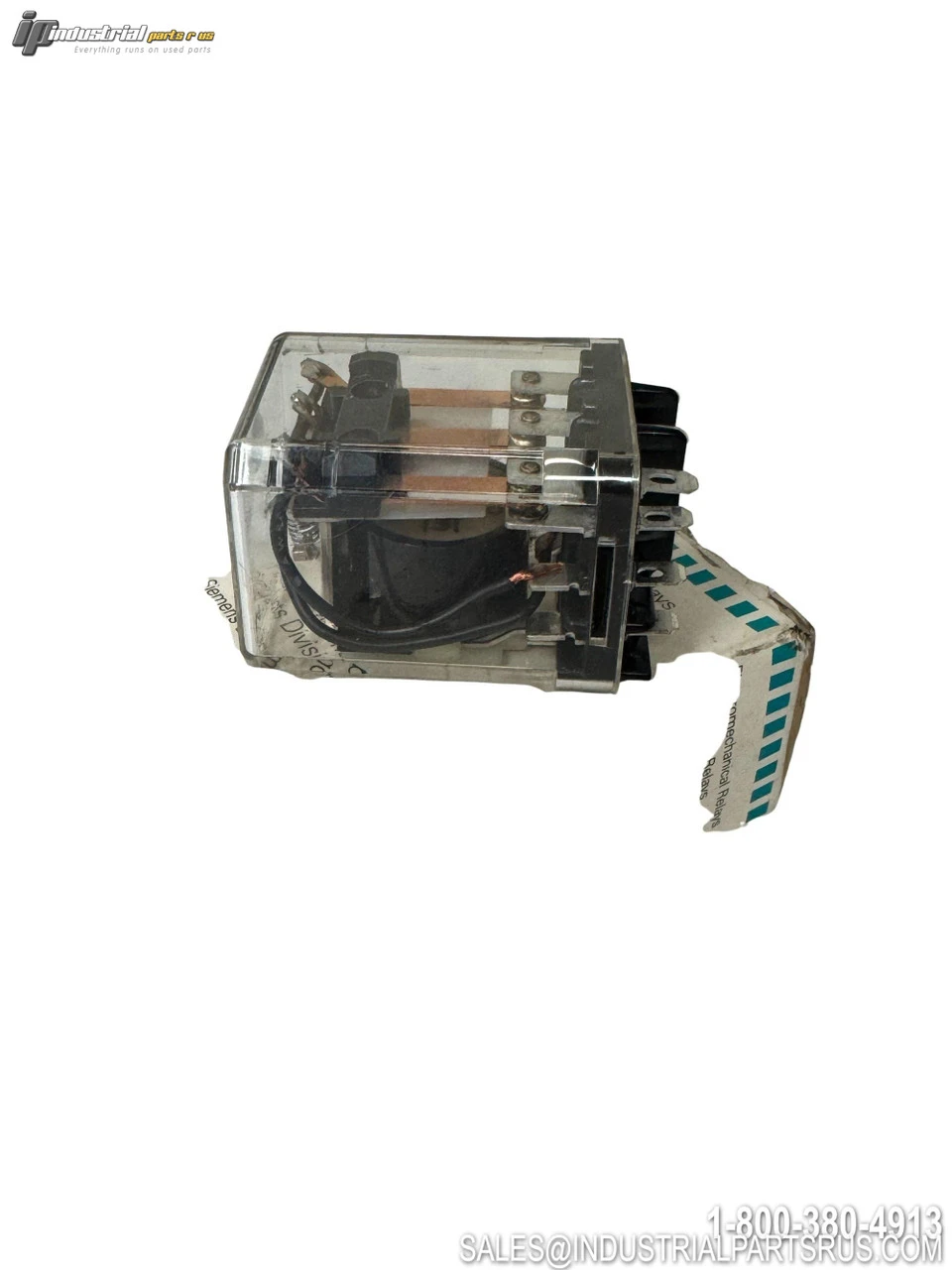

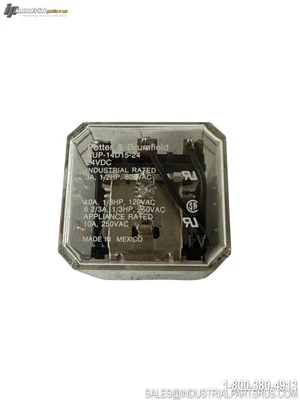

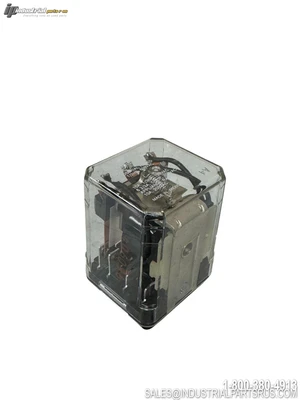

The Potter & Brumfield KUP-14D15-24 is a 3-pole double-throw (3PDT / 3 Form C) general purpose panel plug-in power relay from the KUP series, now manufactured under TE Connectivity. It features a 24VDC coil with 472Ω resistance, a 10A contact current rating with silver cadmium oxide contacts, and an 11-blade socket-mount plain case design with quick connect/solder terminals. This relay is widely used in industrial control panels, HVAC systems, and automation equipment where reliable switching of AC or DC loads is required.
Specification
Value
Brand
Potter & Brumfield
Model / Part Number
KUP-14D15-24
TE Internal Part Number
1-1393118-4
Series
KUP
Product Type
General Purpose Power Relay
Contact Arrangement
3PDT (3 Form C, Triple Pole Double Throw)
Coil Voltage
24VDC
Coil Resistance
472Ω ±10%
Coil Power (DC)
1.2 Watts
Contact Current Rating
10A
Contact Voltage Rating (AC)
120/250VAC
Contact Voltage Rating (DC)
32VDC max
Industrial HP Rating (120VAC)
1/3 HP @ 10A, 120VAC
Industrial HP Rating (250VAC)
1/3 HP @ 6-2/3A, 250VAC
Industrial HP Rating (600VAC)
1/2 HP @ 3A, 600VAC
Appliance Rating
10A, 250VAC
Contact Material
Silver Cadmium Oxide (AgCdO)
Terminal Type
0.187" (4.75mm) Quick Connect / Solder
Number of Blades
11
Mounting Type
Socket Mount, Plain Case (Panel Plug-In)
Enclosure
Clear Polycarbonate Dust Cover
Coil Pickup Voltage (min)
≤75% of nominal (≤18VDC)
Dielectric (Open Contacts)
1,200V rms
Dielectric (Adjacent Contacts)
2,200V rms
Dielectric (Contacts to Coil)
2,200V rms
Operating Temperature
-45°C to max rated ambient
Weight
3.0 oz (85g) approx.
RoHS Compliant
Yes
Certifications
UL, CSA
We warranty all items for 30 days from date of purchase.
