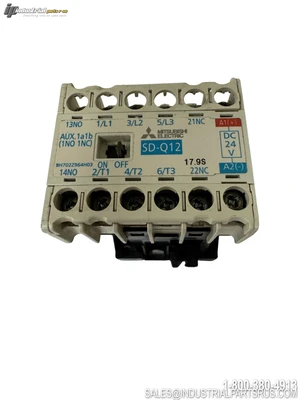

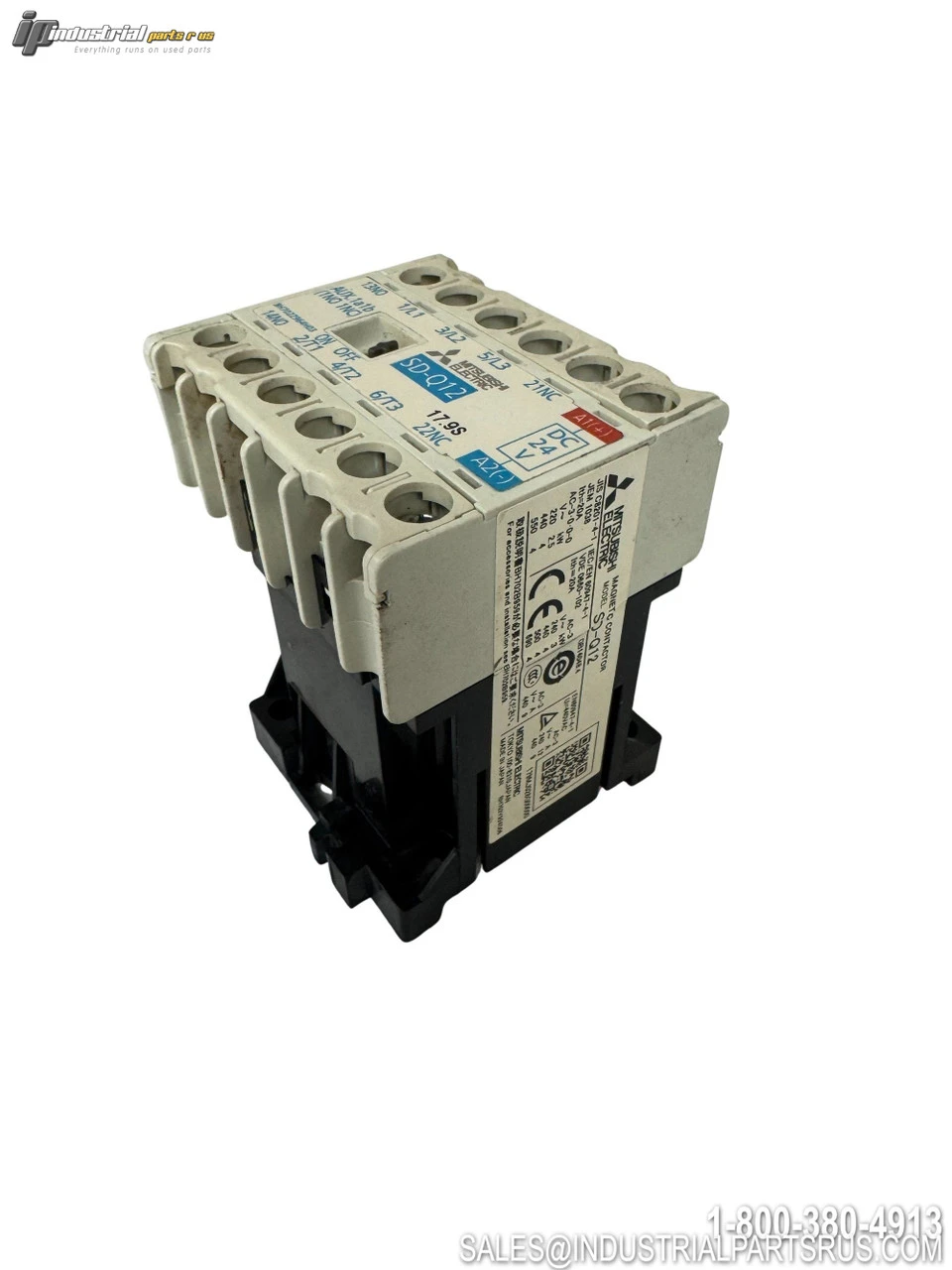

USED MITSUBISHI SD-Q12

The Mitsubishi Electric SD-Q12 is a high-sensitivity DC interface magnetic contactor from the SD-Q Series, designed for compact, high-performance DC operation. It features a 24VDC coil that can be directly driven by transistor (PLC) outputs at 24VDC / 0.1A, eliminating the need for an intermediate interface relay. The SD-Q12 is rated for 20A open heat dissipation with a standard 1NO+1NC auxiliary contact configuration and 3 main poles, and is suitable for motor control, heater switching, dynamic brake circuits, and circuit interruption applications. The unit is IP20 rated and constructed from flame-retardant glass-fiber reinforced thermoplastic (UL94), with finger-safe terminal covers and direct thermal relay mounting without an adapter.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
SD-Q12
Product Type
DC Interface Magnetic Contactor
Series
SD-Q Series
Coil Voltage
24VDC
Coil Power Consumption
1.3 W
Coil Drive Current
0.1 A (transistor output compatible)
Number of Main Poles
3
Contact Configuration
1NO + 1NC (1a1b standard)
Open Heat Dissipation Current
20 A
Rated Current (AC-3, 200–220V)
12 A
Rated Current (AC-3, 380–440V)
9 A
Rated Current (AC-3, 500–550V)
7 A
Rated Current (AC-1, Resistive Load)
10 A (AC 200–440V)
Rated Capacity (3-phase, AC-3, 200–220V)
2.5 kW
Rated Capacity (3-phase, AC-3, 380–440V)
4 kW
Aux. Contact Rated Current (AC-15, 220V)
3 A
Aux. Contact Rated Current (DC-13, 110V)
0.6 A
DC Motor (DC-2/DC-4, 2-pole, ≤24V)
12 A
DC Motor (DC-2/DC-4, 2-pole, ≤48V)
6 A
DC Motor (DC-2/DC-4, 2-pole, ≤110V)
1.2 A
Coil Voltage Tolerance Range
85–120% of rated voltage
Mounting Type
35mm DIN Rail (IEC/DIN standard) / Surface
Terminal Wiring
Screw-clamp
Coil Polarity
A1(+) / A2(−) polarized
Built-in Surge Absorber
Yes (standard)
Applicable Standards
JIS C8201-4-1, IEC 60947-4-1, EN60947-4-1, UL, CSA, CE, TÜV, GB, DIN/VDE, BS
Max Rated Voltage
690 V
Twin Auxiliary Contact Min. Level
5 VDC / 3 mA
Thermal Relay Mounting
Direct mount (no adapter required)
Operation Type
Non-Reversing, DC Operated
Flame Retardant Material
Yes (UL94 certified molded parts)
We warranty all items for 30 days from date of purchase.
