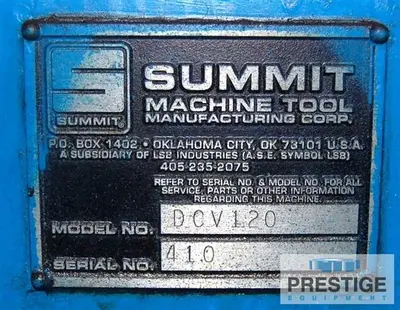

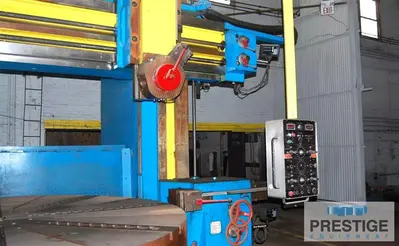

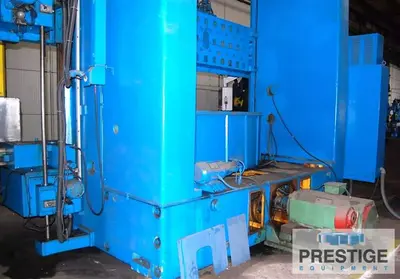

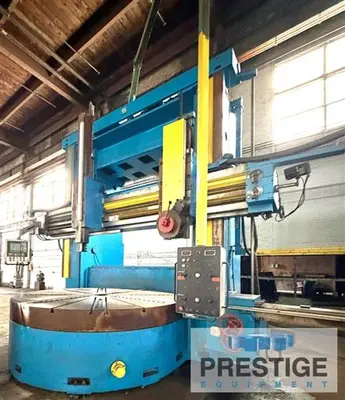

USED SUMMIT 120 VBM

SPECIFICATIONS:
Table Diameter: 118.11"
Max. Swing Capacity w/ Vertical Head: 129"
Maximum Swing with Side Head: 124"
Maximum Turning Height on Table: 90"
Maximum Work Piece Weight: 40,000 Lbs.
Turret Stroke: 30"

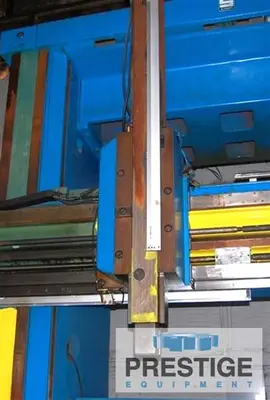

Ram Stroke: 47.25"
Swivel of Each Vertical Head: 35 R - 35 L
Table Speeds(Inf Variable): 1-92 RPM
Feeds (16): .002-.200 IPM
Rapid Traverse: 118 IPM
Approximate Dimensions: 208" x 220"
Overall Height: 212"
Approximate Weight: 105,000 Lbs.

Equipped With:
Manual Pendant & Fagor CNC Controls

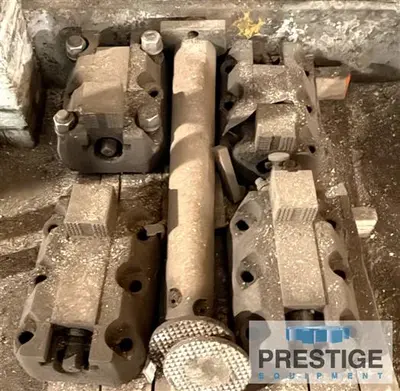

118" Table w/ 4-Top Jaws
Left Hand Ram Head w/ Fagor CNC Control

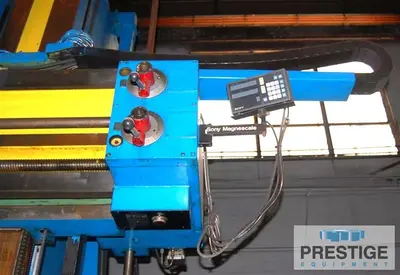

4-Axis Sony Digital Reaouts on Ram & Side Head

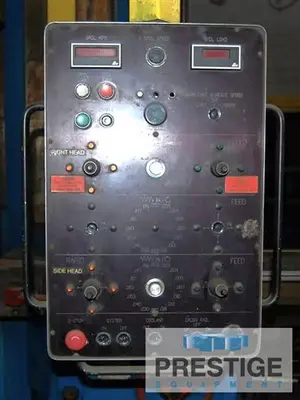

Right Hand Turret w/ Manual Pendant Control

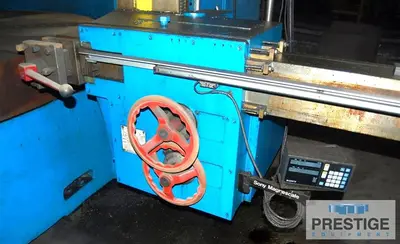

Right Hand Side Head w/ Manual Pendant Control
89 HP DC Table Motor

Note:
Right Ram and Side Head Are Manual w/ Pendant Controls

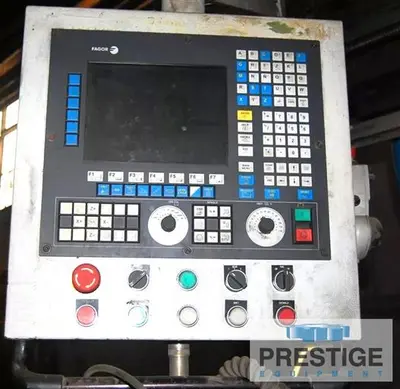

Left Ram Head Is CNC Controlled w/ Fagor CNC

Features:
Manual Pendant & Fagor CNC Controls
118" Table w/ 4-Top Jaws
Left Hand Ram Head w/ Fagor CNC Control
4-Axis Sony Digital Reaouts on Ram & Side Head
Right Hand Turret w/ Manual Pendant Control
Right Hand Side Head w/ Manual Pendant Control
