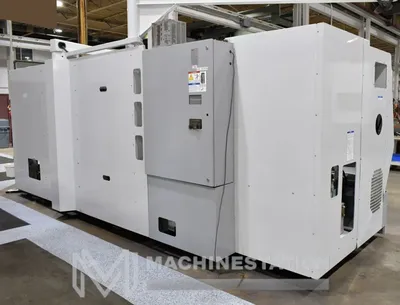

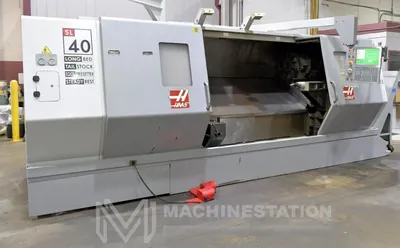

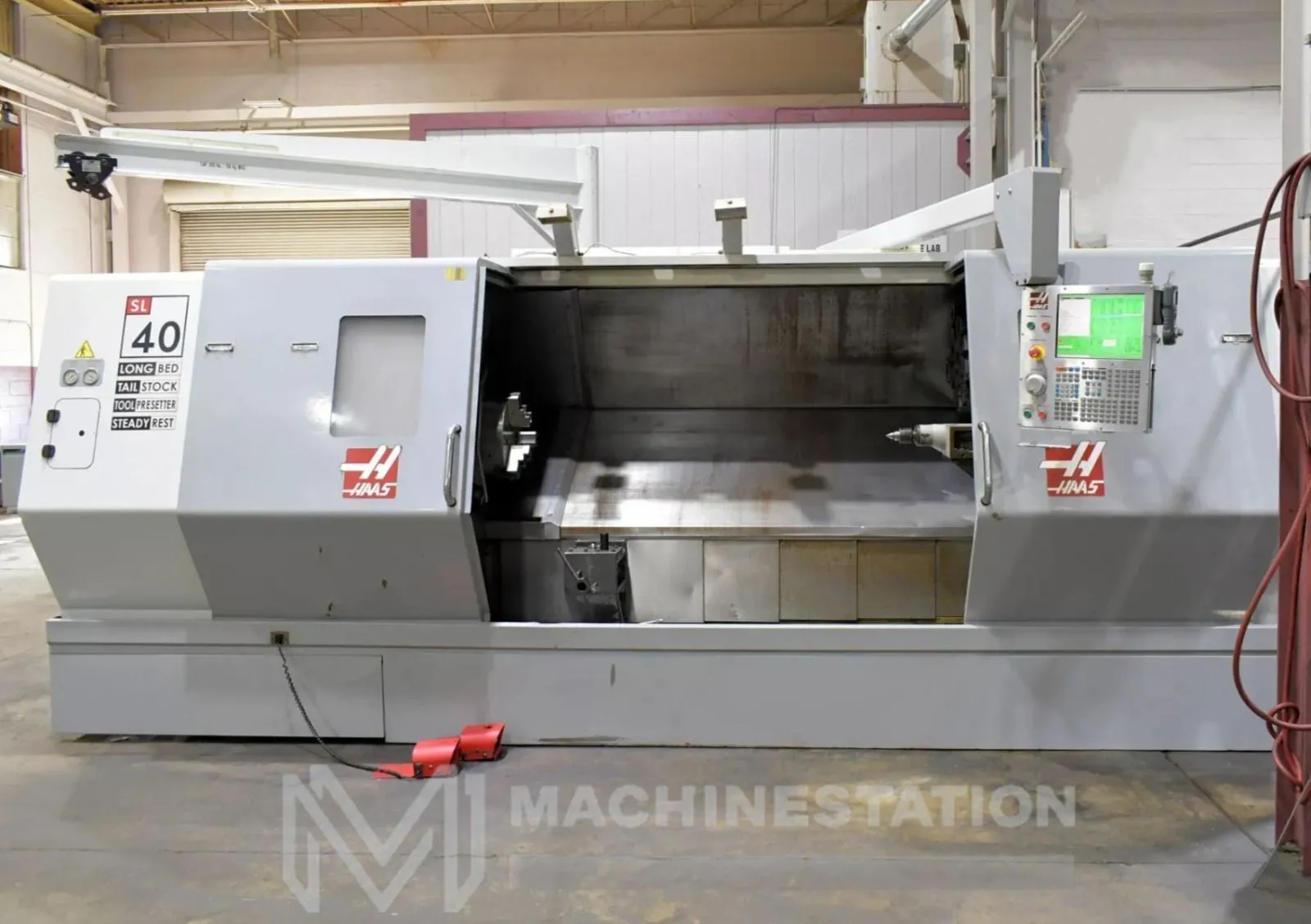

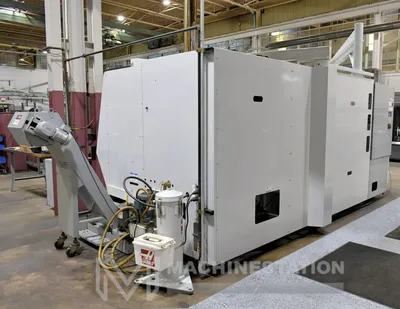

USED 2008 HAAS SL-40L

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

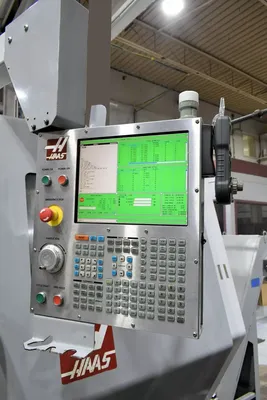

Haas CNC Control
80″ Long Bed
A2-8 Gear Head Spindle
10 Station Automatic Turret
USB Port

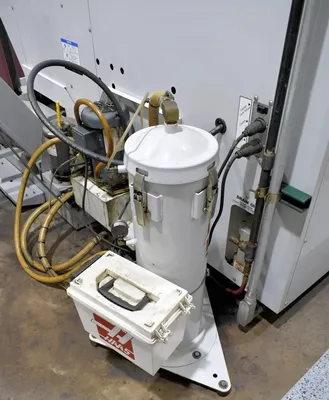

Coolant Tank

Capacity:
Max Turning Diameter : 25.5″
Max Swing Over Bed : 34.5″
Max Swing Over Cross Slide : 25.5″
Max Swing Over Tailstock : 25.5″
Max Turning Length: 80.0″
Max Bar Capacity : 4.0″

Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 80.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 320 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 40 HP

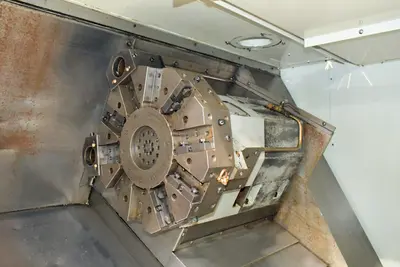

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second

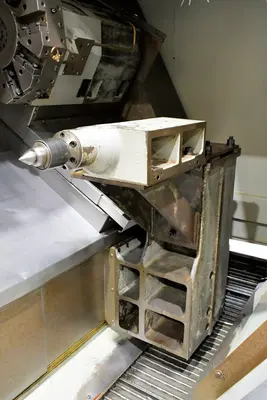

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5

General:
Power Source: AC 208v – 220v / 3-Phase / 60 Hz
Machine Dimensions: 254″ x 95″ x 105″ High
Machine Weight: 29,900 lbs Approx.
