USED 2025 HAAS ST-30
Overview

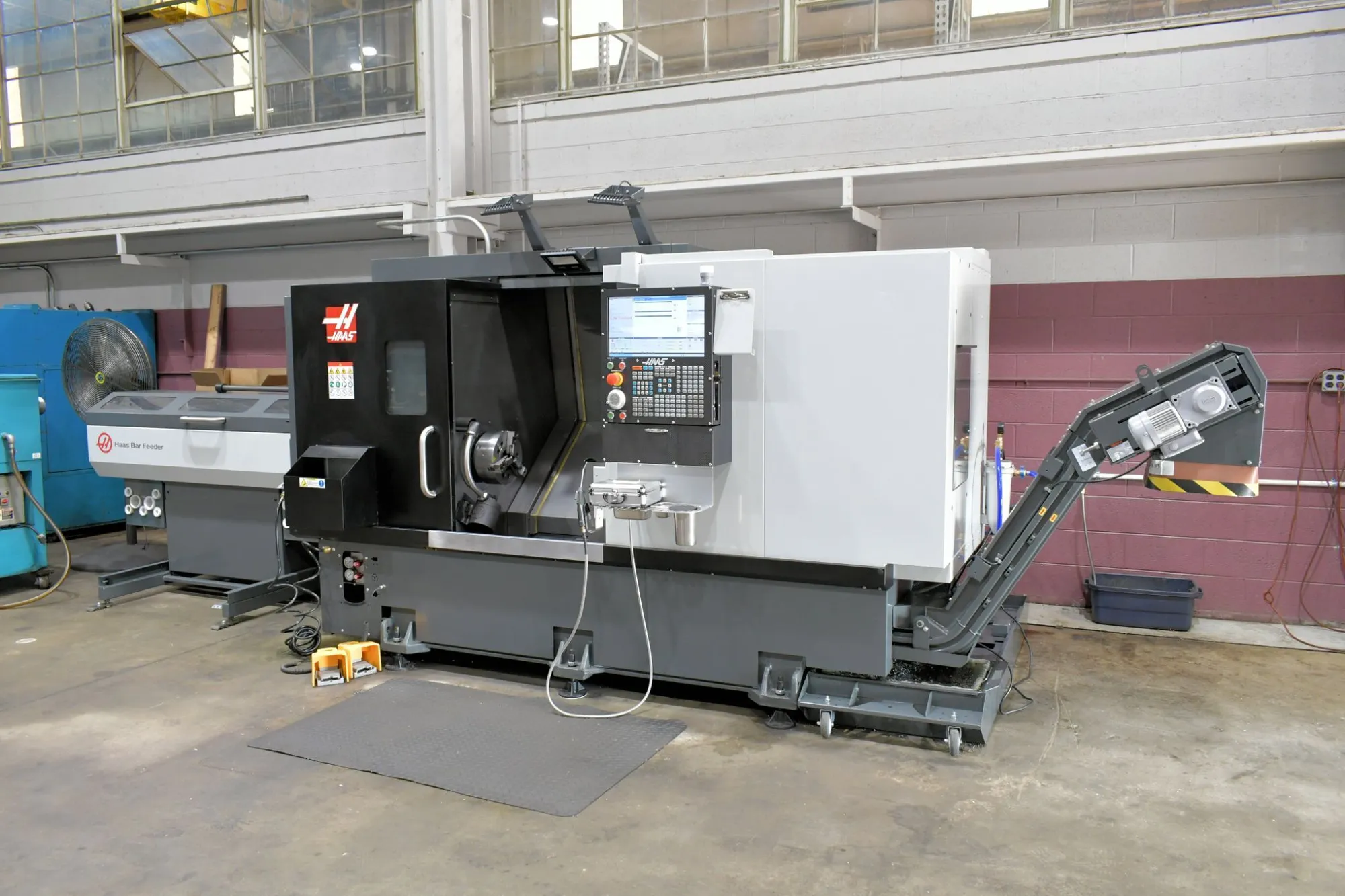

Used Haas ST-30 CNC Lathe, 21" swing, 32.5" machining length, 10" chuck, 3" bar capacity. Equipped with Haas V2 barfeeder, hydraulic tailstock, and chip conveyor. Features include rigid tapping and 24V lighting.
Specs
Brand: Haas
Model: ST-30
Specifications:
Chuck size: 10" hydraulic
Max. part swing: 21"
Max. cutting diameter: 15"
Max. cutting length: 32.5" (varies with workholding)
Bar capacity: 3"
X-axis travel: 9.4"
Z-axis travel: 32.5"
Rapid feed rates X & Z: 945 IPM
Max. thrust X: 4,100 LBF
Max. thrust Z: 5,100 LBF
Spindle nose: A2-6
Max speed: 3,400 RPM
Max torque: 300 FT-LBF @ 500 RPM
Spindle bore: 3.5"
Number of tools: 12
Boring bar rear clearance: 4"
Coolant capacity: 55 gallons
Air requirements: 100 PSI
Drive system: Direct speed, belt drive
Main motor: 30 H.P.
Voltage: 220 volt 3 phase
Dimensions: 171" x 90" x 98"
Weight: 10,900 LBS.
Equipped With
12 station BOT turret
Haas V2 automatic barfeeder 0.375" to 3" bar capacity, 48" max bar length, 10" minimum bar length, (30) 1" bar tray capacity
Programmable Hydraulic Tailstock
Key arrow belt type motorized discharge chip conveyor
Haas coolant sanitizer
55-Gallon coolant tank capacity
Single stage coolant pump
Automatic tool presetter
Rigid tapping
Parts catcher
CNC control cabinet cooler
24V high intensity lighting
1GB standard program memory
Visual part programming system
User-definable macros
Early power failure detection module
Ethernet interface
Haas Connect: remote monitoring
HaasDrop
Media display M-code; M-130
Phone charging stand
Safe run
Power surge protection
Machine sold As-Is Where-Is
