USED 2016 HAAS TL-1

California, United States
288Listings|92Followers
Overview
CNC Lathes

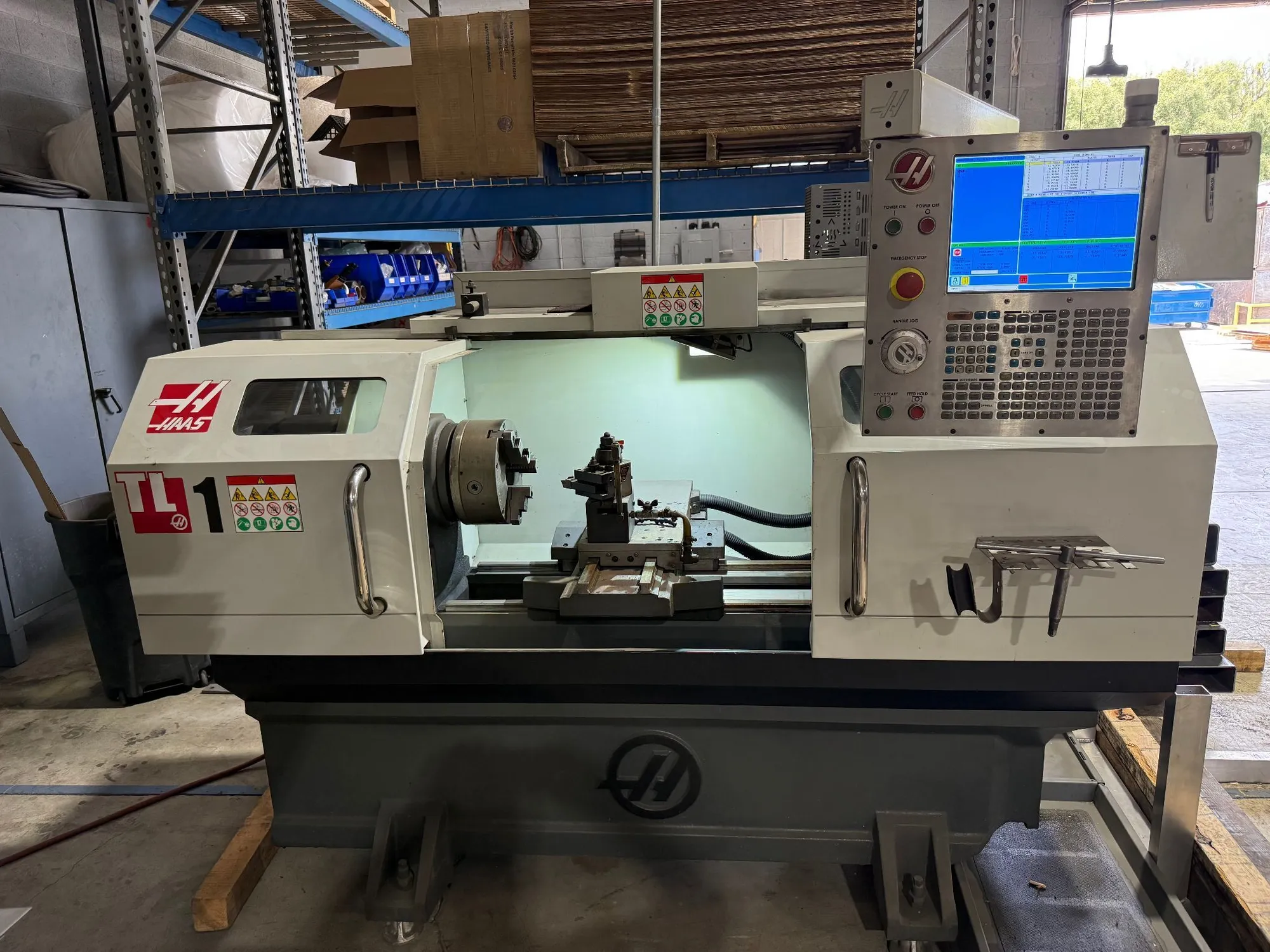

2016 Haas TL-1 CNC toolroom lathe for sale, serial number 3106705. Equipped with a 10" 3-jaw chuck, A2-6 spindle nose, and 2,000 RPM spindle. Spindle bore measures 3.5" with 3" bar capacity. Travels of 8" X-axis and 30" Z-axis support up to 30" max cutting length and 16" max cutting diameter. Includes manual MT4 tailstock, quick change tool post, Haas Intuitive Programming System, and 20-gallon coolant system with 1/4 HP pump. Excellent condition used Haas lathe, ready for toolroom or light production work.

Specs
Swing
20"
508 mm
Machining Length
762 mm
30"
# Axis
2
2
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
12 hp
8.9 kW
Max RPM
2,000 RPM
2,000 RPM
Turning Dia
16"
406.4 mm
Tailstock
Yes
Yes
Live Tooling
No
No
Sub Spindle
No
No
