New | Build-to-Order

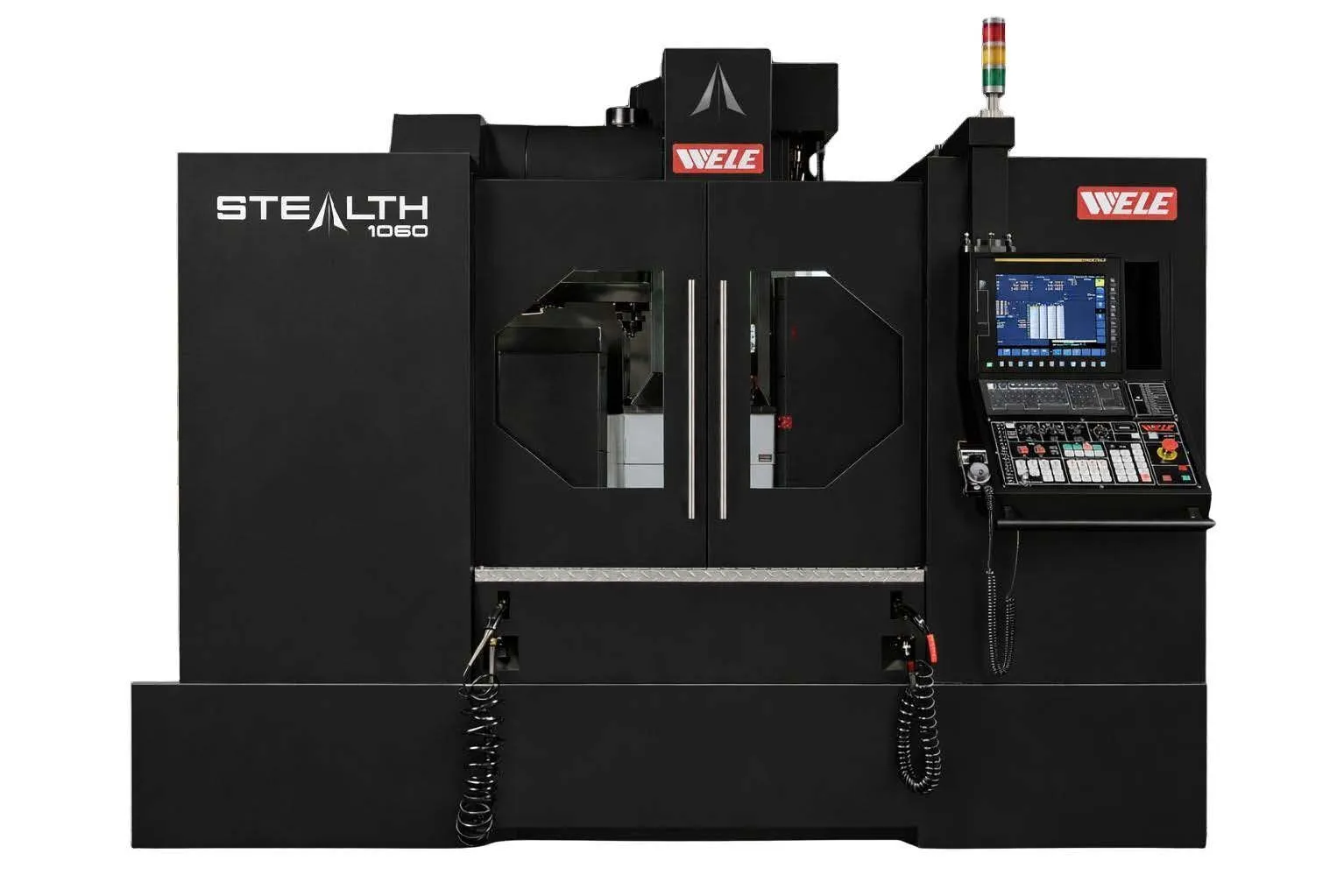

NEW JTEKT TOYODA Stealth 1060

Oklahoma, United States
128Listings|16Followers
Overview
Vertical Machining Centers

Machine Features Overview:

FANUC OiMF PLUS CNC Machine Control
High Speed – 25 HP - 12,000RPM Direct Drive Spindle – Big Plus CAT40 Spindle Taper
(30) Thirty Pocket Standard Automatic Tool
Precision Hand Scraped Machine Metal to Metal Contact Points for Long Term Accuracy, Vibration Dampening and Extended Machine Life
Built in WELE iSmartTune Controller Package with Tool Life Monitoring and ATC Recovery Suite
Standard FANUC Package Includes Upgraded 400 Block Look Ahead Function and 2MB Memory Standard
Embedded Machine Operator and Maintenance Manuals Resident on Controller
Dual Chip Auger with X-Axis Auger as Standard Feature. Includes Coolant Wash Down
300 PSI Coolant Through Spindle System Included
BLUM ZX-Speed ATLM & TC50 Probe Included

Specs
SPINDLE TAPER
CAT40 (BIG PLUS)
CAT40 (BIG PLUS)
X Travel
40.2"
1,021.1 mm
Y Travel
23.6"
599.44 mm
Z Travel
23.6"
599.44 mm
TABLE (L)
45.2"
1,148.1 mm
TABLE (W)
23.6"
599.44 mm
SPINDLE SPEED
12,000 RPM
12,000 RPM
SPINDLE HP
25 hp
18.6 kW
MAGAZINE CAPACITY
30
30
