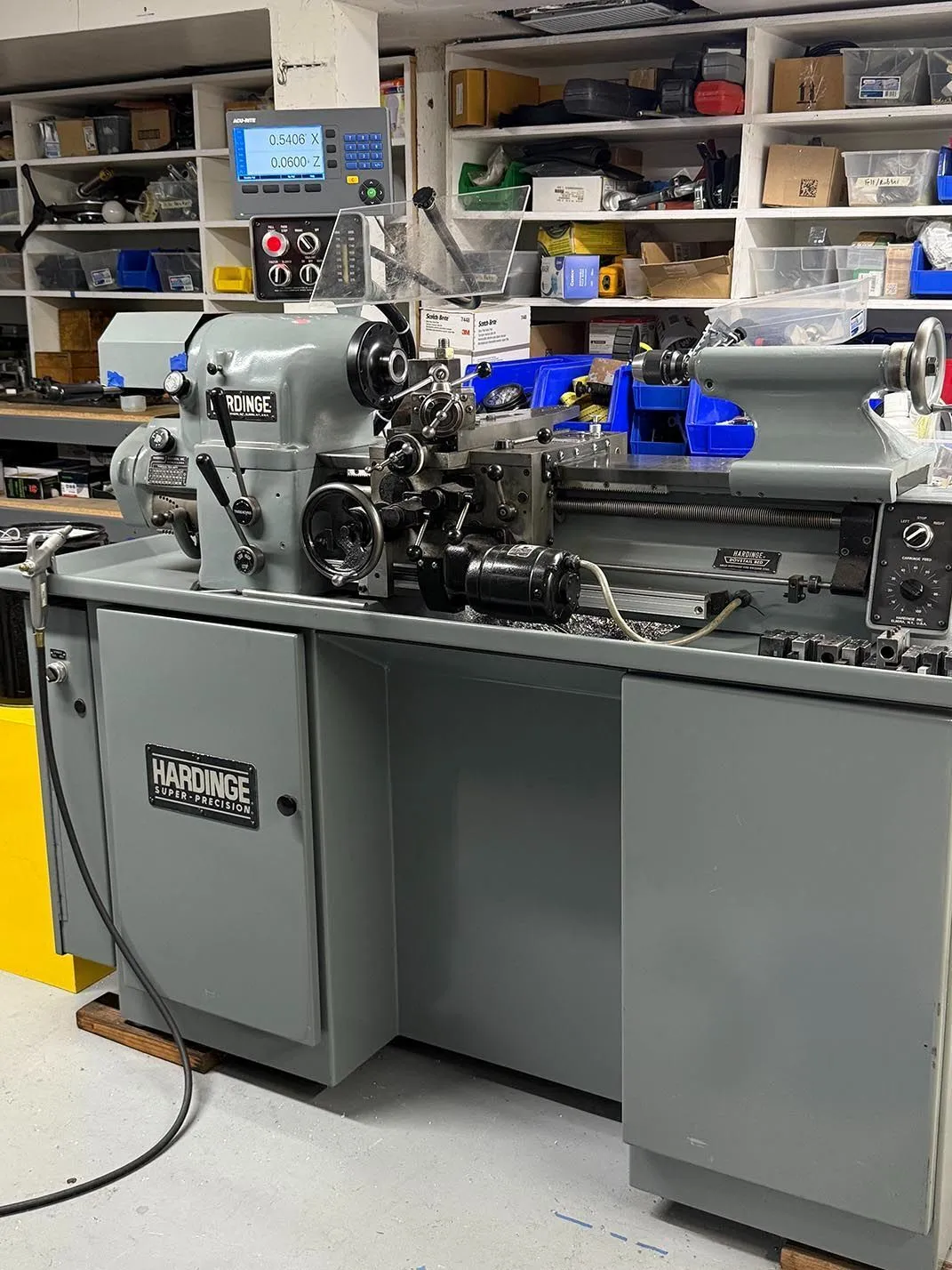

USED 1985 HARDINGE HLV-H
Overview
Hardinge HLV-H precision lathe, reconditioned in 2023. Features include reground bed plate, new Turcite under carriage, Acu-Rite digital readout, quick change toolpost, collet closer, 3-jaw chuck, and a coolant system. Perfect for toolroom tasks!
Specs
HARDINGE SUPER-PRECISON TOOLROOM LATHE
MODEL: HLV-H, S/N: HLV-H-11481-T, NEW: 1985
MACHINE RECONDITIONED IN 2023
SPECIFICATIONS:
SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
PRELOADED BALL BEARING
SPINDLE NOSE THREAD .............. 2-3/16" - 10 RH
INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"
CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.
Equipped With
EQUIPPED WITH:
- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE
- HARDINGE CROSS SLIDE REGROUND
- ACU-RITE TWO AXIS DIGITAL READOUT
- HARDINGE LEVER TYPE 5C-COLLET CLOSER
- HARDINGE QUICK CHANGE TOOLPOST WITH HOLDERS
- HARDINGE 3-JAW CHUCK
- LIVE CENTER FOR TAILSTOCK
- JACOBS DRILL CHUCK FOR TAILSTOCK
- COOLANT SYSTEM
- MISCELLENEOUS 5C COLLETS
- 1.5 HORSE POWER TWO SPEED MOTOR
