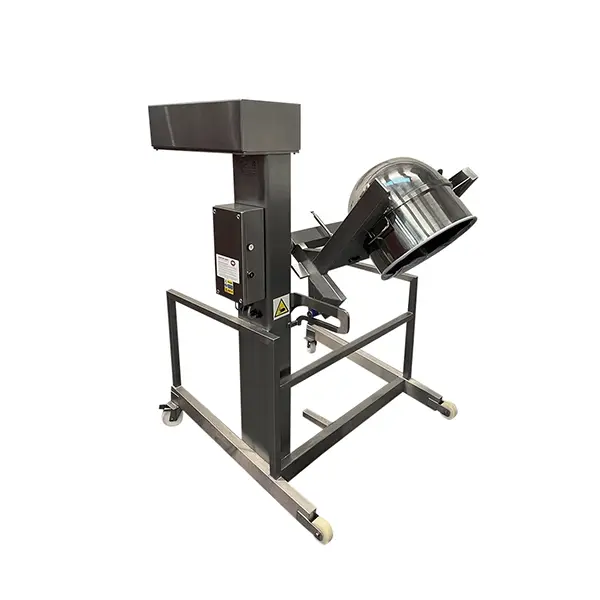

Hobart Bowl Tipper
Overview
The Hobart Mixing Bowl Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Compatible with removable bakery bowls
-The tipping height is 63” (1600mm)
-Safe working load of 330Lb (150Kgs)
-The machine is mobile as standard, with fixing brackets provided to fix the column dumper into position if required.
-304 stainless steel
-Welded construction throughout
-Motor gearbox chain-driven system
Specs
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – Grade 304
-Lifting capacity – 320 lb (150 kg)
-Tipping height – 63” (1600 mm)
-Tipping reach – Customized to your application with a chute if required
-Tipping angle – 130 degrees (40 degrees from horizontal)
-Overall machine height – 94.4” (2397 mm)
-Container suitability – Hobart mixing bowl (or similar container)
-Base – Mobile base (with fixing brackets on base frame)
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min
Customization options (please ask on our inquiry form):
-Guarded machine
-Fixed base machine
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
