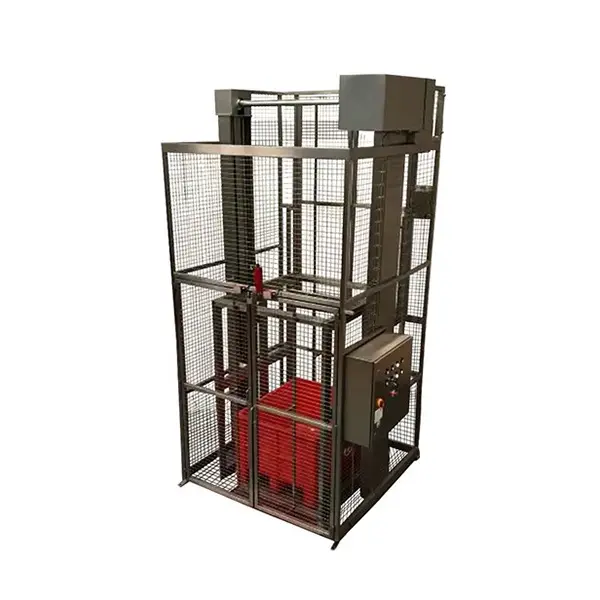

Goods Elevator
Overview
This Goods Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Suitable for industry standard pallets
-Lift height 60.8” (1545 mm)
-Lift capacity 2200 lb (1000 kg)
-Overall height 151.6” (3850 mm)
-Platform size 51.1 x 43.3” (1300 x 1100 mm)
-Machine handing – Right hand side
-Maximum headroom 157.4” (4000 mm)
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
-Perimeter guarding
Specs
-Controls/orientation – Left-hand side
-Stainless steel – AISI 304
-Lift height 60.8” (1545 mm)
-Lift capacity 2200 lb (1000 kg)
-Overall height 151.6” (3850 mm)
-Platform size 51.1 x 43.3” (1300 x 1100 mm)
-Maximum headroom 157.4” (4000 mm)
-Base – Fixed base arrangement
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min (6.4 m/min)
Customization options (please ask on our inquiry form):
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
