Starlinger Pelletizing Line, WS4011

STARLINGER PET RECYLING & PELLETIZING LINE

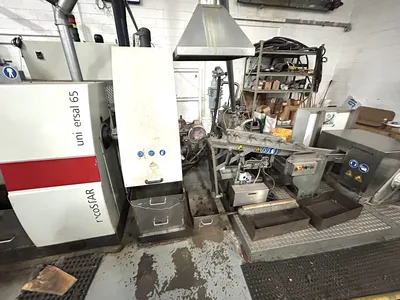

         Type: RECO-STAR Universal 65 VAC

         Year: 2013

         Versatile Single-Shaft Extruder



ReCycle Materials:

         Fiber, nonwoven, tapes, fabric, injection moldings parts and start-up lumps



         Final Product:

         Uniform, Melt Filtrated and Dry Pellets (chips for re-use)

         Capacity 150 kg/h (PP, LDPE, PE)

         consisting of:

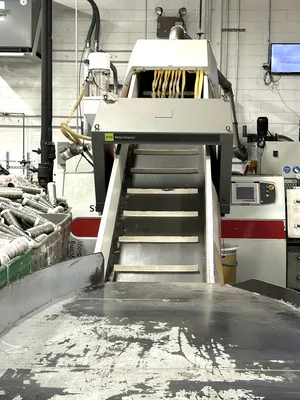

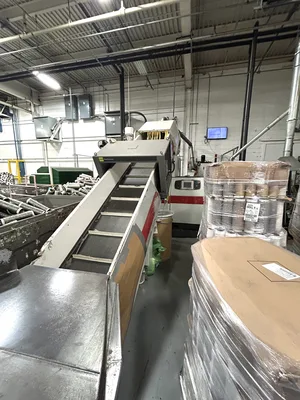

         Conveyor Belt, Type CB800, Length 4800 mm

         Metal Detector, passing height 540 mm, width 1040 mm

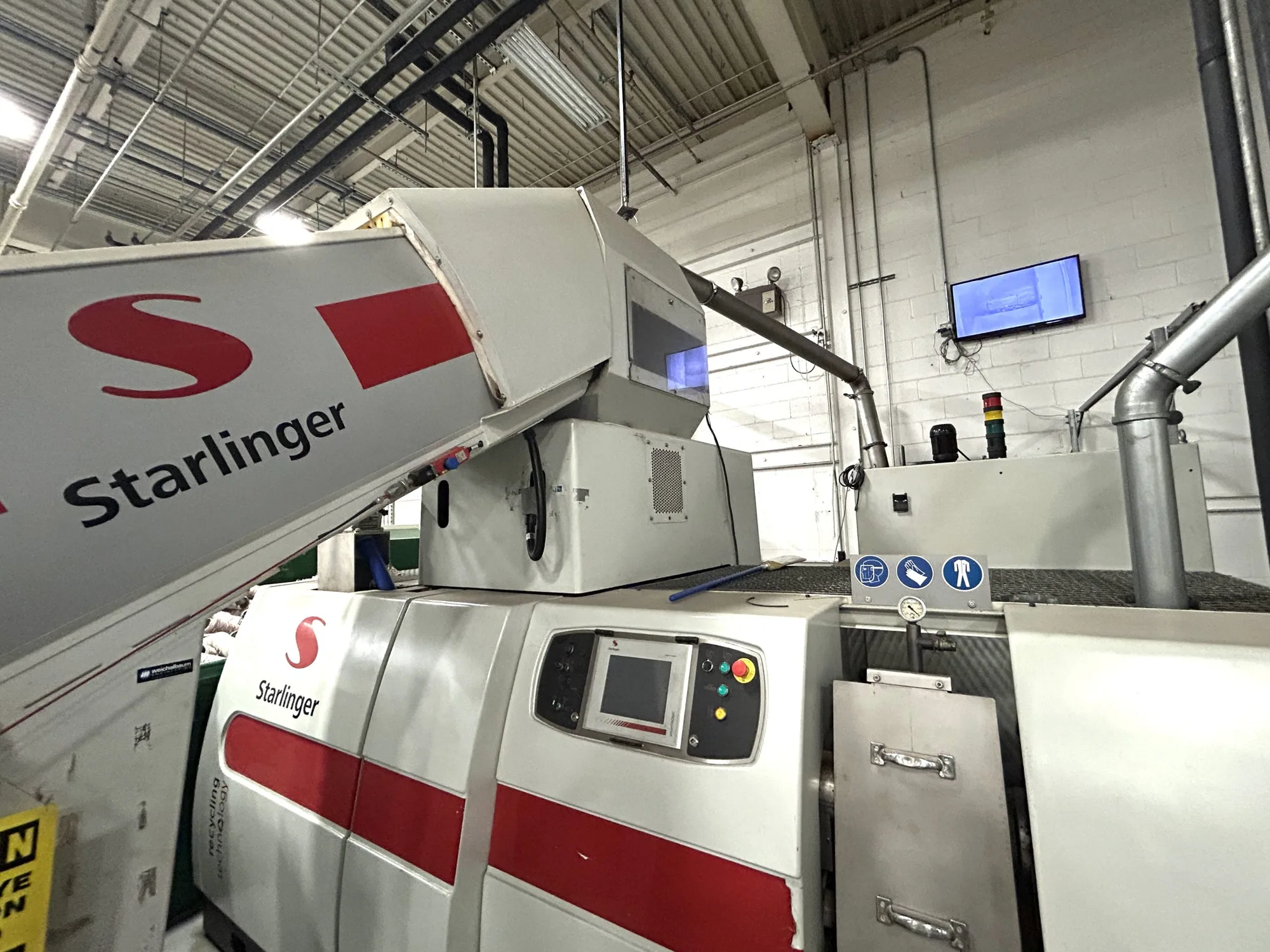

         Active Shredder, Type AS800-65 incl. level control, hydraulic pusher

         softstart, water cooled rotor, shaft length 800 mm, dia. 400 mm

         Shaftdrive 55 Kw with 48 Rotary Knifes and 4 stationary Knifes

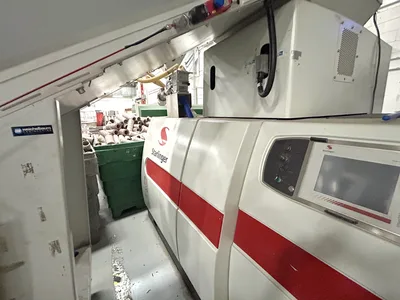

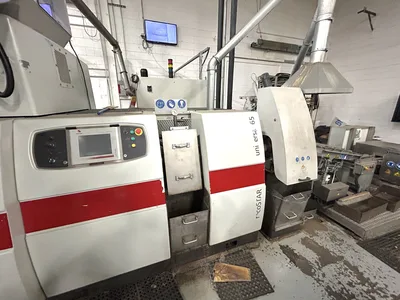

         Extruder, Type EXU65 with Vacuum Unit, Type VAC CC (closed)

         Screw 65 mm L/D: 24 Elec. Capacity 55 kW Speed 165 rpm

         Melt pressure display & alarm, Melt temperature display

         Extruder Extension. 16 L/D (Total length 40 L/D)

         Vacuum Pump: 1,8 Kw

         Vented Extruder Screw and Barrel in Ultra Wear Resistant Version

         Speed Control Extruder Drive 40-200 rpm

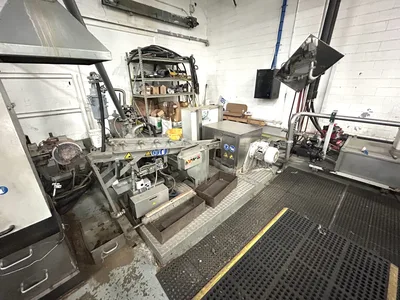

         Single Piston Filter, Type SP180 with 4 Screens (45 cm²)

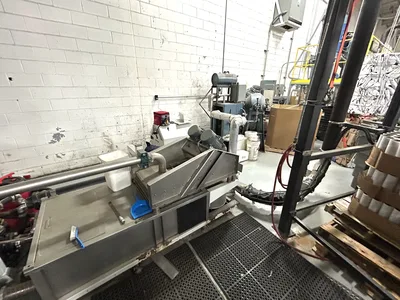

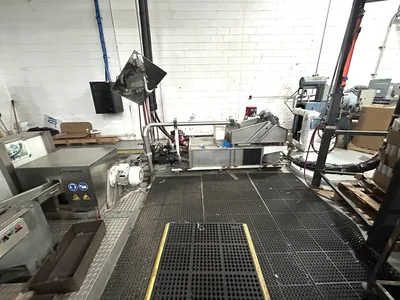

         Watering Pelletizing, Type WRP 120CC max. 300 kg/h

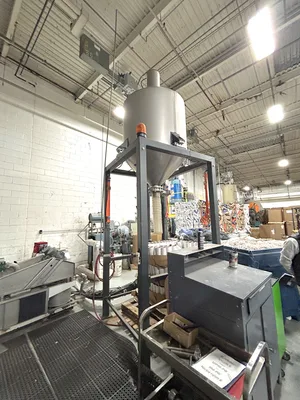

         Filling Station, Type 300l incl. piping for filling bags/sacks

         Volume 300 l , Outlet height 850 mm

         Reco Batch Package incl. Bag unloading and Dosing Station for Powder

         Water Chilling Unit, Type HGS 75CS Capacity up to 64.500 kcal/h

         Power Supply 3 x 400 V – 50 Hz or 3 x 440 V/60 Hz
