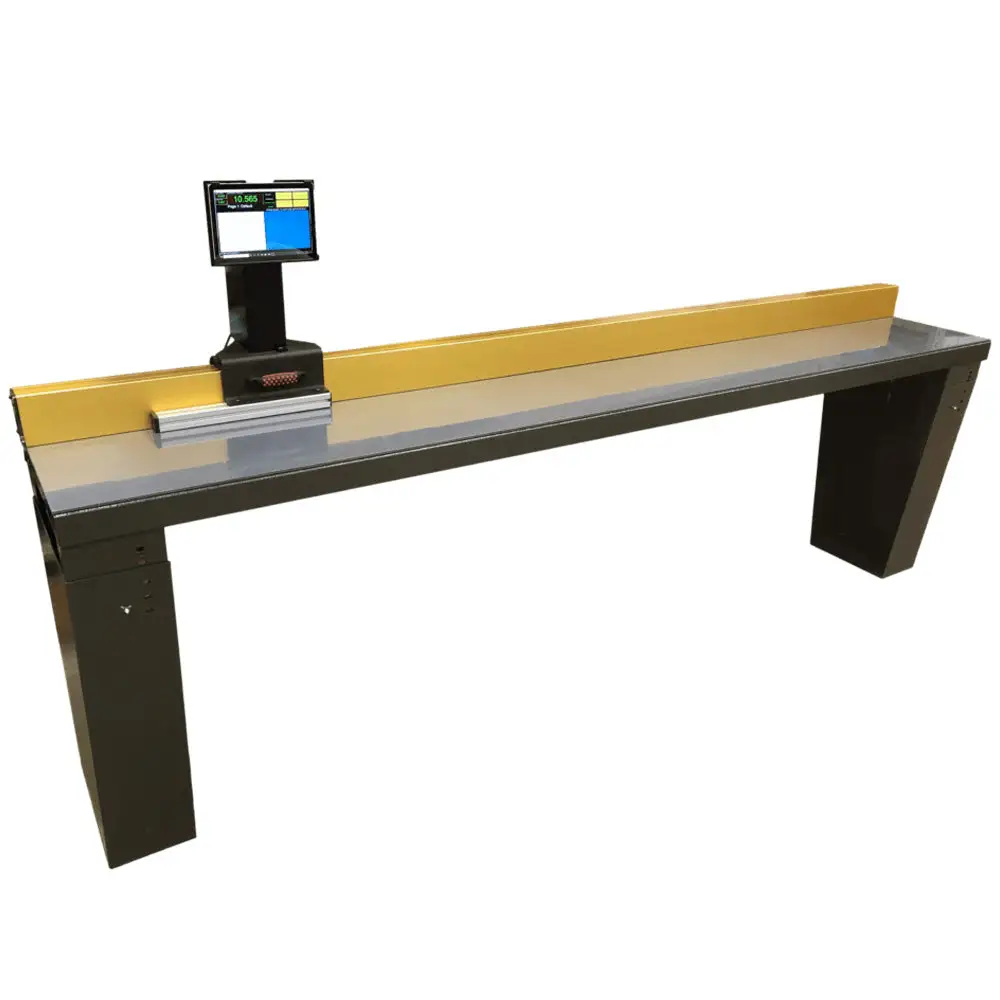

RazorGage Caliper Measuring Table for Measuring Long Parts

PC–Based Measuring Tool
The Caliper Measuring Table from RazorGage is a reasonably priced, PC–based, single–axis measuring table with many features only found on high–end coordinate measuring machines and expensive precision measuring tools. The internal carriage features a double bearing block Hiwin linear bearing system. A magnetic non–contact linear encoder is used for long life and continuous accuracy.  Virtually unlimited error compensation points and extremely tight repeatability result in astounding accuracy even better than our stated spec.
Caliper Table Saw Measuring System Features
• Measure long parts accurately on this reasonably priced, PC–based, single axis measuring table.
• Accuracy – ±0.004" over 10 feet can be improved using error compensation
• Repeatability – ±0.0015"
• Windows PC operation on a color hi–resolution touchscreen monitor.
• Carriage features a double bearing block Hiwin linear bearing system.
• Non–contact linear encoder provides long life accuracy.
• Displays can be set for either metric or imperial measures.
• Available in any stroke up to 20'.
