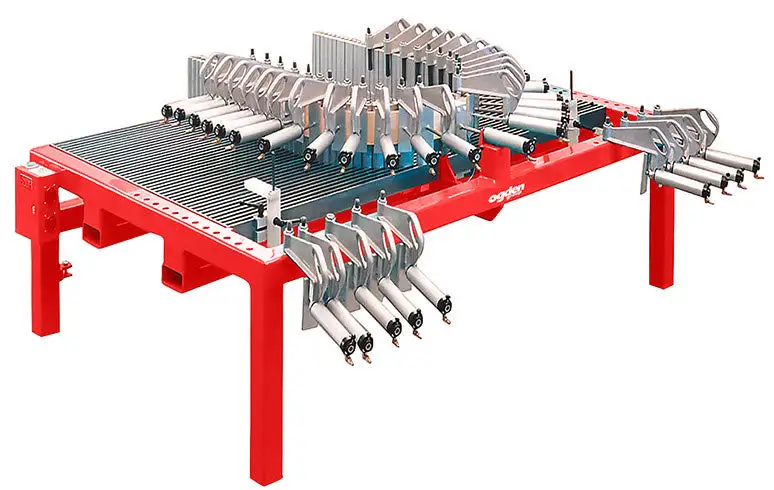

RFS Protech PT7 Veneer Former

The RFS Protech PT7 Radius Former uses a series of machined rails supporting dual sets of heavy aluminum arms, which are adjusted to define the pattern to be fabricated.
The Veneer Slats are clamped to the form arms with a series of 32 specially designed Air cylinders, which use pneumatic air pressure up to 120 psi and are connected to the clamp via quick disconnect.
The RFS Protech PT7 can be used as a cold press or equipped with an optional set of thermostatically controlled heat bands. Depending on the size of the component and adhesive used, the heat bands can cure the assembly in as little as 20 minutes.
ABOUT
The PT series of Radial Forming Machines was developed as an economical alternative method to easily and accurately fabricate curved components such as arched headers and radiused moldings for windows and doors, furniture parts, etc. These machines are designed to fit the needs of small and large companies. The PT Radial Forming machines can produce a wide range of shapes without the use of forms or templates. The patented, ruggedly built machines feature welded steel frame construction and quality components for a long and productive life. The machine can be used as a cold press or with optional heat bands or a with High Frequency Generator to cure the glue lines. The machines can be built with manual adjustable forms or fully CNC forms which move into position via computer control touch screen.

AVAILABLE OPTIONS
Straight leg table extensions
Air pressure boosters
Conduction heat band curing
Variable clamp capacities
Casing attachment
