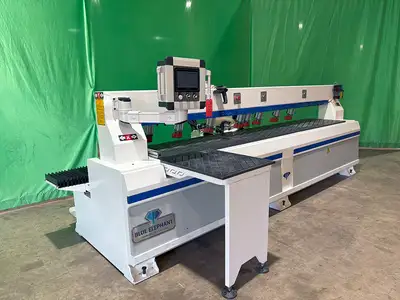

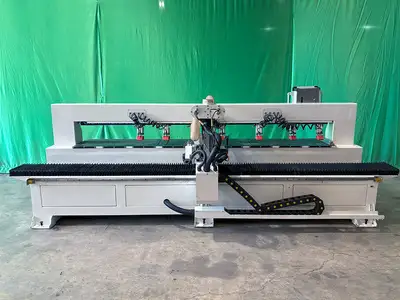

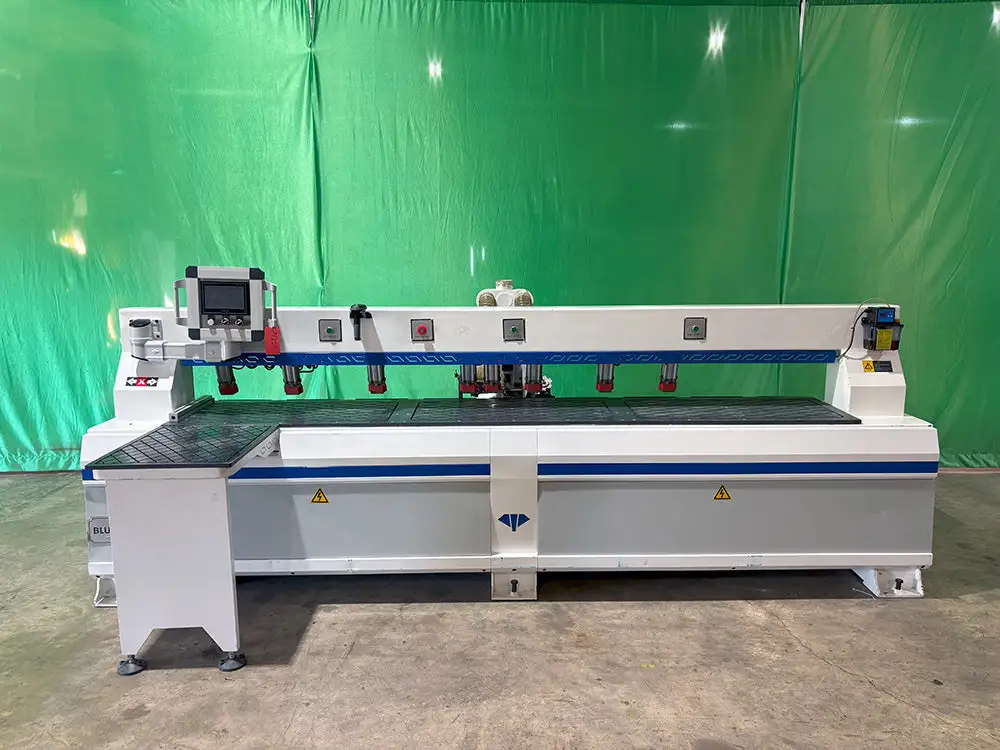

Used 2021 Blue Elephant 45 Side Hole Drilling Machine
Overview
220V 3 Phase, 60HZ
Machine Size 3600x1300x1450mm Table height 750mm. Left and right X-axis working stroke 0-2800mm. Spindle motor brand SCS/Huajiang/Changsheng/Oakmond
Front and rear Y-axis working stroke 0-50mm
Spindle motor speed 18000 rpm/min
Up and down Z axis working stroke 0-50mm
Spindle motor power T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW
Maximum sheet size (length/width/thickness) 2800x1300x50mm
Control system Lorenchi scanning code scanning dual system
Drive motor brand Division servo motor. Laser sensor - American Banner laser head. Drive motor power 750W servo x 3 (Z axis with brake). Screen 7 inch touch screen.
Electrical main parts Chint Electric. Inverter Best 4KW. Rack - Jarl rack
Reducer Taiwan Planet, Lead screw Z+Y axis 25 high-precision grinding screw, Motor base - Die-casting high-precision grinding. Taiwan Renben
