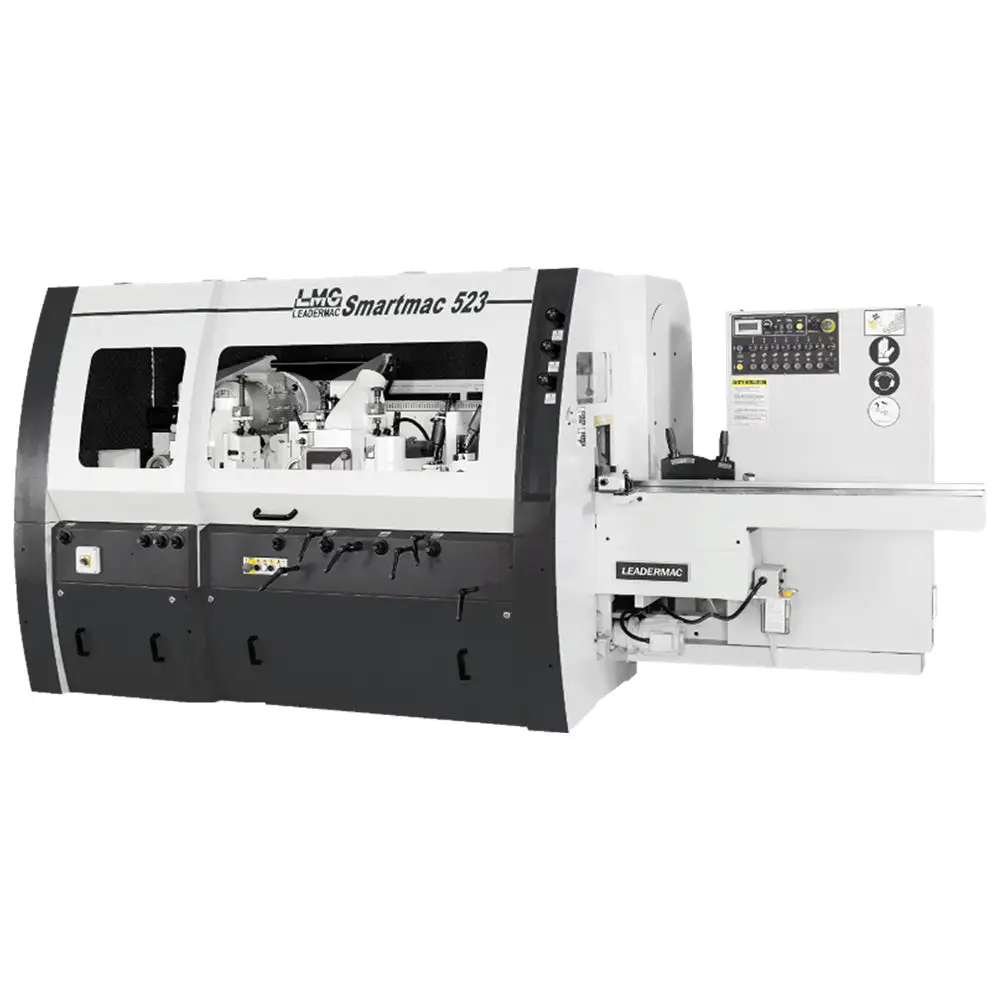

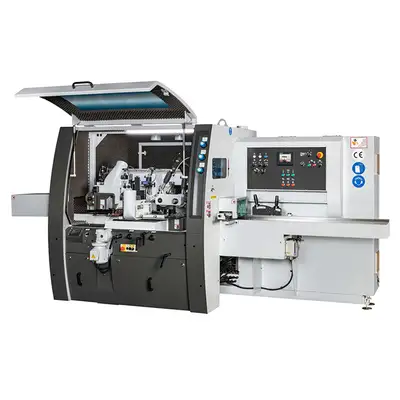

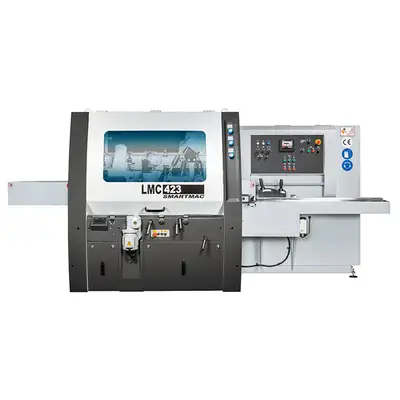

Leadermac Smartmac Moulder Series

Powerful, precise, efficient moulder at an economical price point, all in a small footprint.
The Leadermac Smartmac Moulder Series has been designed to ensure uncompromised results specifically aimed at the small shop looking at their first moulder or one looking to add additional machines. The Smartmac moulder has a small footprint allowing it to fit in virtually any shop. Many powerful features come standard with the Smartmac ensuring fast and repeatable set–ups with reduced changeover time, all allowing you can meet your production requirements day in and day out.
Why Leadermac Smartmac Moulder Series?
• Industrial moulder design with a solid cast iron frame produces unparalleled finished part quality in its class.
• Never has a moulder with such an industrial design and a wide range of features been available at this price point.
• Compact design ensures it can fit in almost any shop.
• Turnkey solutions include on–site operator and maintenance training.
Key Advantages
• Heavy-duty cast iron frame provides superior vibration damping, which produces superiorly finished parts and promotes long bearing & machine life.
• Small footprint allows the Smartmac to fit into nearly any shop.
• All tables and fences hard chromed with approximately 0.012″-0014″ thick hard chrome, which ensures maximum longevity.
• Comes with more top-driven and bottom full-width driven feed rolls than other moulders of its size.
• 6000 RPM spindles each with (4) ABEC 6 precision bearings per spindle which provides smooth surface finish results.
• Side heads share a motor allowing the machine length to be shortened.
• Pneumatic side holdover provides consistent side pressure to the fence.
• Pneumatic hold down pressure to all top feed rolls provides consistent and repeatable pressure.
• Pneumatic chip breakers ensuring consistent pressure.
• Full width driven infeed & outfeed bed rolls.
• Dual SIKO quick set counters to assist in quick and accurate changeovers.
• Axial adjustment of last bottom head from front of machine.
• Table lubrication system.
• Centralized grease lubrication system.
• Safety sound enclosure is standard.
• Pneumatic pressure to chip breakers, holdovers, and top feed rolls.
Options
• Variable frequency drives for spindles: allow RPM of spindles to be varied and act as a fully electronic braking system.
• Split hold down pressure shoe.
• Anti-kickback fingers for ripping operations.
• Rip bed plates / special pressure shoe for ripping operations.
• Universal spindle.
• 7200 RPM spindles for increase feed speeds.
• Easyset Setworks System with touch screen control, memory, and motorized positioning for near side and top head.
• Smartset 100 Setworks System with touch screen control, memory system, and motorized positioning for near side and top head, utilizing ball screw and rotary encoder for true accurate and repeatable positioning.
• Special requirements on request.
