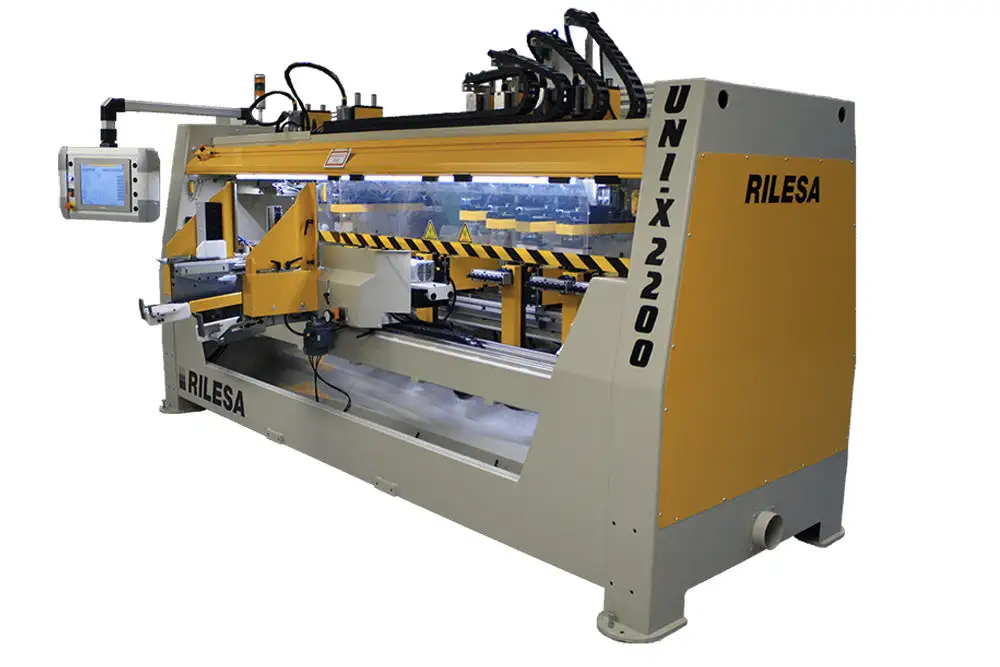

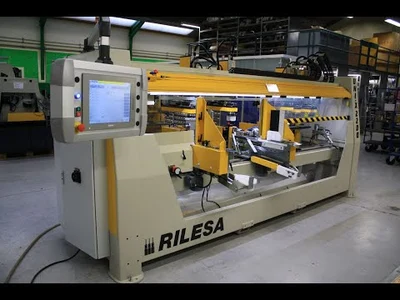

Rilesa UNI-X 2200 Drilling Machine

The Rilesa UNI-X 2200 is specially designed for solid wood and has a unique system of clamping cylinders designed to adjust and hold the components. The UNI-X 2200 is also excellent for components in MDF, chip board, plywood and even aluminum. The resetting of the machine is easy and the flexible clamp units, together with the slim design of the drill groups, make it possible to drill almost all components in one pass. As with most Rilesa machinery, the UNI-X 2200 is well suited for automation and linking with other machines.
It is possible to reset the machine in minutes, all data regarding drill heads, tools, position in x, y and z direction etc. are stored in the control unit. A digital measuring system combined with a light signal guides the operator to position the drill groups in the x-direction. During production the machine continuously controls the position in x-direction to reduce faults.
Features:
• Drilling from 4 sides: top, right, left, back
• Capacity up to 14 pcs/min
• Set-up help using light beam
• Vertical magazine
• One-man operated
Workpeices:
• Length: 250-2200 mm (~9.842" to ~86.614")
• Height: 10-65 mm (~0.393" to 2.559")
• Width: 25-200 mm (~0.984" to ~7.874")
Extra:
• Side Movement
• Small millings
• 45 degree drilling
• Can be integrated in a line of machines
• Waste Conveyor
