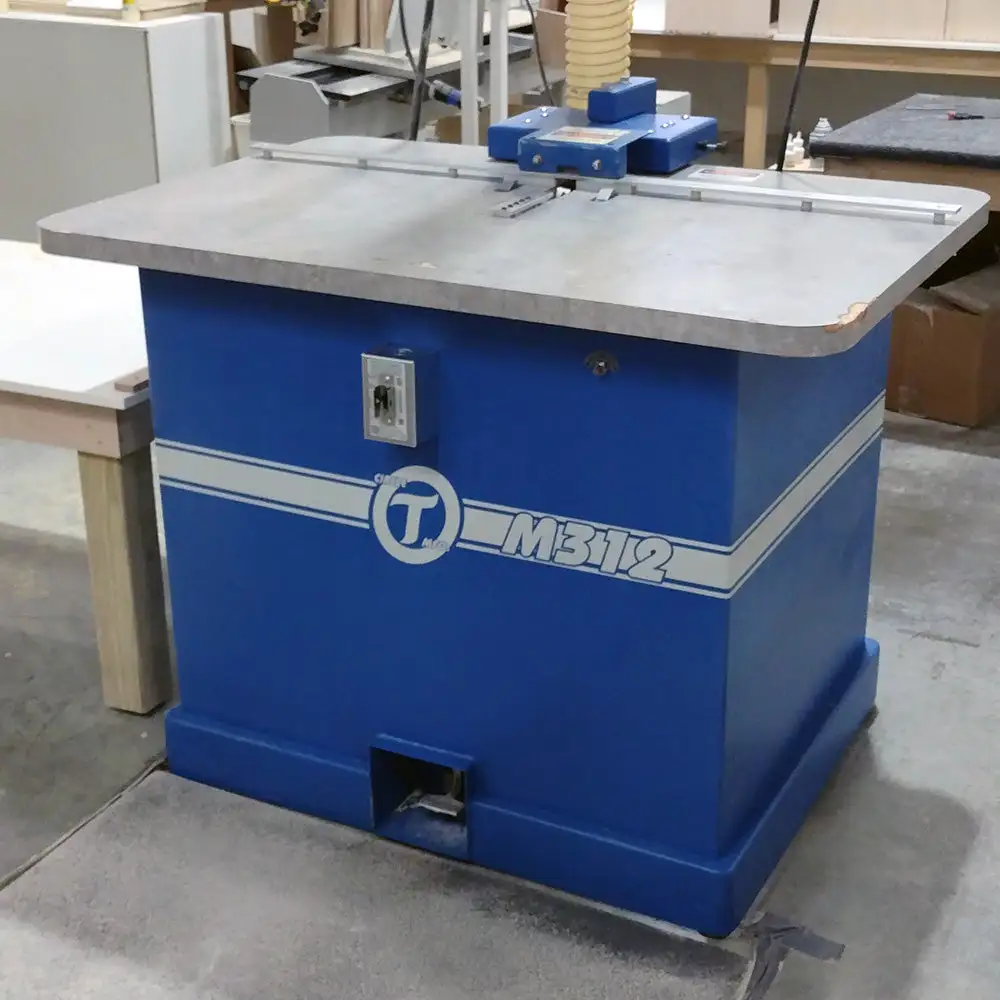

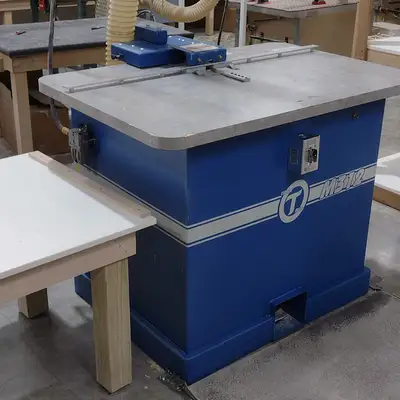

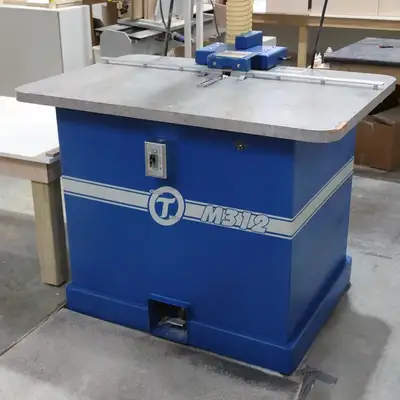

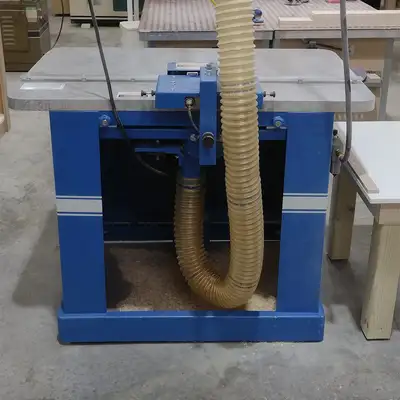

Used Circle T Model M312
Overview
Used Circle T Model M312
APPLICATION SPECIFICATIONS:
• Min Thickness of Drawer Box Back: 5/16"
• Max Thickness of Drawer Box Back: ¾"
• Min Width Inside of Drawer Box: 5 1/8"
• Min Length Inside of Drawer Box: 8 ¼"
• Standard Notch Size 57mm (35mm and 51mm cutterheads also available for purchase)
• Standard Locating Hole Size 15/64"
UTILITY REQUIREMENTS:
• Dust Collection Req: 670 CFM, 4" Outlet
• Electrical Pneumatic Req: 100 PSI, 6 CFM
• Pneumatic Version Req: 100 PSI, 76 CFM
• 20 AMP Disconnect at 110v 1ph
• 10 AMP Disconnect at 220v 1ph
• 6 AMP Disconnect at 230v 3ph
• 4 AMP Disconnect at 460v 3ph
DRIVE PACKAGE SPECIFICATIONS:
• Main Motor: 1.5 HP
• Pneumatic Drill Included
• 8" Insert Cutter
• Arbor Speed: 3,200 RPM
• Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Packages as well
DIMESION SPECIFICATIONS:
• Overall Table Size: 31.5" x 47.5"
• Table Operating Area: 21.75" x 47.5"
• Footprint: 52" W x 42" D X 42" H
• Shipping Dimensions: 52"L x 47"W x 39"H
SHIPPING WEIGHT: 650lbs
NET WEIGHT: 450lbs
