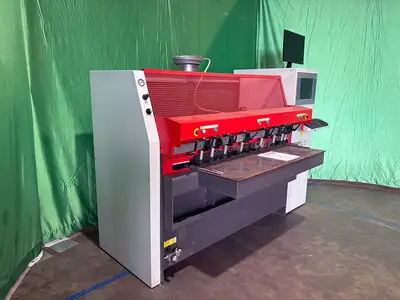

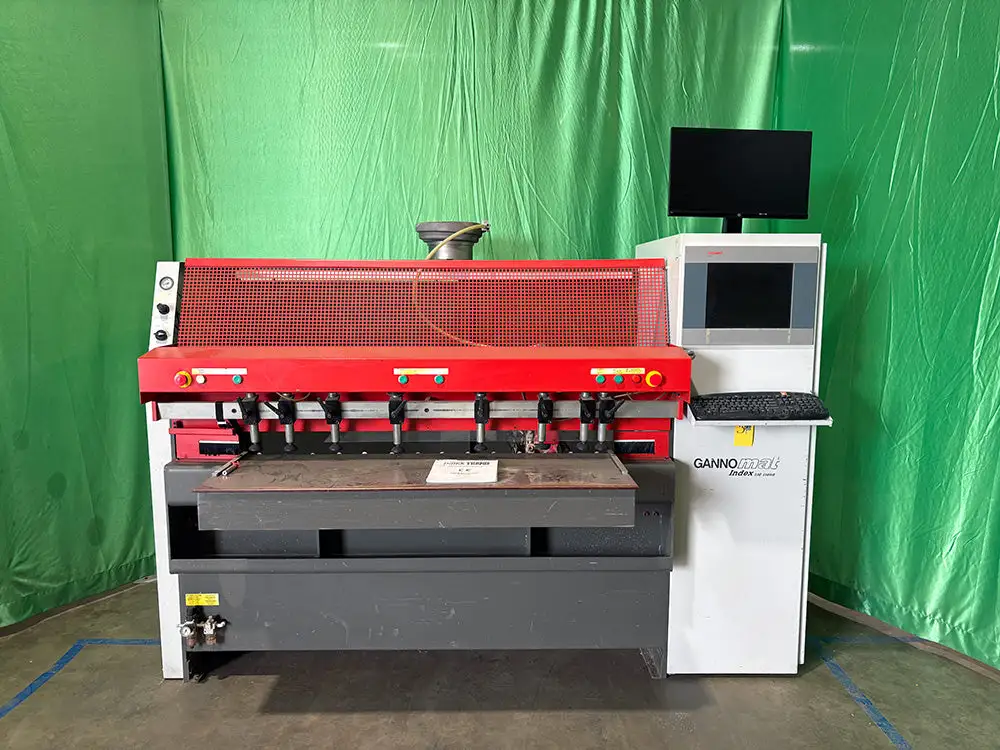

Used Gannomat Index 130 Logic/470 CNC Controlled Point-to-Point Drilling/Gluing/Dowell Insertion Machine

Used Gannomat Index 130 Logic/470 CNC Controlled Point-to-Point Drilling/Gluing/Dowell Insertion Machine
Year: 2005
220v 3Ph 60hz
20 amp
4.8KVA
24VDC
Specifications: a CNC controlled point-to-point drilling/gluing/dowell insertion machine for variable programming of boring patterns
X Axis CNC controlled via precision ball screw Servo drive
Y & Z Axis adjusted via mechanical spindles, set by manual digital indicators
Working width (inches): 51 x 3/4 width x 1/2 - 3 1/8 material thickness with (2) fields, LH/RH (mirror image)
Table size (inches)  4.5 x 52.75 with 9 x 52 extensions

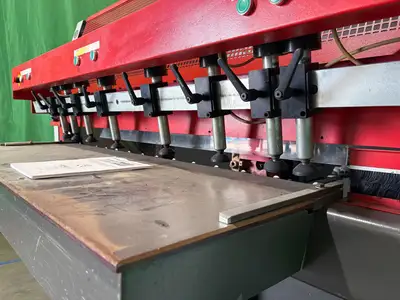

(8) Vertical hold-down cylinders for horizontal part processing
Dowel driving & horizontal boring:
Integrated into (1) station
Dowel driving unit located alongside the boring station
Both units are mounted on (1) support
Horizontal drilling & boring station:
Head can be set up for 6-8 or 10mm
Dowel length from 25 - 50 mm
Doweling station:
Vibrating hopper
Insertion head & dowel driving with air impulse
Glue valves controlled individually at control cabinet
Central adjustment for amount of glue by means of digital timer
Operating system:
MS-XP & Gannomat production software
15 inch color touch screen monito
Controller & drive: Beckhoff C3640
Includes: (1) glue tank, (1) water tank, auto-lubrication system
Model: Index 130 Logic/470
