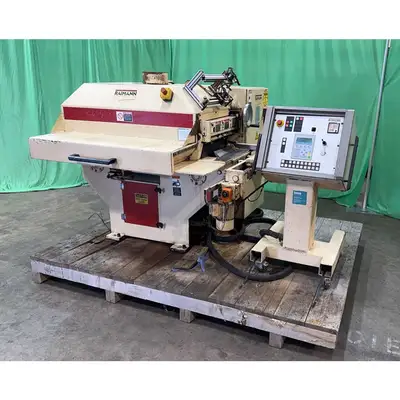

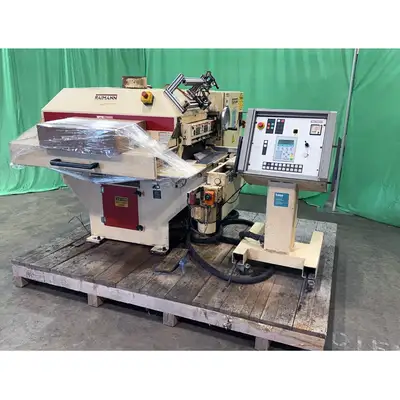

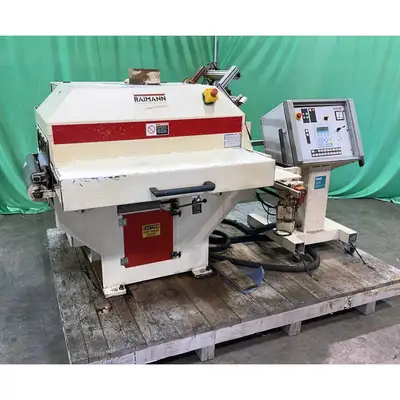

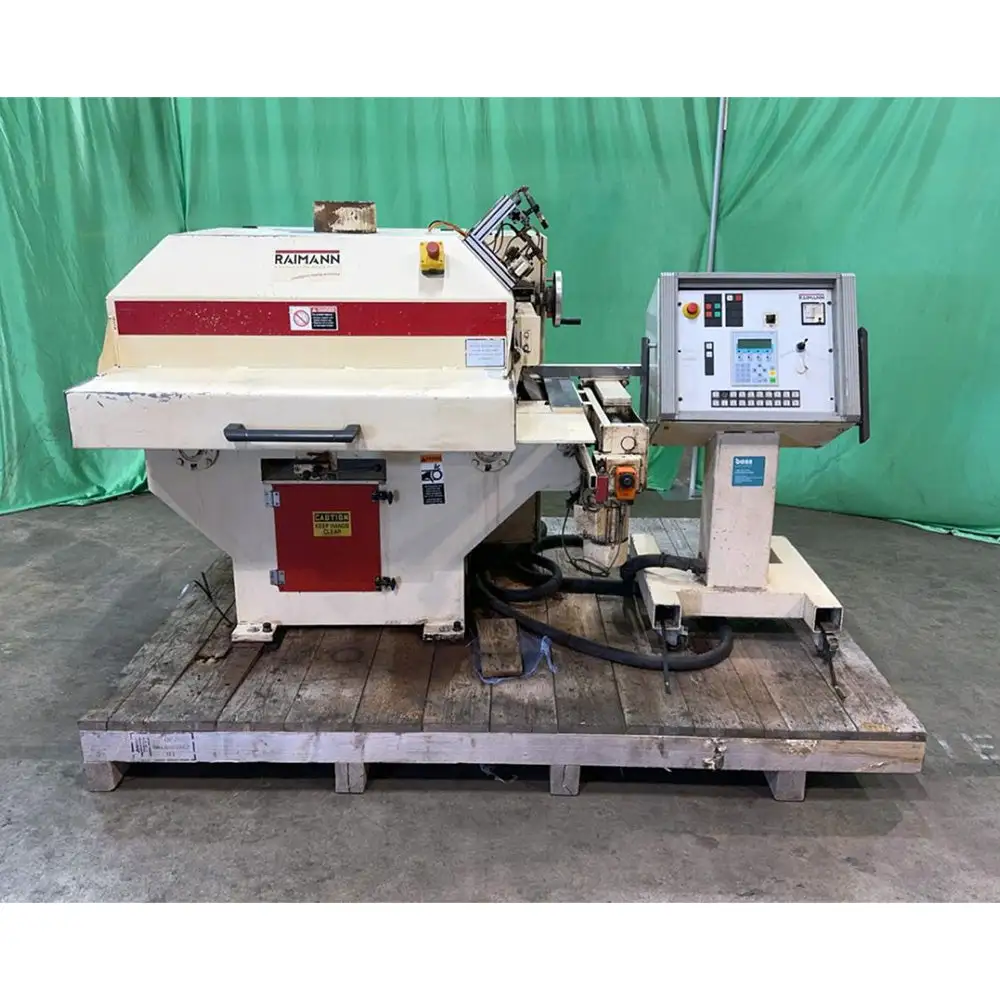

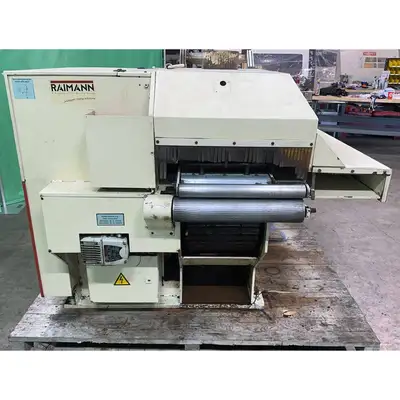

Used 2001 Raimann KM 310 BV Gang Rip Saw
Overview
The KM series saw combines high precision with a prism guided closed link chain, which saves material and reduces costs. Whether you're looking to produce furniture of all kinds or simply edge your material, this is the saw for you.
Features and Specifications:
Voltage: 600V / 60Hz
Cutting width: 12.2" (310 mm)
Outlet width right from saw blade: 5.9" (150 mm)
Maximum width of workpiece: 39.4" (1000 mm)
Maximum cutting height, blade positioning without pressure board: 3.1" (80 mm)
Maximum cutting height, blade positioning with pressure board: 2.8" (70 mm)
Minumum cutting height: 0.39" (10 mm)
Width of feed chain: 13.4" (340 mm)
Diameter of saw arbor: 2.6" (65 mm)
Diameter of bushing mount for blades: 3.1" (80 mm)
Diameter of saw blade maximum: (300 mm)
Saw-arbor speed: 4200 RPM
Feed speed (continuously adjustable): 16 - 115 feet/min
Height of chain surface above floor (working level): 33.4" (850 mm)
Approximate dimensions: 75" x 75" x 60"
Approximate weight: 4,500 lbs (2,000 kg)
