USED 2018 HYTROL 25-CREZD

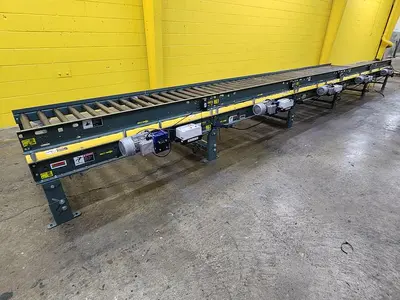

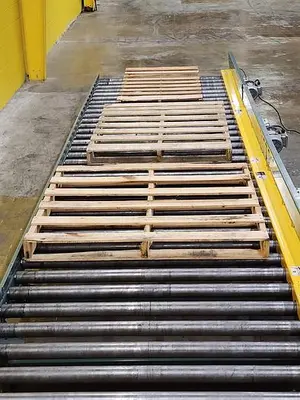

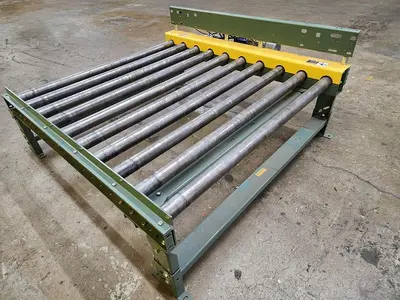

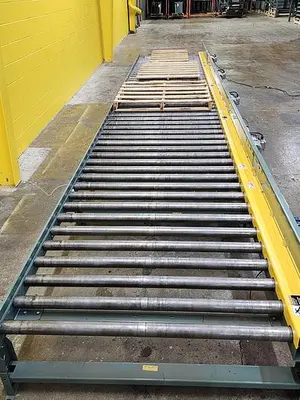

For sale is lightly used Hytrol 25-CREZD chain driven zero pressure pallet conveyor. This conveyor came out of a clothing company warehouse and was only used to transport plastic gaylords. Built in 2018, it is in great condition with many years of life left. At the time of this listing, we have over 1300 lineal feet of this exact conveyor in stock. The price listed is for one 5' even though some of the pictures show five sections installed together.
For sale is lightly used Hytrol 25-CREZD chain driven zero pressure pallet conveyor. This conveyor came out of a clothing company warehouse and was only used to transport plastic gaylords. Built in 2018, it is in great condition with many years of life left. At the time of this listing, we have over 1300 lineal feet of this exact conveyor in stock. The price listed is for one 5' even though some of the pictures show five sections installed together.

This conveyor uses Hytrol EZ Logic photo eye system to allow for zero pressure accumulation. However, this can be removed if you need live roller conveyor instead of zero pressure. We also have several 90 degree chain transfers that match this conveyor available. Contact us for details.
This conveyor uses Hytrol EZ Logic photo eye system to allow for zero pressure accumulation. However, this can be removed if you need live roller conveyor instead of zero pressure. We also have several 90 degree chain transfers that match this conveyor available. Contact us for details.

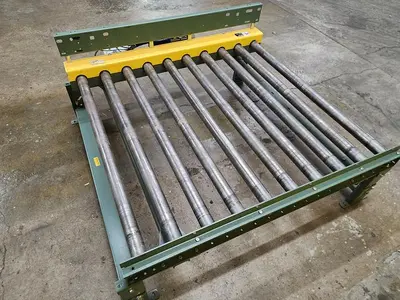

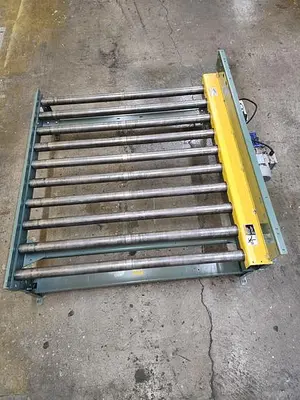

Most customers will need more than one 5' bed, so please contact us for a customized quote on any length needed.
Most customers will need more than one 5' bed, so please contact us for a customized quote on any length needed.

Why wait many months for new conveyor from manufactures when you can get lightly used conveyor here quickly.
Why wait many months for new conveyor from manufactures when you can get lightly used conveyor here quickly.

Conveyor Specs:
Conveyor Specs:

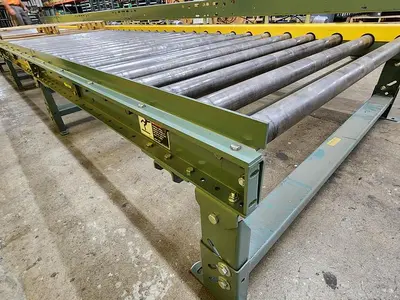

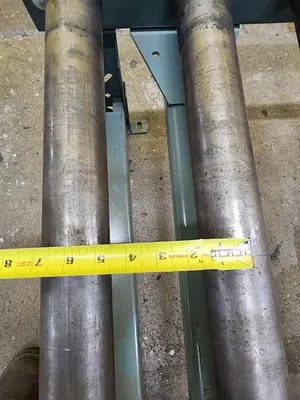

2 1/2" dia. x 11 ga. unplated rollers spaced every 6"
2 1/2" dia. x 11 ga. unplated rollers spaced every 6"
Overall Length 5 ft
Overall Length 5 ft
Overall Width 58.25"
Overall Width 58.25"

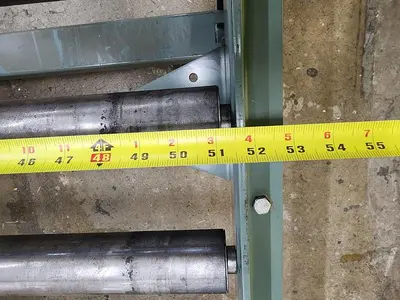

Conveying Width 51.75"
Conveying Width 51.75"
Capacity Maximum load per linear foot of conveyor 1000 lbs with supports on 5 ft. centers.
Capacity Maximum load per linear foot of conveyor 1000 lbs with supports on 5 ft. centers.
Drive Chain No. 40 roller-to-roller.
Drive Chain No. 40 roller-to-roller.
Chain Guard Formed steel guards totally enclose drive chains.
Chain Guard Formed steel guards totally enclose drive chains.
Bearings Sealed, pre-lubricated ball bearings
Bearings Sealed, pre-lubricated ball bearings
Speed Constant 60 FPM.
Speed Constant 60 FPM.

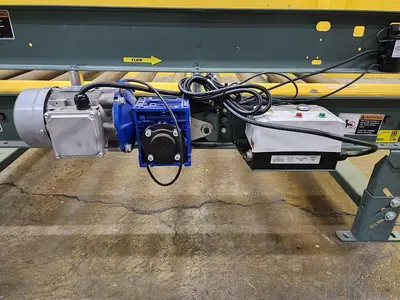

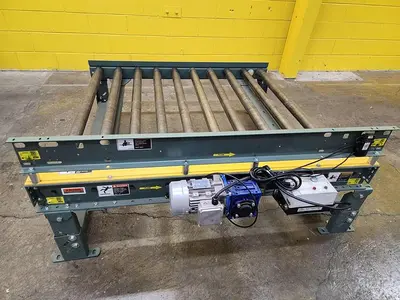

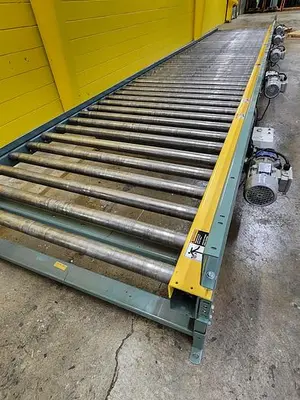

EZDrive™ SystemShaft mounted gearmotor located near center of each zone. 1/2 HP - 3 PH 60 Hz. Totally enclosed fan cooled. 460 V.
EZDrive™ SystemShaft mounted gearmotor located near center of each zone. 1/2 HP - 3 PH 60 Hz. Totally enclosed fan cooled. 460 V.
60" zones
60" zones

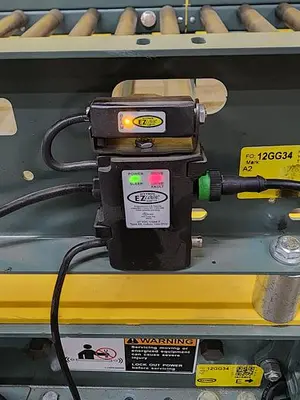

Hytrol IOP (photo eye) control boxes not included but may be available for purchase.
Hytrol IOP (photo eye) control boxes not included but may be available for purchase.

No stands are included but we may have them available for purchase for $50 each. Contact us for details.

Ships to true commercial addresses only. Farms and home based businesses will incur higher freight charges.
No stands are included but we may have them available for purchase for $50 each. Contact us for details.

Ships to true commercial addresses only. Farms and home based businesses will incur higher freight charges.
