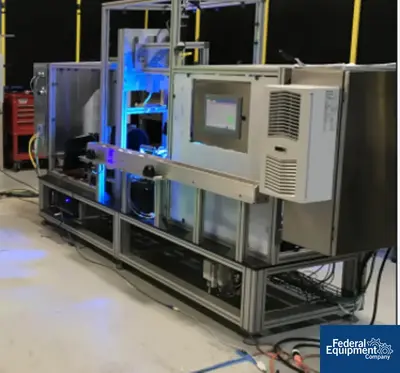

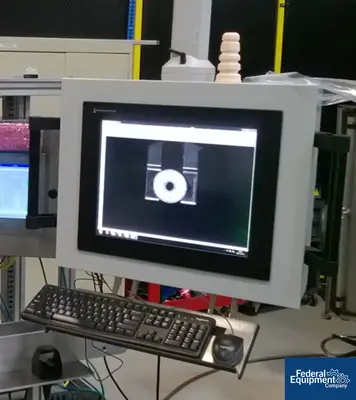

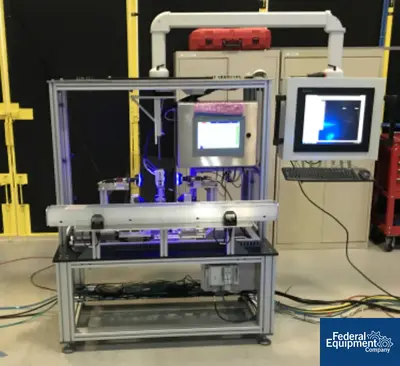

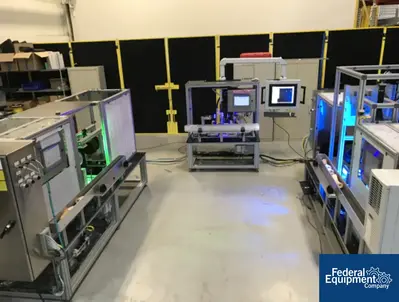

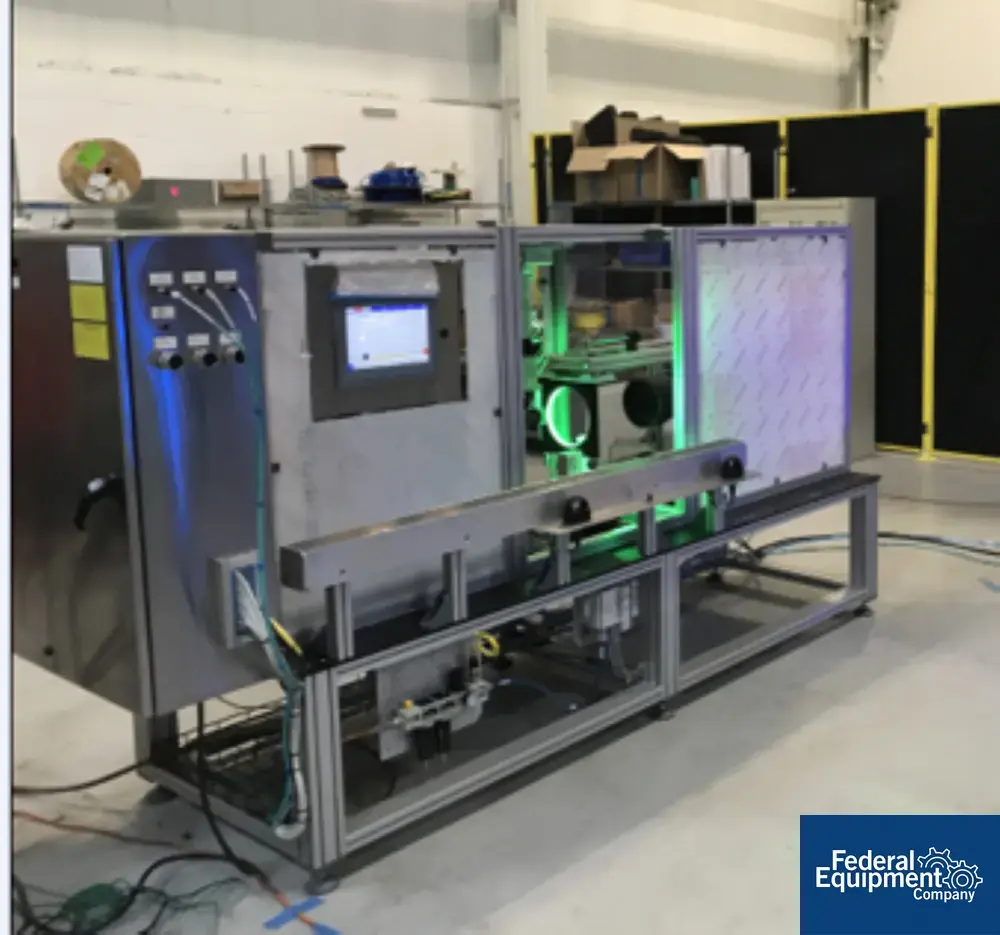

USED Leoni Engineering Products & Services Leoni Engineering Products and Services foam part inspection unit

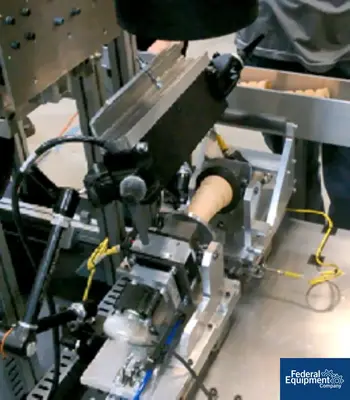

Used Leoni Engineering Products and Services machine vision system for foam part inspections using area-scan and line-scan cameras with Siemens controls architecture and Profinet PLC bus communications. Maximum part dimensions: 150mm; minimum part dimensions 10mm. Hardware includes:  o (5) cameras o (1) Ultra-high resolution area-scan camera, to gauge diametric dimensions and detect defects on end faces o (1) High-resolution line-scan camera, to detect defects on outer cylindrical faces o (2) Medium-resolution area-scan cameras, to detect defects inside rims o (1) Medium-resolution area-scan camera, to gauge non-diametric dimensions  (3) High-resolution telecentric lenses  (2) External borescope lenses  (5) Machine vision optical filters  (4) servo slides o (1) to adjust lighting position for end-face defect detection o (1) to adjust focus position for line-scan camera o (2) to adjust focus positions for rim-defect cameras  (1) High-precision rotary axis and clamps to spin part for cylindrical face defect detection o Added equipment to this item to flex parts to enhance cracks  (3) universal fixtures, to accommodate as many part numbers as practical o (1) to present parts for end face defect detection and diametric gauging o (1) to present parts for rim defect detection o (1) two-part set to grip parts in rotary axis  (1) electrical panel o Power supplies o Servo controllers o Siemens 1214 PLC and HMI to run systems  High-intensity LED lighting  Necessary cabling, structure, and brackets

Year of Construction: 2017
