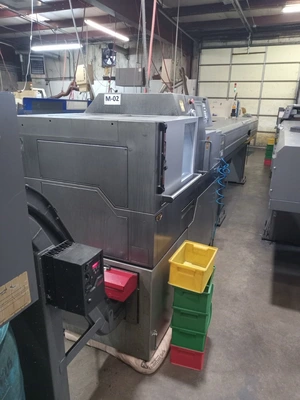

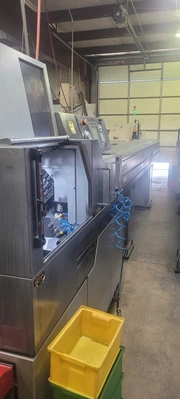

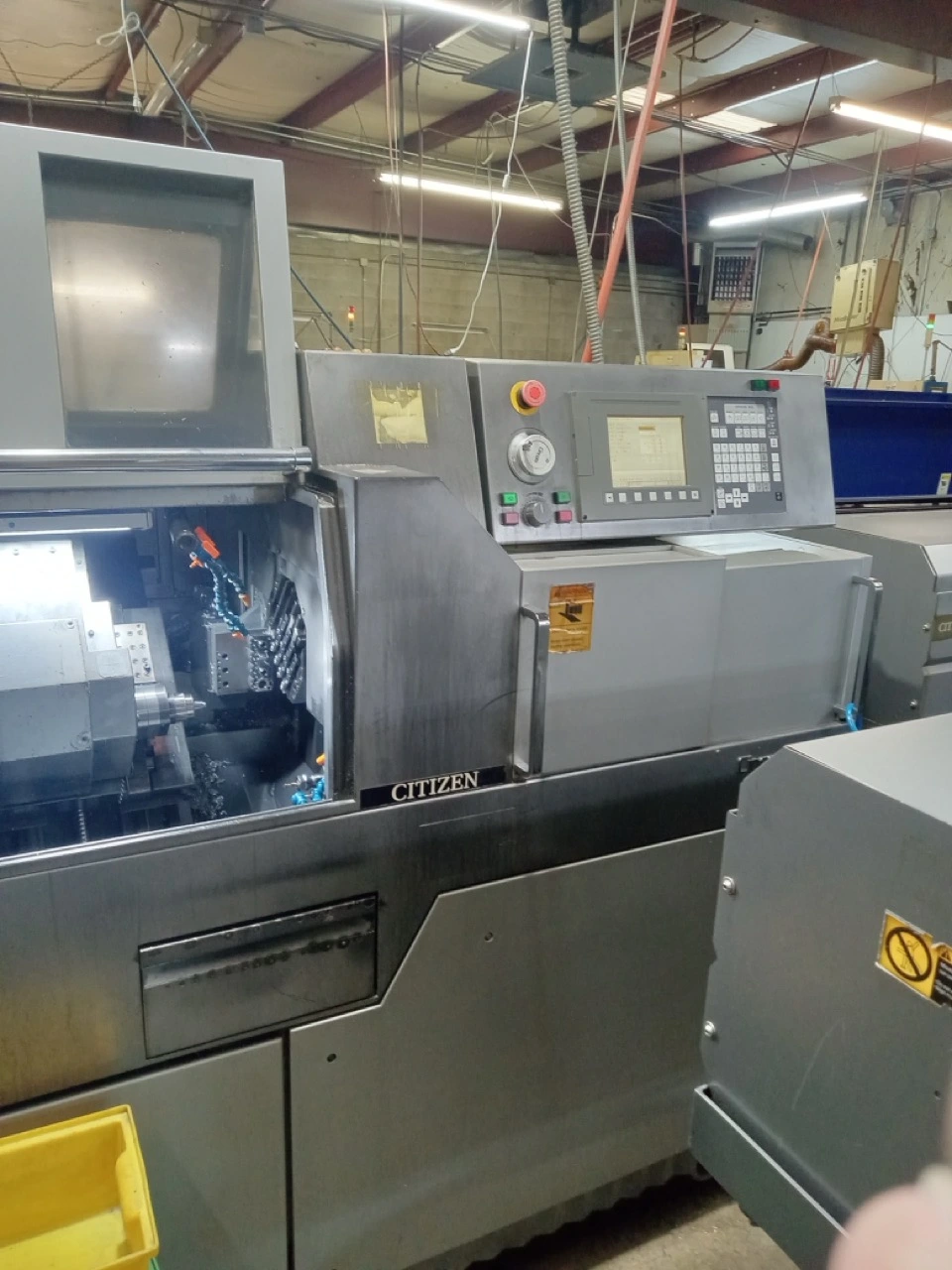

USED 2007 CITIZEN K16

Maximum Machining Diameter: 0.629″
Maximum Machining Length: 7.87″
Main Spindle Speed: 200–15,000 Rpm
Main Spindle Indexing: Full C-Axis
Back (Sub) Spindle Speed: 200–10,000 Rpm
Sub Spindle Indexing: 1°
Rotary Tool Speed: 6,000 Rpm
Back Spindle Max Chucking Diameter: 0.629″

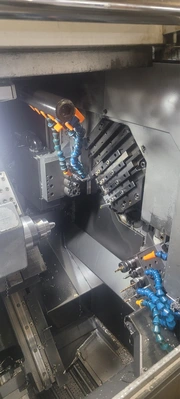

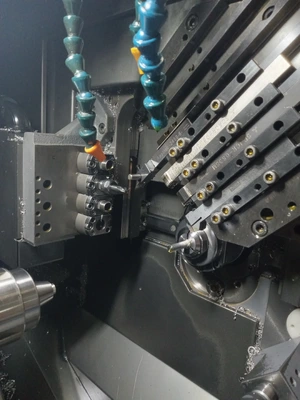

Turning Tools: 6 On Front Main Slide
Rotary (Live) Tools: 4 On Front Main Slide
Front-End Working Tools: 4 Stations (For Sub-Spindle Work On Main Slide)
Back-End Working Tools: 4 Stations
Main Spindle Drive: 5 Hp
Back Spindle Drive: 1.1 Hp
Rotary Tool Drive: 0.5 HP
Equipped With:

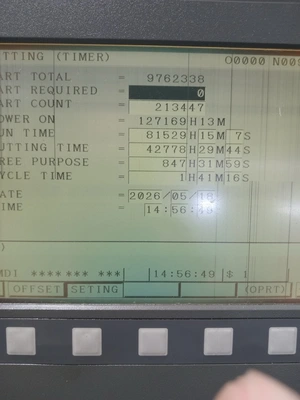

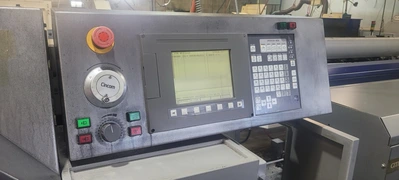

Cincom FS3 LI CNC Control
Full C Indexing On The Main Spindle
Sub Spindle 360 Degree 1 Degree INC
Main Spindle X1 Y1 Z1 C1 Axes
Sub Spindle With X2 AND Z2 S1 Axes
6,000 Max RPM Live Milling
Parts Catcher
Coolant Thru Sub Spindle

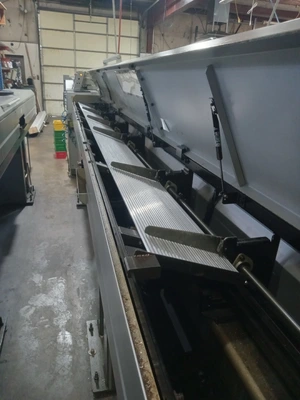

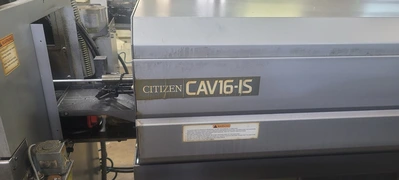

CAV 16IS 12FT Barfeed

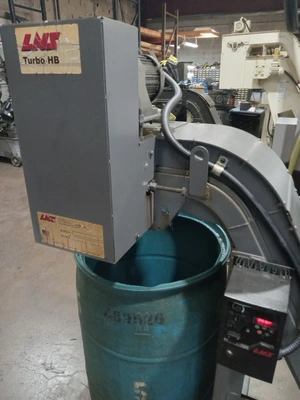

LNS Turbo HB Chip Conveyor
Comes With Available Main And Sub Collets
