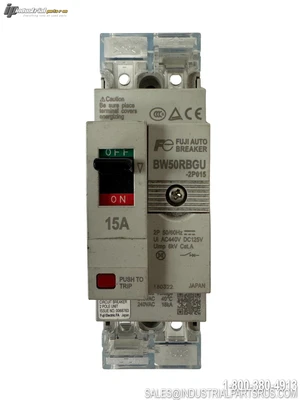

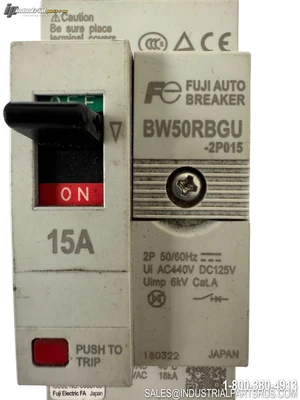

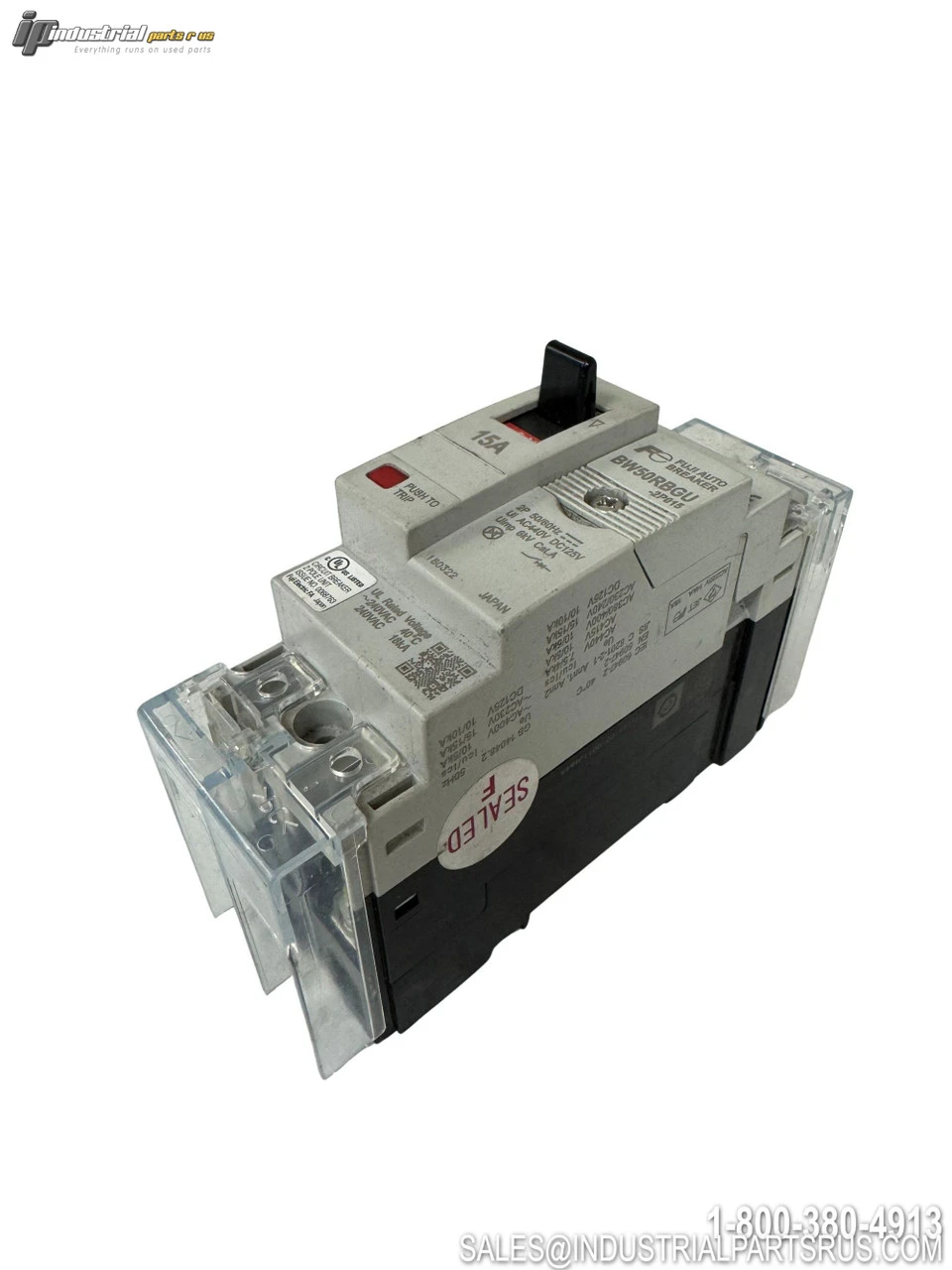

USED FUJI BW50RBGU-2P015

The Fuji Electric BW50RBGU-2P015 is a 2-pole, 15-ampere molded case circuit breaker from the G-TWIN Lambda (BW) Series, designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a hydraulic-magnetic tripping mechanism that supports both AC and DC circuits, housed in a compact 50AF frame rated for up to 690VAC and 250VDC. The breaker supports DIN rail or screw panel mounting and is compatible with a range of field-installable accessories including auxiliary switches, alarm switches, and shunt trip devices. Suitable for industrial control panels, machine equipment, motor branch circuit protection, and power distribution applications.
Specification
Value
Brand
Fuji Electric
Model / Part Number
BW50RBGU-2P015
Product Type
Molded Case Circuit Breaker (MCCB)
Series
G-TWIN Lambda (BW Series)
Number of Poles
2
Rated Current
15A
Ampere Frame
50AF
Rated Voltage (AC)
690 VAC
Rated Voltage (DC)
250 VDC
Breaking Capacity @ 400V AC
10 kA
Breaking Capacity @ 230V AC
15 kA
Interrupt Rating
18 kA
Tripping Device
Hydraulic-Magnetic
Connection Method
Surface / Screw Terminal
Mounting Method
DIN Rail / Screw Retention
Height (mm)
120 mm (4.724 in)
Width (mm)
36 mm (1.969 in)
Depth (mm)
90 mm (3.543 in)
Mass
0.5 kg
Model Class
High Performance Type (UL Registered Product)
Certifications
UL Listed (NEMA AB1), CUL, CE, TUV, CCC, CSA, PSE
Field-Installable Accessories
Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Trip
AC/DC Support
Both AC and DC circuits supported
We warranty all items for 30 days from date of purchase.
