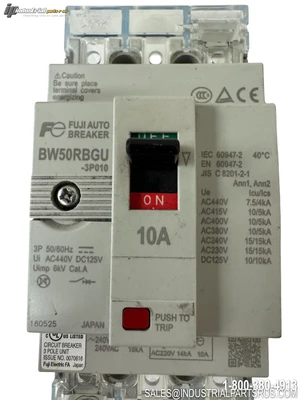

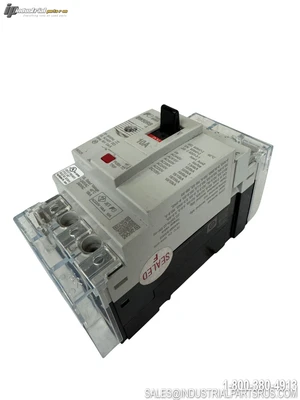

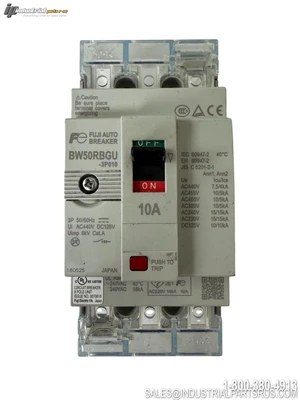

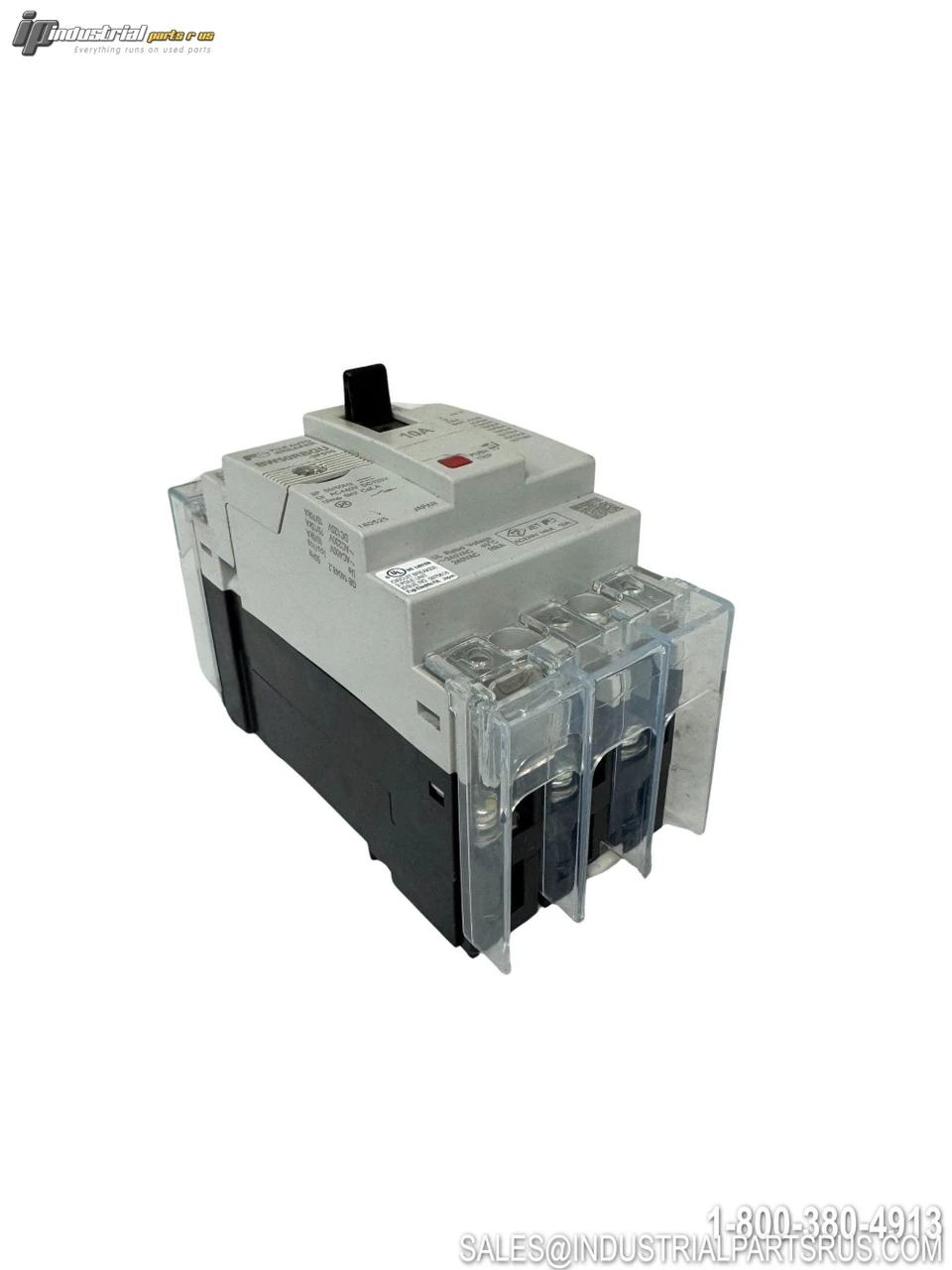

USED FUJI BW50RBGU-3P010 3POLE

The Fuji Electric BW50RBGU-3P010 is a 3-pole molded case circuit breaker (MCCB) from the G-TWIN Λ (Lambda) Series, designed for line protection and branch circuit protection in industrial and commercial electrical systems. Rated at 10 amperes within a 50A ampere frame, it operates at up to 690V AC and 250V DC, providing reliable overcurrent and short-circuit protection via hydraulic magnetic tripping (instantaneous and thermal delay). The breaker supports DIN rail or screw panel mounting and accepts field-installable internal accessories including auxiliary switch, alarm switch, shunt trip, and under voltage release.
Specification
Value
Brand
Fuji Electric
Model / Part Number
BW50RBGU-3P010 3Pole
Product Type
Molded Case Circuit Breaker (MCCB)
Series
G-TWIN Λ (Lambda)
Number of Poles
3
Rated Current (In)
10A
Ampere Frame
50AF
Rated Voltage AC
690V AC
Rated Voltage DC
250V DC
Rated Insulation Voltage (Ui)
690V AC / 250V DC
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Breaking Capacity (Icu) @ 240V AC (UL489/cUL)
18 kA
Rated Breaking Capacity (Icu) @ 440V AC (IEC 60947-2)
10 kA
Utilization Category
Category A (line protection)
Mounting Method
DIN Rail / Screw Panel
Terminal Type
Screw (Surface type)
Rated Frequency
50/60 Hz
Dimension Depth
90 mm
Standards / Certifications
UL489, CAN/CSA 22.2 No.5 (cUL), IEC 60947-2, EN 60947-2
Field-Installable Accessories
Auxiliary switch, Alarm switch, Shunt trip, Under voltage release
RoHS Compliance
Not RoHS Compliant
HTS Code
8536200020
ECCN
EAR99
We warranty all items for 30 days from date of purchase.
