USED OMRON S8VK-G24024

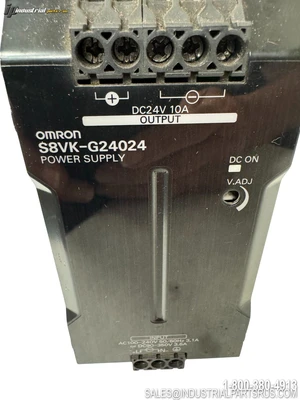

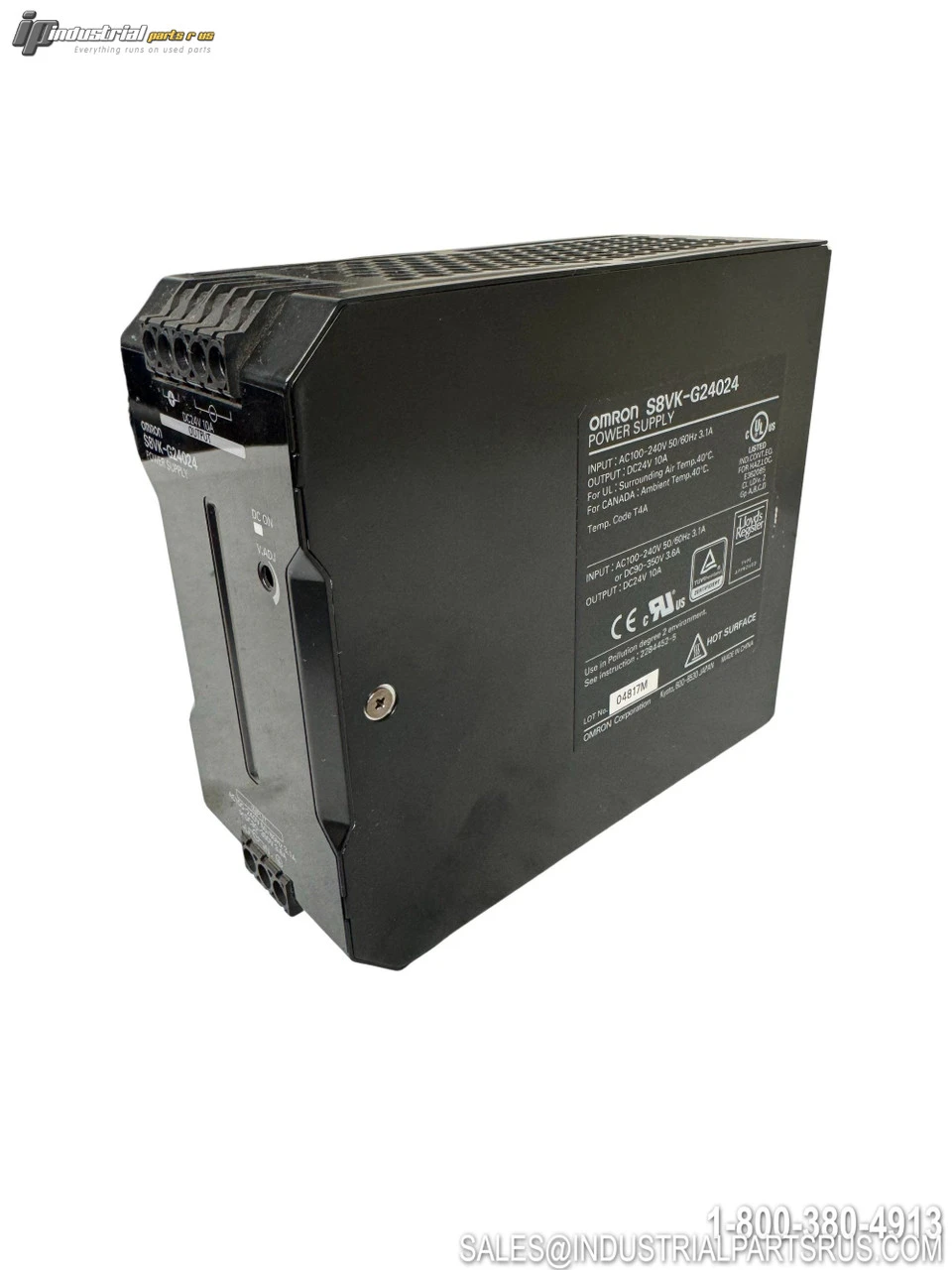

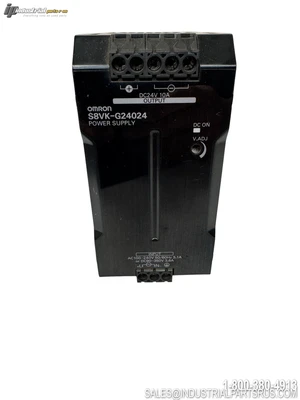

The Omron S8VK-G24024 is a 240W DIN rail-mounted switch mode power supply (SMPS) from the S8VK-G series, designed for industrial automation applications. It accepts a universal single-phase AC input (85–264VAC) or DC input (90–350VDC) and delivers a regulated 24VDC output at 10A continuous, with a 12A boost current for up to 10 seconds. The unit features natural convection cooling, an output voltage adjustment potentiometer, and a green LED output status indicator, with built-in overload, overvoltage, and short-circuit protection. RoHS compliant and approved to Lloyd's Marine and SEMI F47-0706 standards.
Specification
Value
Brand
Omron
Model / Part Number
S8VK-G24024
Series
S8VK-G
Product Type
Switch Mode Power Supply (SMPS)
Output Power
240 W
Output Voltage (DC)
24 VDC
Output Current (Rated)
10 A
Output Current (Boost)
12 A (120% boost, 10 sec max)
Input Voltage (AC)
85–264 VAC (100–240 VAC nominal)
Input Voltage (DC)
90–350 VDC (110 VDC nominal)
Input Phase
Single-phase AC or DC; Two-phase input capable
Input Frequency
50 / 60 Hz
Inrush Current (115 VAC)
2.4 A
Inrush Current (230 VAC)
1.3 A
Cooling Method
Natural convection (gravity)

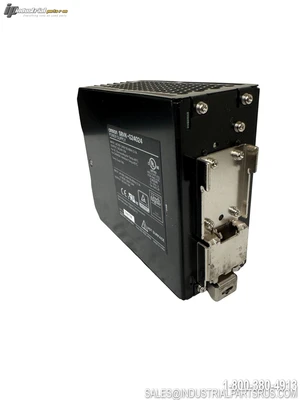

Mounting Type
DIN Rail
Dimensions (H × W × D)
125 × 60 × 150 mm
Connection Type
Screw terminal (rod terminal compatible)
Input Wire Size
20–10 AWG
Output Wire Size
14–10 AWG
Overload Protection
Yes – Automatic reset
Overvoltage Protection
Yes – 130% or higher of rated output; power shut-off
Parallel Operation
Yes – Up to 2 units
Series Operation
Yes – Up to 2 units
Output Indicator
Green LED (lights at ≥80–90% of rated voltage)
Output Voltage Adjustment
Yes – Potentiometer
Enclosure / IP Rating
IP20
Operating Temperature
-40°C to +70°C (derating required; no condensation/icing)
Certifications / Standards
UL 508, UL/EN 62368-1, CSA C22.2 No. 107.1, EN 50178, EN 60950-1, EN 60204-1 PELV, EN 61558-2-16, EN 61204-3 Class B (EMI/EMS), EN 55011 Class B, SEMI F47-0706, Lloyd's Marine
Number of Outputs
1
We warranty all items for 30 days from date of purchase.
