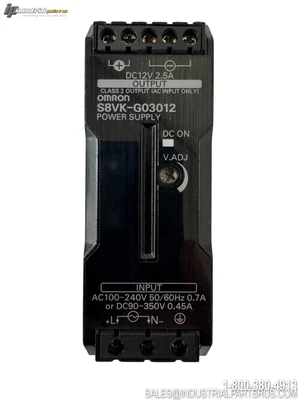

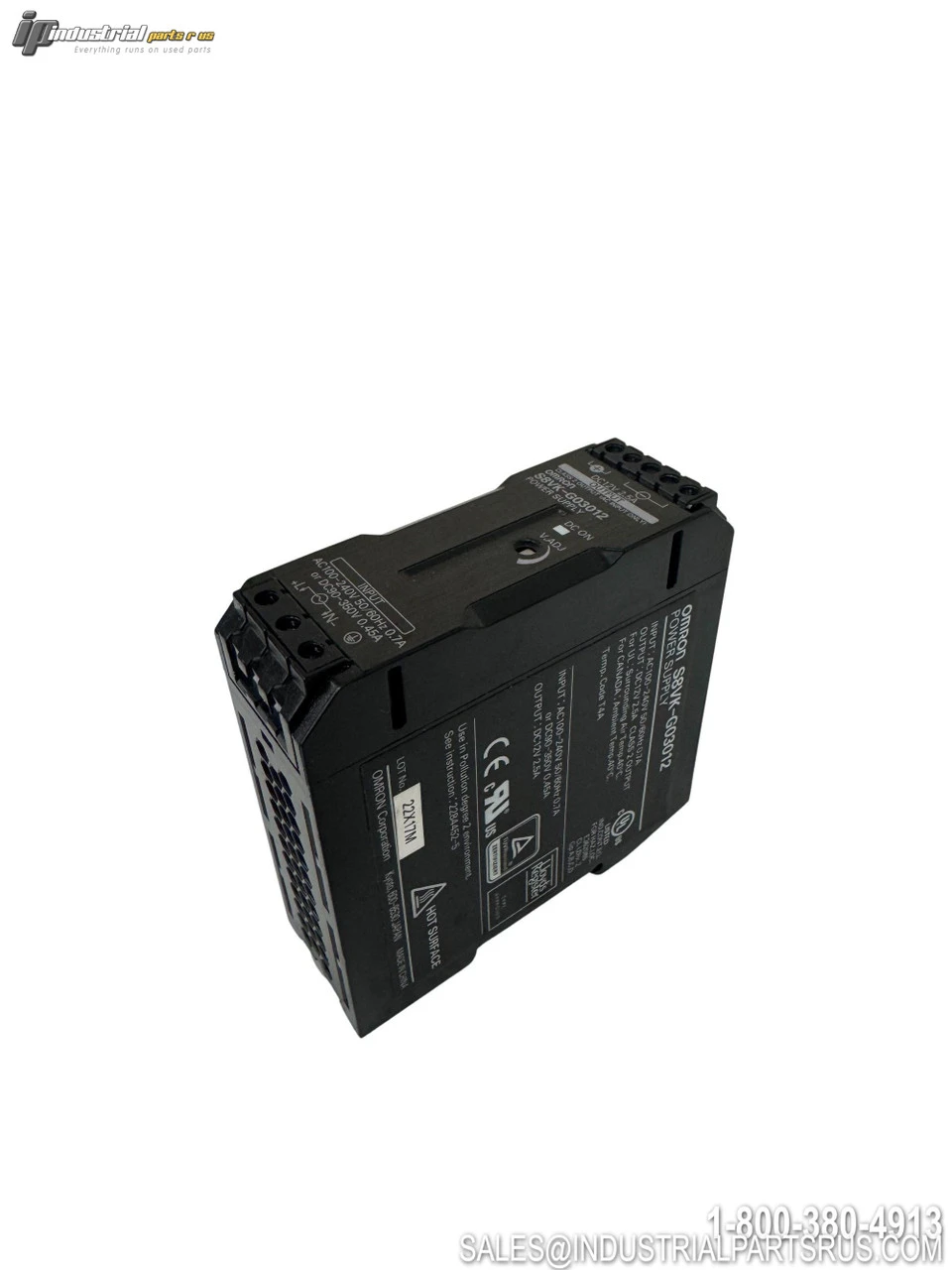

USED OMRON S8VK-G03012

The Omron S8VK-G03012 is a single-phase, DIN rail-mounted switch mode power supply (SMPS) from the S8VK-G series, designed for industrial automation and control panel applications. It delivers a regulated 12 VDC output at 2.5 A (30 W) and accepts a wide universal AC input range of 85–264 VAC or 90–350 VDC, making it suitable for worldwide deployment. Key features include a 120% output current power boost function, output voltage adjustability via trimmer potentiometer, convection cooling, a green LED DC output indicator, and compliance with UL508, UL Class 2, and multiple international safety standards.
Specification
Value
Brand
Omron
Model / Part Number
S8VK-G03012
Series
S8VK-G
Product Type
Switch Mode Power Supply (DIN Rail)
Output Voltage
12 VDC (adjustable)
Output Current (Rated)
2.5 A
Boost Output Current
3.0 A (120% of rated)
Output Power
30 W
Number of Outputs
1
Input Voltage (AC)
85–264 VAC (nominal 100–240 VAC)
Input Voltage (DC)
90–350 VDC
Input Current (AC)
0.7 A (at 100–240 VAC)
Input Current (DC)
0.45 A (at 90–350 VDC)
Input Phase
Single Phase (Two-Phase Input Capable)
Input Frequency
50 / 60 Hz
Efficiency
85% or higher
Enclosure / Protection Rating
IP20 (Enclosed)
Mounting Type
DIN Rail
Dimensions (W × H × D)
32 × 90 × 90 mm
Operating Temperature
-40 to +70°C (derating required above rated temp)
Wire Size (Input/Output)
AWG 20–12 / 0.5–4 mm²
Output Voltage Adjustment
Yes (trimmer potentiometer)
DC Output Indicator
Green LED
Overload Protection
Yes
Overvoltage Protection
Yes (130%+ rated voltage — power shut off, reset by cycling input)
Harmonic Current Suppression
Built-in
RoHS Compliant
Yes
Certifications / Standards
UL508, UL60950-1 (Class 2), CSA C22.2 No.107.1/60950-1, EN50178, EN60950-1, EN 60204-1 PELV, EN61558-2-16, EN61204-3 (EMS), EN61204-3 Class B (EMI)
We warranty all items for 30 days from date of purchase.
