USED BRIDGEPORT SERIES I
Overview

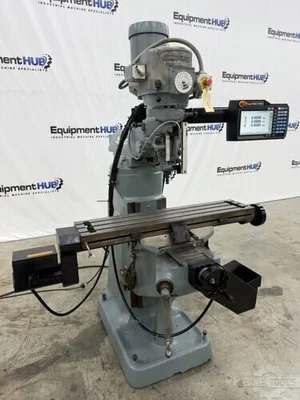

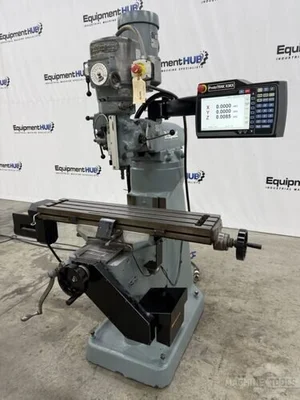

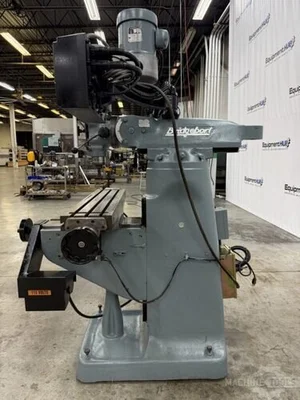

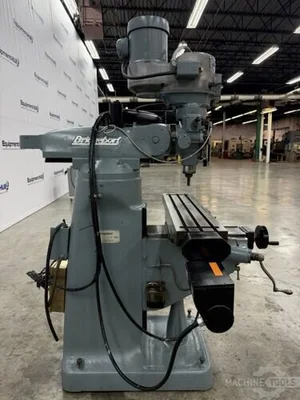

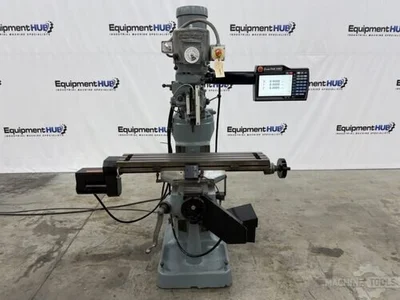

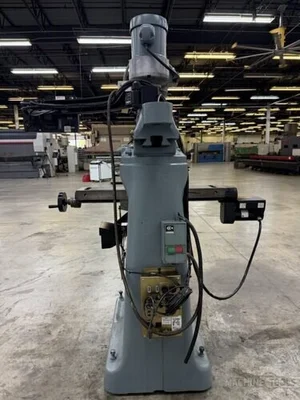

Bridgeport Series I 9" x 42" Vertical Milling Machine w/ Prototrak KMX CNC Controller(2022)
Specs
General Info
Stock #: 114250028
Location: Decatur, GA
Brand: Bridgeport
Model: Series I
Serial #: 176639
Approx. Shipping Weight: 4,500 Lbs.
Approx. Shipping Dimensions: 5'6" L x 5'6" W x 7'1" H
Skidding Fee: Skidding Unavailable
Specifications

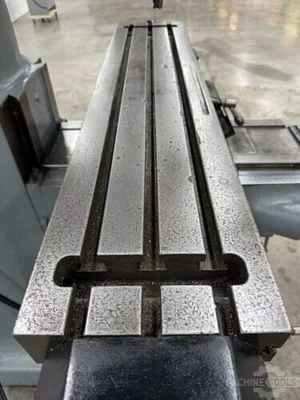

Table Size: 9" x 42"
Longitudinal Table Travel (X): 30"
Cross Table Travel (Y): 12"
Knee Vertical Travel (Z): 16"
Ram Travel: 15"
Spindle Quill Travel: 5"
Spindle Speeds: 60 – 4200 RPM

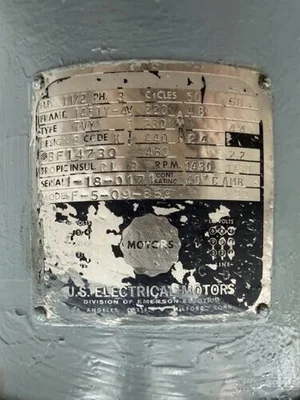

Spindle Motor HP: 1.5

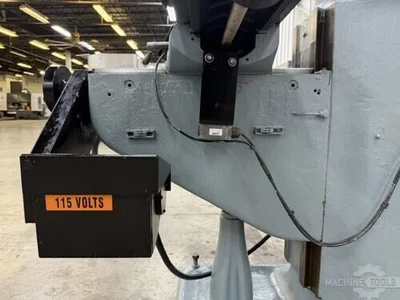

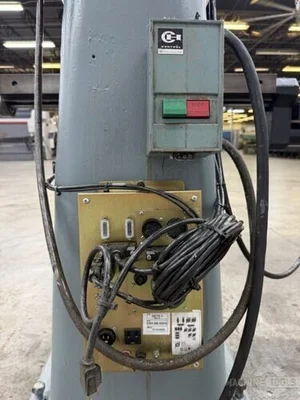

Electrical: 460V/3PH(Motor Head), 115V/1PH(Controller)
Equipped With

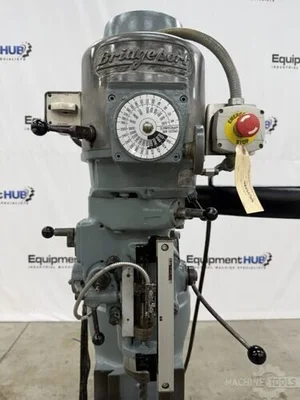

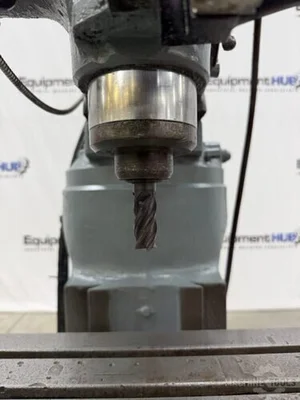

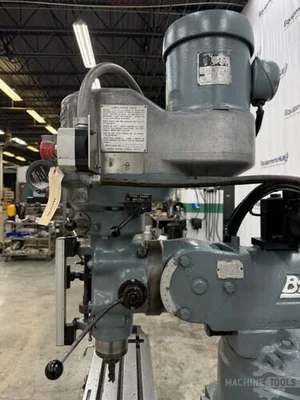

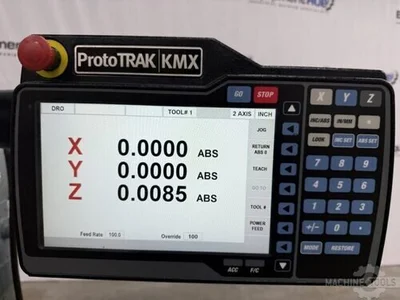

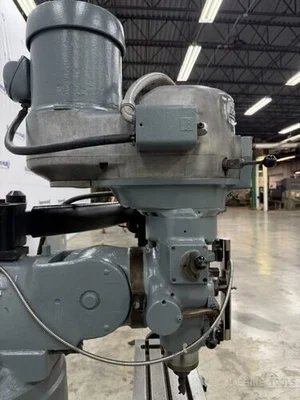

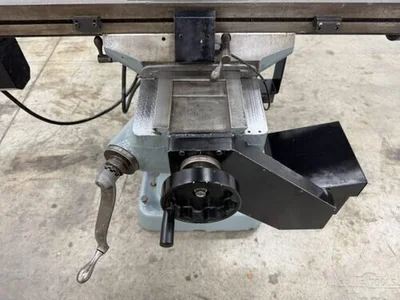

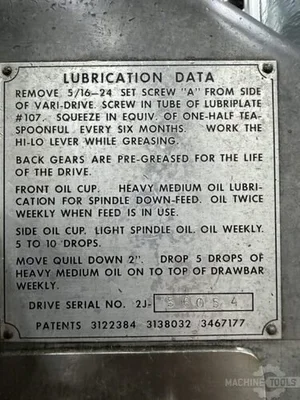

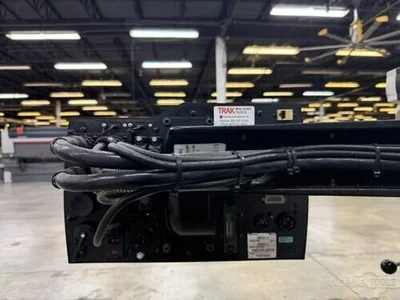

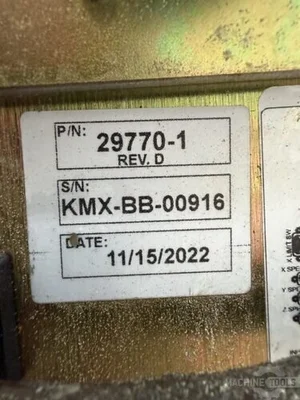

Prototrak Kmx 3-Axis CNC Control(S/N: Kmx-Pp-02750, Installed 10/2022), Servo Driven X & Y Axes, Variable Speed Head, R8 Spindle, Emergency Stop, One Shot Lubrication System
Additional Info
The Bridgeport Prototrak CNC Milling Machine can be demoed upon request. Check out the video on the listing to see it in operation.
